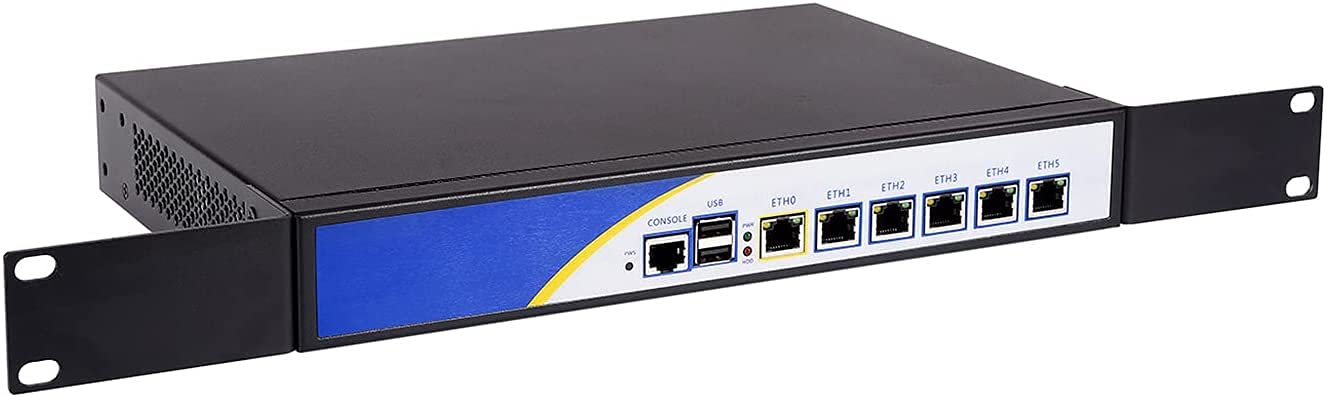

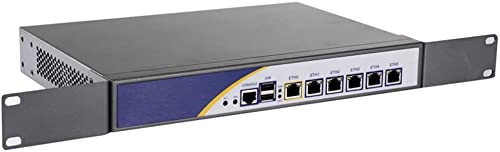

Firewall, OPNsense, VPN, Network Security Micro Appliance, Router PC, Intel Atom D525, 6 x Intel Gigabit LAN, COM, VGA, Fan, R3(4GB Ram 64GB SSD)

 .
• .
• CPU: This firewall appliance comes with Intel Atom Processor D525, 1M Cache, 1.80 GHz
• Memory & Storage: Support 1 x SODIMM DDR3, 1333MHz, Max 4G Ram, 1 x mSata SSD
• I/O Interface: Console, 2 x USB, 6 x LAN, VGA, Power Switch
• Network Card: 6 x intel 82583v/82574l/I211 10/100/1000m ethernet controller, the actual test traffic exceeds 1000m/s
• Application: Firewall, VPN, Network Server, Network Security, Router etc.

Model Number: Partaker R3
Type: D525 6 Ethenet (Desktop Type), With Fan Version
CPU: Intel D525 Dual Core 4 Threads 1.8G
AES-NI Supported: NO, If need support AES-NI, please visit our other items with Intel Core I3 I5 I7 or 3855U/3865U
Chipeset: Intel 82801JIR+Intel ICH8M Single Chipset
Memory: 1* SO DDR3, 1333MHz, Max. 4G RAM
HDD/SSD: 1* Msata SSD
Ethernet: Intel PCI-E 1000M 6*82583v/82574l/i211 (Good Performance, Less Heat, Stable)
COM YES
I/O Interface Console, 2 x USB, 6 x LAN, VGA, Power Switch
Chassis: Small desktop type (standard 13-19 inch 1u), rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 6 x intel 82583v/82574l/I211 10/100/1000m ethernet controller, the actual test traffic exceeds 1000m/s
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 200mbps to 250mbps
Power: 50w 12v 4.2a, 110-240v 50/60hz
Measurement: 310*210*50mm
Weight: 3.5KGs
System Support: Any FreeBSD based router systems, Linux distros, or Win. OS
firewalls tested with pfsense, untangle, opnsense and other popular open-source software solutions
ATTENTION: Barebone, Single RAM without any system; Other OS demand, Do need to leave us message on the order, thank you. 4 LAN, 6 LAN, 8 LAN, 10 Ports, Different CPU, 1U/2U RACK Mount, Desktop Type, all are available in our shop.
