JOINLGO 4-CH 1080P AHD Mobile Vehicle Car DVR Video Recorder Kit with Night Vision Waterproof Side Front Rear View Car Camera 7 inches IPSMonitor for Truck Van Bus

 .
• .
• 【EASY WIRING】: PLUG AND PLAY. Wiring via 4 pin connector, connector with waterproof rubber ring. Wired car camera system can get more stable video than wireless system when driving fast【HD-MI OUTPUT】It supports to connect with TV or monitor that with HD input. MDVR supports works with 2 monitors synchronously. 【USB】It supports to backup videos via USB slot. It can also connect a mouse via the USB slot.
• 【LOOP RECORD】: 4-CH 1080P (720P /960H/D1/CIF for selection) HD real time recording. Records camera feeds continuously, looping over oldest recordings when storage is full. Records onto two Memory cards – each with a 256GB capacity. This gives the DVR a total storage capacity of 512GB.(CARD NOT INCLUDED IN THIS KIT). 【PLAYBACK】Support playback videos on mdvr. We also provide a free PC software, which used to palyback recording videos on PC (only works on Windows PC, does not work on MAC))

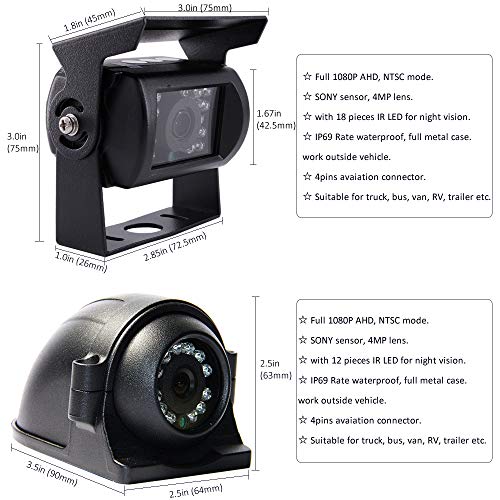

• 【EXCELLENT CAMERA】: PLEASE CHECK THE PICTURE FOR THE SIZE OF THE CAR CAMERA. IP69 Rate waterproof, can work in outside directly. 18 pieces IR LED for night vision. Full metal case material, Real 2.0MP resoluiton. IMX323 sensor + WDR Board, Excellent image quality in both day and night vision.【7″ Screen】with VGA+DC Connector. Screen resolution: 1024*600.【MIRROR IMAGE】It can mirror image on MDVR
• 【DELAY RECORDING】: Records footage while vehicle is off – up to 24 hours (draws power from vehicle’s battery).【G-sensor]】Recognizes sudden movements i.e. hard acceleration, sudden stops, speeding and impacts. Can set alerts to to keep these recordings as events.【4-CH ALARM INPUT】: It supports 4-CH alarm inputs, the screen will show full screen of one channel automatically when recieve the trigger signal. Manually create alarms so that associated footage is overwrite protected.
• 【Motion Detection】We TURN OFF the motion detection alarm in default, please turn on it if you need. The settings is in the OSD menu of MDVR. 【Warranty and Service】Security camera system boasts a durable and long lasting design. With well-experienced engineers and dedicated support team, we always standing by our side and ready to help you If you have any questions, please feel free to contact us. 2 Years Warranty, and life-time repairment service.

---

Product Description

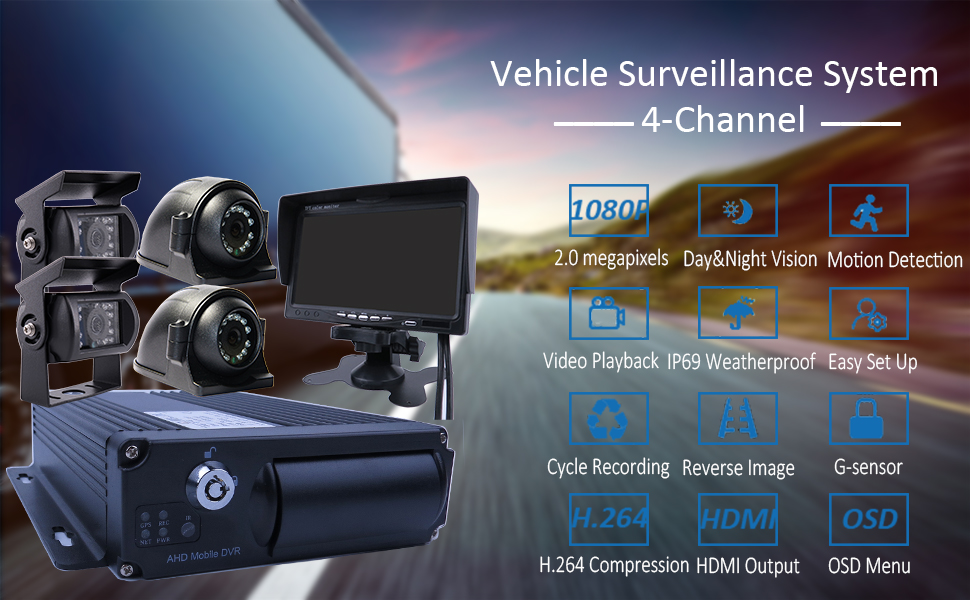

JOINLGO 1080P 4-CH Moible DVR Camera System

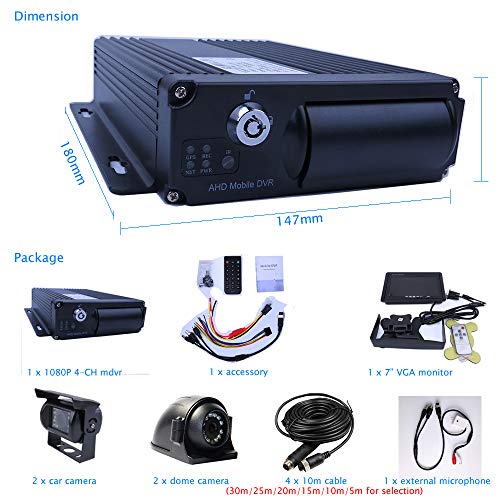

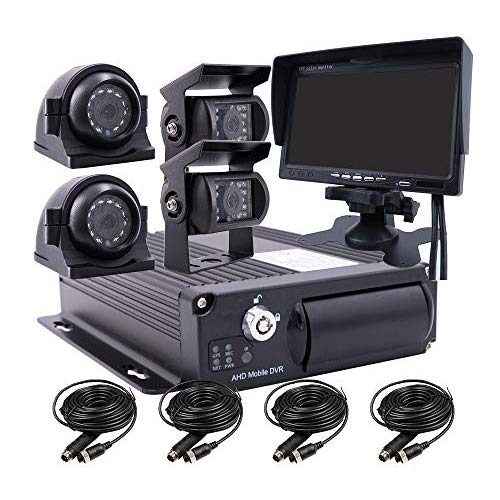

All-In-One Surveillance System Included:

• 1 x 4CH 1080P Mobile DVR.
• 4 x 1080P AHD NTSC mode car camera
• 2 x 33FT 4 pin cable, 1 x 16.5ft 4 pin cable, 1 x 50ft 4 pin cable.
• 1 x 7 inches IPS VGA car monitor.
• 1 x accessory for MDVR.
• 1 x User Manual
• Note 1: memory card NOT Included.
• Note 2: We have longer cable. (It needs to ship from China, takes about 4 working days)
• Note 3: We also have mini size car camera without IR light. shows color image in night vision. .
• Note 4: We have 10 inches monitor for selection.

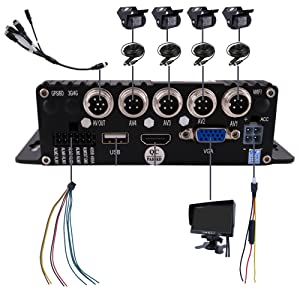

Hassle Free Connection

• Connect the car cameas with mdvr via 33 ft 4-pin connector cables. Power the MDVR via the car battery.
• Connect 7″ monitor with the MDVR via VGA connector. Power the monitor via the 12VDC output cable of MDVR.
• The stable and stream video will show up on the monitor. (If you want to remote on a smart device, you need to buy the MDVR with 4G or wifi module)
• Comes with 4 pieces 33ft cable. You can also buy 16ft/49ft/ 65ft cables as needed.

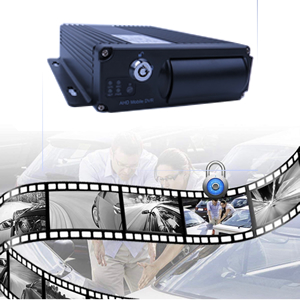

4-CH 1080P Loop Recording

• 4-channel 1080P AUDIO AND VIDEO loop recording. If set record resolution at 1080P. I will use 1.5G storage for one camera to record one hour. It also setup recording resolution at 720P/960H/D1/CIF to save space.
• With 2 memory card slot. each memory card slot supports maximum 256 GB card. Please lock the memory card door, or MDVR won't work.
• Convenient to palyback videos on mdvr.

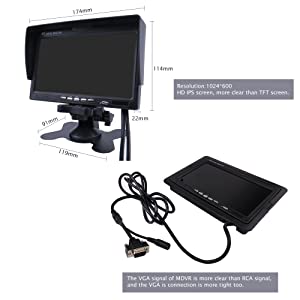

7″ HD IPS Monitor

• IPS screen. VGA connector. It can get clear image at any perspective.
• Resolution at 1024*600. It shows HD image at this screen. adjustable colorness and contrast.
• It can dash mount or flush mount. Easy to install.

Easy Mount

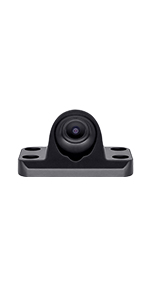

• Just drill a hole in your vehicle and adjust the angle of the lens to a suitable direction.
• Camera used high-quality metal materials, can effectively prevent rust, Can be installed outside vehicle. Default 120° wide view angle.

Easy Setup

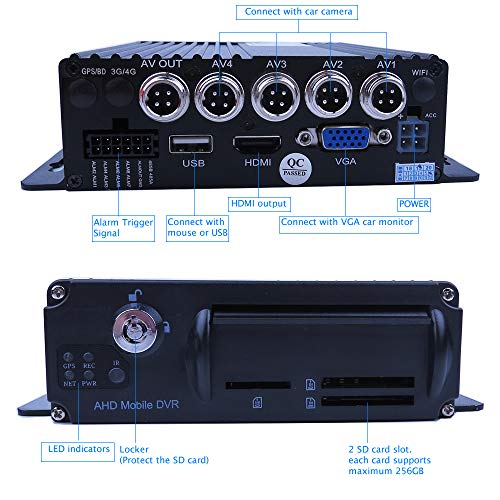

1080P Dual SD MDVR

7″ IPS VGA Screen

Easy Mount

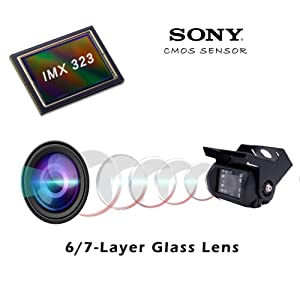

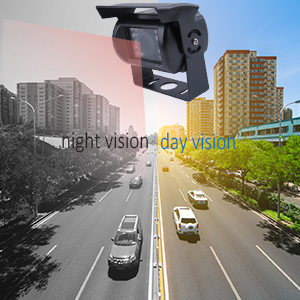

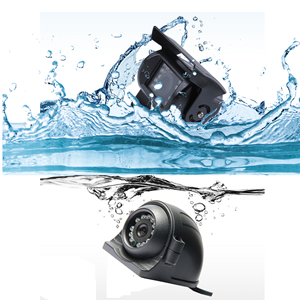

NIGHT VISION Featuring 2.8mm LEDs with IR-CUT function, 120° viewing angle, 50ft Night Vision range. The camera's infrared mode is automatically activated in low lighting conditions. It can clearly monitor everything even at night.	IP69 WATERPROOF CAMERA The AHD cameras are rated as dust tight and waterproof and cover with durable housing. Not afraid to brave the snow, rain, or heat. Car cameras' operating temperature can be ranged from -40°F to 122°F (-40°C to 50°C)	EXCELLENT CAMERA With brand sensor, and 6-layer HD lens. The camera gets the best quality 1080P video. Good quality chip that have better WDR function. it can get clear image at any illumination.

Read more

G-SENSOR Built-in G-sensor module.Recognizes sudden movements i.e. hard acceleration, sudden stops, speeding and impacts. MDVR will save video automatically when an accident happens.	I/O ALARM The DVR supports 4-CH I/O inputs and 1 alarm output. It can set those inputs to record vehicle backing, turning left/right, door openning and more. Also, they can be simply used as a panic button, or work with other external sensors to trigger recording or send out alarm signal to external device.	MOTION DETECTION The DVR software supports motion detection. It does not need extra motion detectio sensor. The motion detection alarm is TURNED OFF IN DEFAULT. If you need this function, please enter menu to turn on this alarm. MDVR will automatically save videos and output alarm when detects an alarm. If you connect a device with the alarm output cable, it will active this device.

Read more

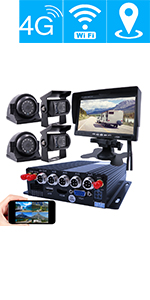

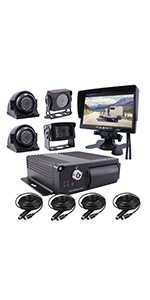

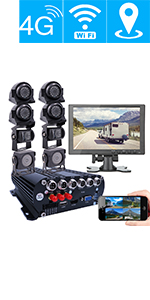

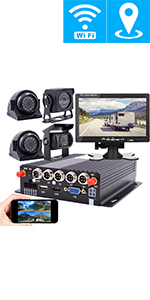

	H.265 4-CH MDVR KIT	8-CH 4G GPS WIFI HDD MDVR KIT	WIFI GPS HDD MDVR KIT	WIFI GPS SD MDVR Kit	4G GPS WIFI SD MDVR KIT	1080P camera
Resolution	Resolution	1080P	1080P	1080P	1080P	1080P
Record	✓	✓	✓	✓	✓
GPS		✓	✓	✓	✓
Storage	2 piece 256GB SD	1 x 2TB HDD/SSD and 2 piece 512GB SD	1 x 2TB HDD/SSD and 2 piece 512GB SD	2 piece 512GB SD	2 piece 512GB SD
HDMI		✓	✓	✓	✓
WIFI		✓	✓	✓	✓
Remote Live View		✓	✓	✓	✓
4G LTE		✓			✓
Screen Size	7″	10.1″	7″	7″	7″
