Pf-sense Mini PC 6 Lan i225 2.5Gbe NICs, Celeron J4125, 8GB
Pf-sense Mini PC 6 Lan i225 2.5Gbe NICs, Celeron J4125, 8GB DDR4 RAM 128GB mSATA SSD, HD-MI, RS232 COM, USB, Mini PCI E Wifi, Small Computer, Router server, AES-NI, PXE, Firewall Micro Appliance
- .
- .

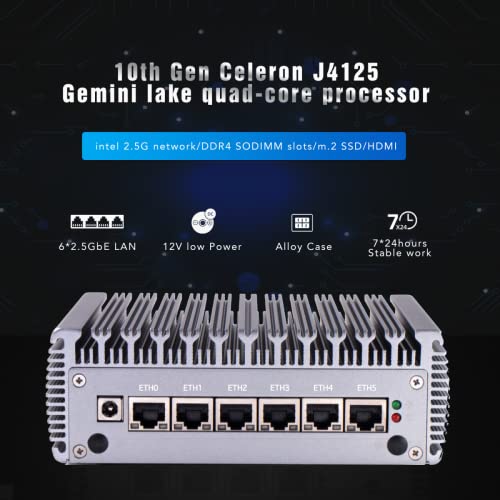

- 【 Celeron J4125 and OS 】 Firewall Appliance Mini PC is Equipped with Celeron J4125(Quad Cores Quad Threads, 2.00GHz up to 2.70GHz, 4MB Cache, UHD Graphics 600), pre-installed Pf-sense(also support windows / OPNsense / ROS / Proxmox, If need other, pls just leave us a message).
- 【 RAM / Stroage on board 】 Mini Router PC has 1 * DDR4 RAM slot on board, and 1 * mSATA SSD + 1 * 2.5inch SATA 3.0 SSD/HDD stroage slots onboard, (suggest to choose brand RAM / SSD to avoid compatiable issue).

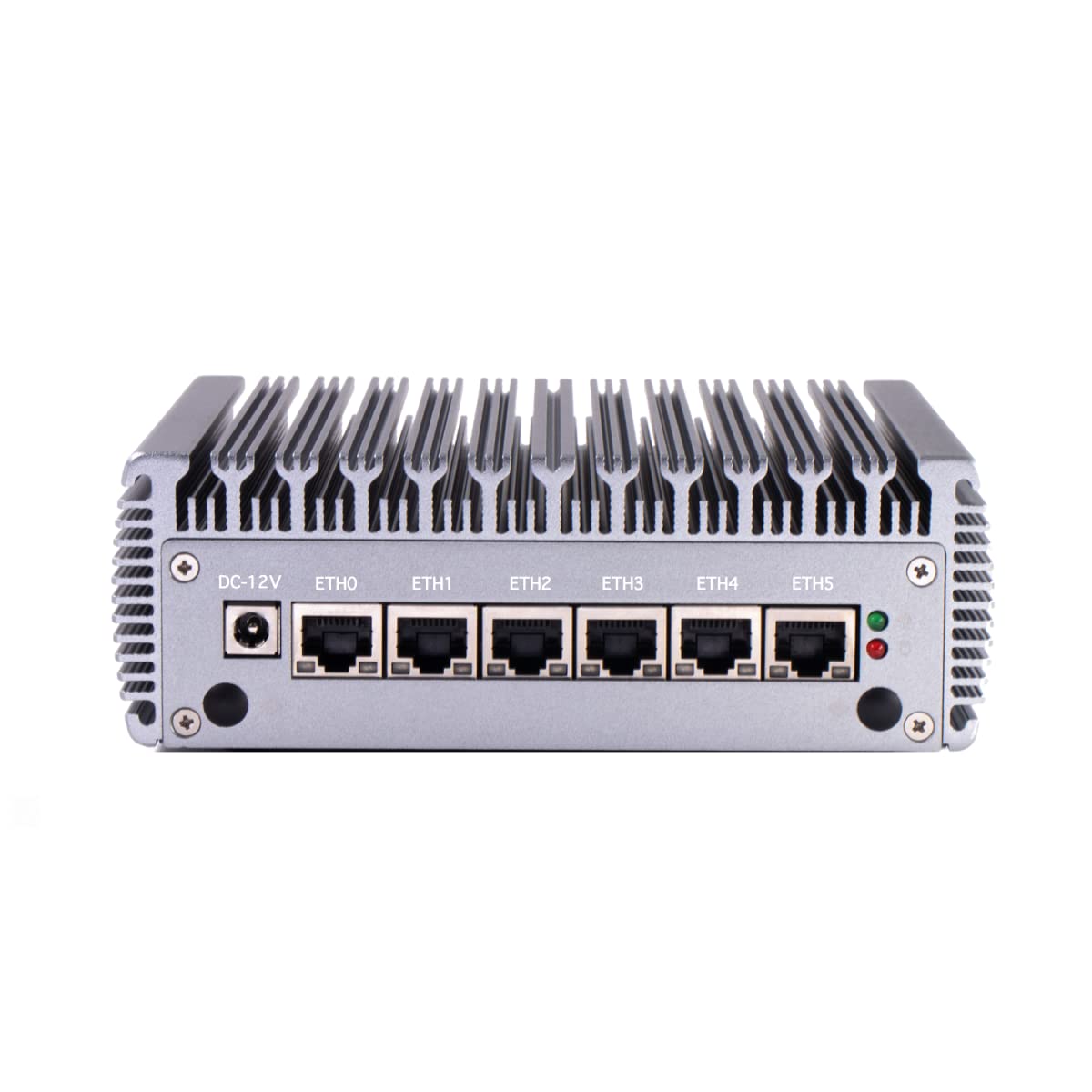

- 【 Inte Ethernet I225-V 2.5GbE 】 This Firewall Router equipped with 6 * I225 Network card Suppot 2.5GbE, bring you more faster and professional network usage.
- 【Professional Firewall PC】VENOEN 6 Firewall Mini PC a fanless & silent professional firewall router pc bring you a secured and encrypted network environment.Multi-functional support AES-NI, Auto power on, RTC, PXE boot, Wake-on-LAN.
- 【 Warranty and Package 】If you have any questions on VENOEN Firewall mini pc, feel free to contact us . We offered 2-Year warranty and technical support; The package includes 1*Mini PC, Power Adapter, HD-MI cable, VESA Mount, DIN RAIL Mount.
| SKU: | B0B84T8VQR |
| Weight: | 4.69 pounds |

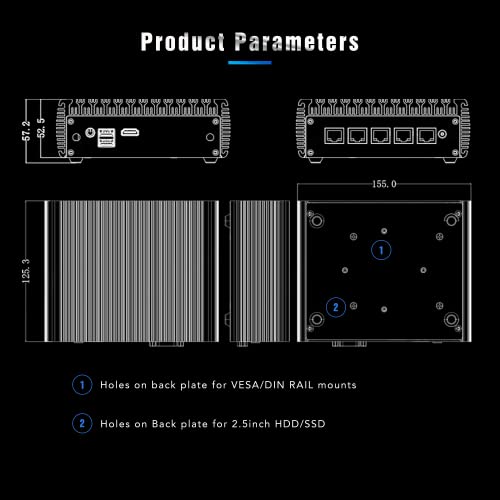

| Dimensions: | 6.1 x 4.92 x 2.28 inches |
| Brand: | VENOEN |
| Colour: | Celeron J4125 6 2.5Gbe Lan |
| Batteries Included: | 1 Lithium Metal batteries required. (included) |
| Colour: | Celeron J4125 6 2.5Gbe Lan |
Product Description
Fanless Pf-sense Firewall Small PC Highlight
System introduction:
- Pre-installed pf-sense operating system and also support Windows 10, Linux, CentOS, OPNSense, RouterOS, X86 OpenWrt, Untangle Panabit and other popular open source software solutions.
6 Network Ports:
- 6 x 2.5GbE i225 Network Ports, Support AES-NI
SIM Card Slot onboard:
- Support 4G WiFi network connection: mini computer motherboard supports SIM card slot, 3G & 4G WiFi network, internet access from anywhere (4G module not included as standard).
Abundant functions:
- Support Wake on LAN, Auto power on 7×24 hours working etc.
Specification
| Memory | 2* DDR4 RAM Slot onboard, MAX 32GB RAM |
| Stroage | 1* mSATA SSD + 1* 2.5inch SATA HDD slots onboard |
| Wireless | Mini PCI E Wifi slot + SIM Slot onboard,Support wifi / 3G / 4G Model (3 choose 1) |

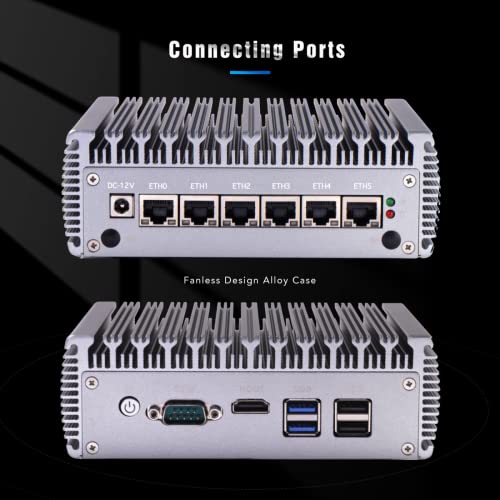

| Lan | 6* i225-v Lan 2.5G network card |
| Display | 1* HD-MI Port |
| USB Port | 2* USB3.0 + 2* USB2.0 |
| Series port | 1* COM Port |
| Function | PXE, Watch Dog, Auto Power on ect. |
Packing list: 1* Venoen Mini PC, 1* Power adapter, 1* HD-MI Cable, 1* SATA Cable, VESA Mount, DIN RAIL Mount.

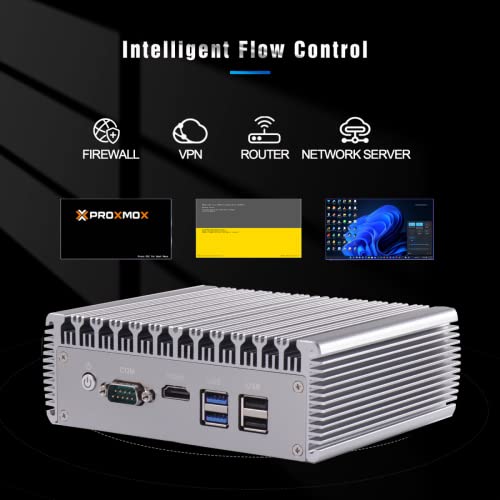

This appliance can be configured as a firewall, LAN or WAN router, DHCP Server, DNS Server, and office computer, soft routing, virtualization, VPN Router, Firewall Appliance, thin client, edge computing, visual inspection, industrial control, cloud server etc.
Service:
1. We provide a full one-year service and Support online.
2. All the mini pc and accessories have been tested well before delivery.
 |  |  | |  | |
|---|---|---|---|---|---|
| Firewall Router Mini PC 6 I225-V 2.5Gbe Lan pf-sense | Pf-sense Mini Router PC 4 I225-V 2.5Gbe Lan | Firewall Mini PC Core i5 7267U 6 i211/210 lan | Industrial Mini PC Celeron 3865U 6 RJ45 Gigabit Lan | Fanless Mini PC Dual Lan RS232 COM | |
| CPU | Celeron j4125 | Celeron j4125 | Core i5 7267U | Celeron 3865U | Celeron j4125 |
| Configuration | 8GB RAM 128GB SSD | 8GB RAM 128GB SSD | 8GB RAM 128GB SSD | 8GB RAM 256GB SSD | 16GB RAM 256GB SSD |
| Ethernet | 6* I225-V 2.5Gbe Lan | 4* I225-V 2.5Gbe Lan | 6* I211/i210 Gbe Lan | 6* I211/i210 Gbe Lan | 2* i211/i210 Gbe Lan |
| System | Pf-sense | Pf-sense | Windows 10 pro | Windows 10 pro | Windows 10 pro |
| SIM | ✓ | ✓ | ✓ | ✓ | |
| AES-NI | ✓ | ✓ | ✓ | ✓ |
