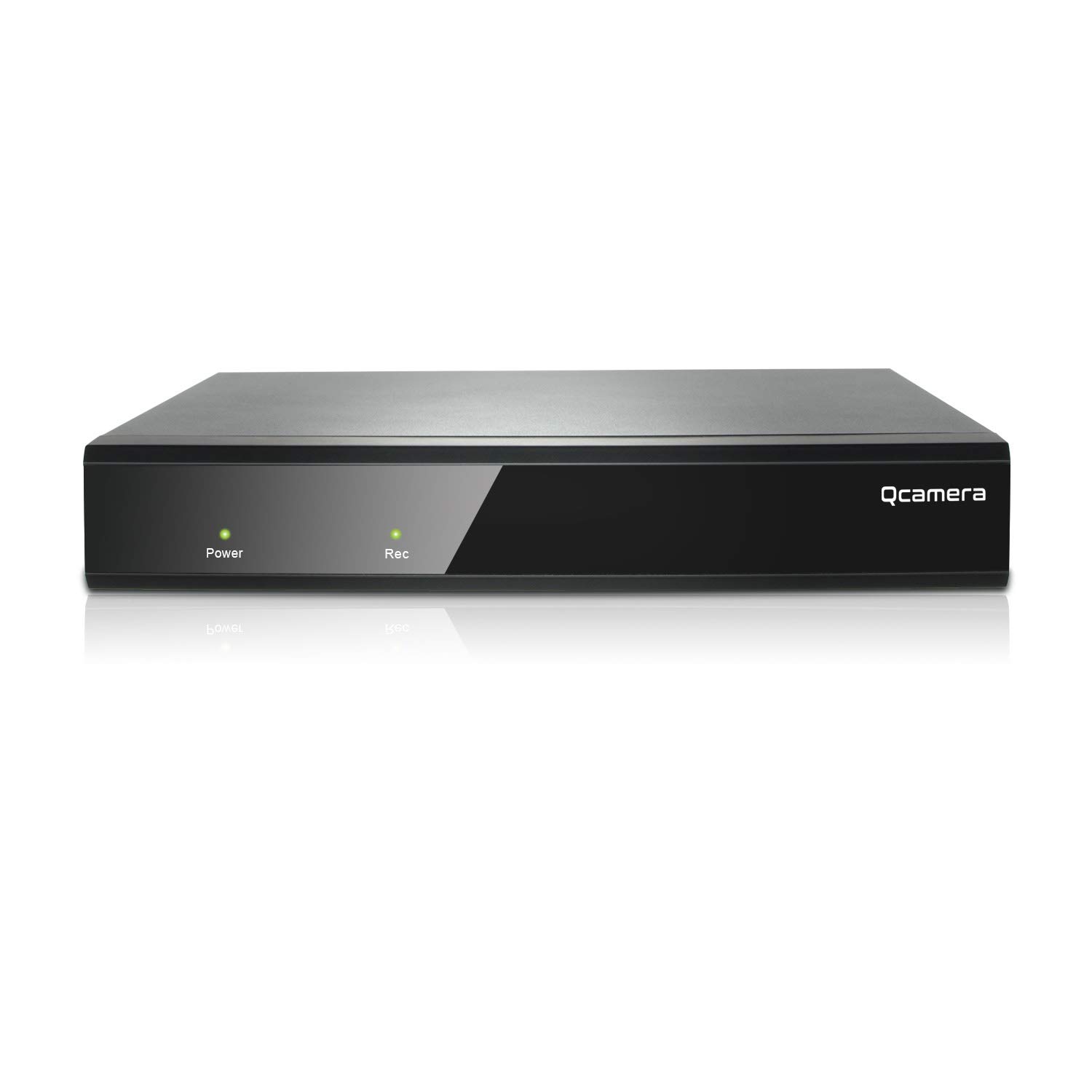

Q-camera 16CH 5M-N/1080N DVR Full High Definition Hybrid AHD/TVI/CVI/Analog/IP H.265 CCTV Digital Video Recorder P2P Remote Phone Monitoring for Home Security Surveillance System Camera(NO Hard Disk)

 .
• .
• 【5 in 1 Security Hybird DVR】This 16 Channel 5M-N/1080N hybrid digital video recorders system is compatible 5MP/4MP/1080P AHD/ 1MP/2MP TVI/ 1MP/2MP CVI/IP/960H CVBS Camera. When it connects to 5MP/4MP/3MP/2MP Cameras, resolution equals to 1080N. Only use cameras of equal or lower resolution.–If DVR connected cameras and shows in black and white.Please try to change DVR mode to CVI or contact us for help
• 【5M-N/1080N Full HD Video】1280X1920 Super High Definition Video, super high definition video to see every detail, equipped with HDMI/VGA port for multi video output. Using advanced H.265 video compression technology, it helps deliver much smoother video recordings and saves your HDD space
• 【P2P Quick Remote Access】Surveillance DVR allows you to view the live streaming or playback video remotely by your phone and pad (Android & IOS). Just need connect to the internet and scan the DVR unique QR code to download free Xmeye app
• 【Motion Detection & Instant Alert】When movements are detected, it will be recorded, you will receive email alerts with snapshot upon motion detection or App alert once you set. Easily record and playback on your mobile devices anywhere and anytime. In addition, you could use DVR to customize the detection area according to your requirement
• 【NO Hard Disk】An internal hard disk drive is required; it can’t record or playback without hard drive. Please buy the hard drive separately, this DVR does not include hard drive and remote control

This 5M-N/1080N 5-in-1 H.265 DVR supports 5MP/4MP/3MP/2MP/1MP AHD/ 1MP/2MP TVI/ 1MP/2MP CVI/CVBS/XVI and IP Cameras. When it connects to 5MP/4MP/3MP/2MP Cameras, resolution equals to 1080N
Specification:

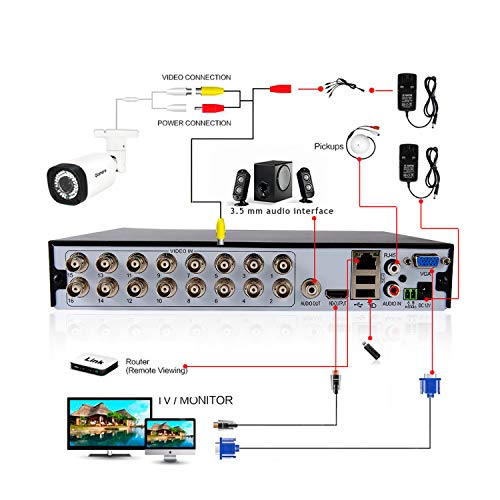

Video input: 16ch BNC input
HDMI/VGA output: Support up to 1080P
Audio input/output: 2CH/1CH RCA
Resolution (1280X1920)
Menu Display:1/4/8/16 Screen
Video compression standard: H.265
Preview quality: 16*5M-N@12fps(6 in 1)；16*4M-N@15fps(6 in 1)；16*1080N(6 in 1)
Record Resolution&Frame: 16*5M-N@8fps(6 in 1)；16*4M-N@8fps(6 in 1)；16*1080N@15fps(6 in 1)
Playback quality: 8*5M-N@8fps(6 in 1)；16*4M-N@8fps(6 in 1)； 16*1080N@15fps(6 in 1)
Record Mode: Manual, alarm, motion detection, timing
Back up mode: Network, USB portable HDD,USB DVD-RW
1xSATA HDD interface(Max 6TB)
1xRJ-45 10M/100Mbps Network interface
2xUSB 2.0 interface
1xRS485 for PTZ

One DVR,Multi Input Modes:
DVR mode: 16*5M-N
Hybrid mode: 16CH 5M-N AHD + 4CH 1080P IP
NVR mode: 16CH 1080P; 8CH 5M

Software:
PC:CMS,VMS
Mobile:XMeye Pro free APP
Cloud website:www.xmeye.net

Note:
1. For safety purpose, please set DVR password when you first log in
2.Any technical questions please contact us before refund.


Package:
1xHybrid DVR(No Hard Disk)
1xPower Supply
1xMouse
1xManual
