AALGO Wind Turbine Solar Hybrid Charge System

AALGO Wind Turbine Solar Hybrid Charge System 3000W-8000W,MPPT Charge Controller,12V/24V/48V Battery Off Grid Controller,Wind Turbine,Solar Panel,Regulator,Unloader,48V-8000W

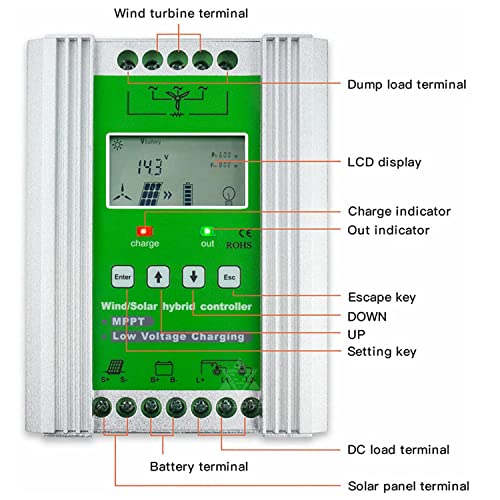

• 【LCD display】The display screen of the wind-solar hybrid controller adopts a color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation settings are more convenient
• 【Excellent performance】The fan charging adopts MPPT control algorithm to ensure MPPT charging at low wind speed. Fan three-stage charging mode: MPPT charging-boost charging-floating charging. Photovoltaic three-stage charging mode: CC constant current-boost charging-floating charging
• 【Independent boost circuit】12V/24V/48V battery system automatic recognition, lead-acid battery, ternary lithium battery, lithium iron phosphate, custom four battery types charging mode selection

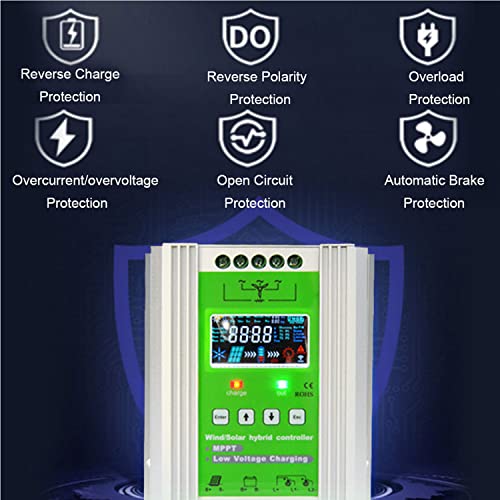

• 【Voltage automatic detection】The wind-solar hybrid charging controller has comprehensive protection functions such as overcharge, overdischarge, and overload; the controller has multiple load control modes, the load has two outputs, and the output power and time can be set; the controller has wide adaptability , strong adaptability to day and night

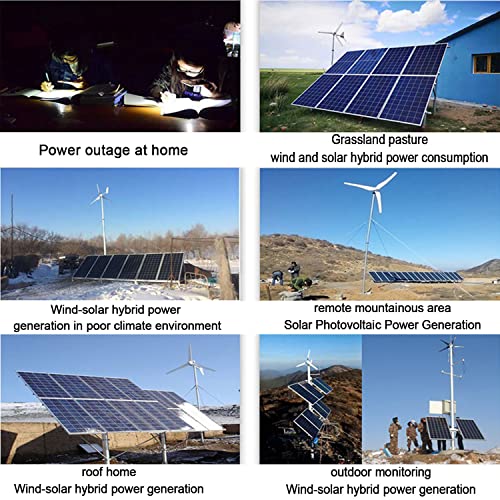

• 【Application field】Used in solar off-grid system, automatic control of charge and discharge. Wind-solar hybrid system for residential, marine and street lights

LCD Wind and Solar Complementary System MPPT Charge Controller Household Wind Turbine Controller 12V 24V 48V Household Lighting Equipment Automatic Controller

Specification:
Project type: MPPT wind and solar hybrid controller
Material: aluminum alloy
Rated voltage: 12V/24V/48V
Controller power: 3000W, 5000W, 6000W, 8000W

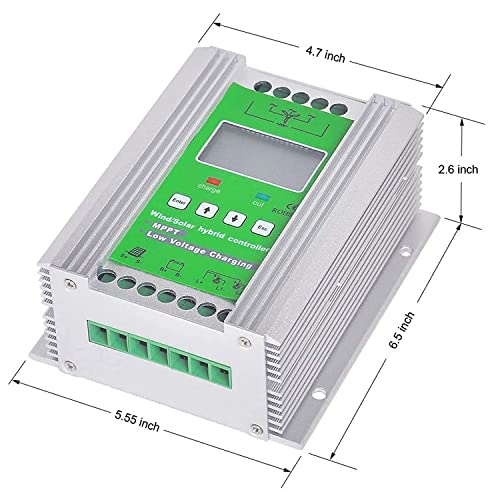

Controller size: 165 x 140 x 66mm
Control mode: MPPT fan boost charging function, PWM discharge function, PWM over-current limiting function
Display parameters: voltage, battery power, current, power, charging mode, temperature, etc., some parameters can be set.
A variety of working modes are optional: pure light control mode, normal open mode, light control + time control mode (four time periods + morning light)
Applicable wind generator types: horizontal wind generator, vertical wind generator, AC wind generator, DC wind generator.

Feature:
>Fan charging, intelligent MPPT boost regulation
>PWM fan stepless discharge, external discharge device, solar intelligent separation charging
>Controller dual power supply function: battery + solar power supply
>A variety of load output working modes are adjustable
>High performance and stable chip control
>The internal circuit board of the controller is sprayed with three anti-paints, dust-proof, moisture-proof and anti-static

packing list:
1 x wind and solar hybrid controller
1 x external discharge resistor
1 x instruction manual

notes:
⚠ Do not plug or unplug the power adapter with wet hands;
⚠ When connecting, you need to pay attention to the precautions of different connection methods;
⚠ If you have any questions or suggestions, please do not hesitate to contact us, we will contact you as soon as possible and provide you with a quality solution.
