EPEVER BLE Adapter Accessories for MPPT Solar Charge

EPEVER BLE Adapter Accessories for MPPT Solar Charge Controller (EPEVER-BLE-RJ45-D)

• EPEVER BLE Adapter Accessories for MPPT solar charge controller

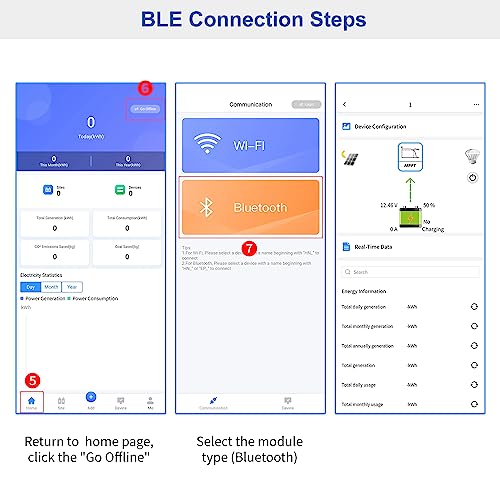

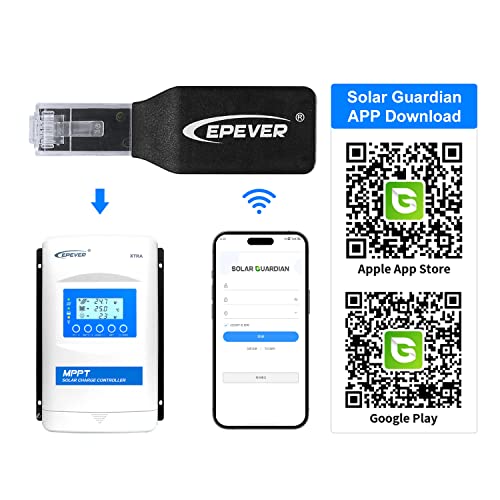

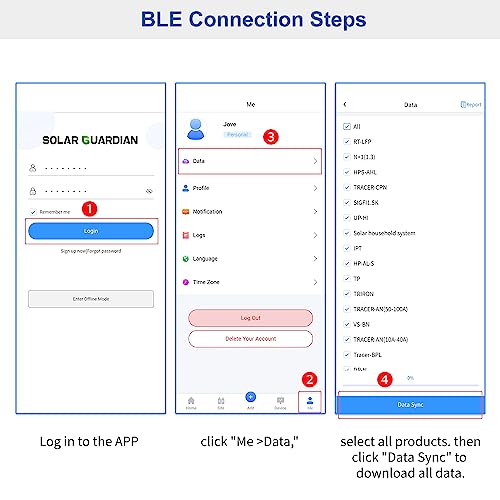

• Support communication via phone APP ,Support data encryption
• Use immediately after connecting; easy and convenient operation,Feature fast communication and strong anti-interference ability
• Directly powered by the communication port, Up to 10 meters of communication distance

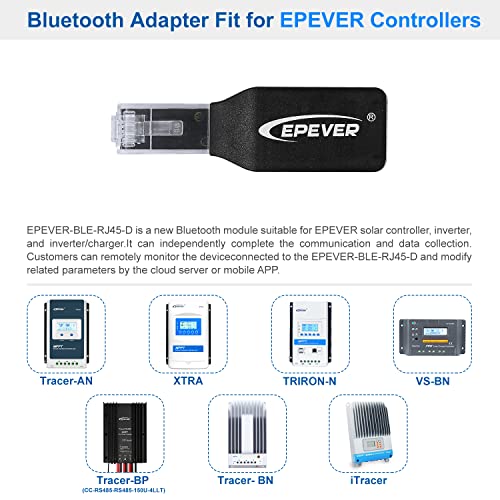

EPEVER BLE Adapter Accessories for MPPT solar charge controller, Adopting the Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, EPEVER BLE RJ45 D enables data collection, communication, and wireless monitoring of connected devices.

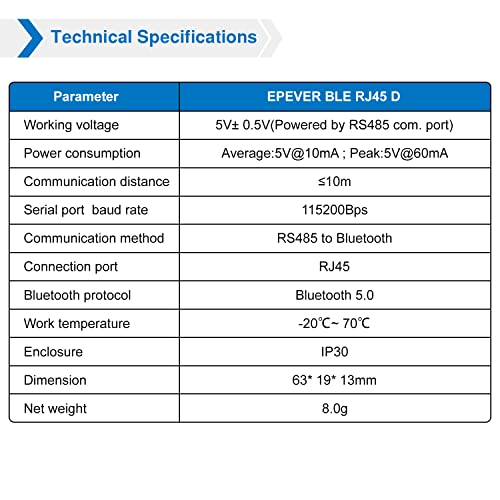

Parameter :
Model: EPEVER BLE RJ45 D
Working voltage: 5V± 0.5V (Powered by RJ45 port)
Power consumption Average: 5V@10mA; Peak: 5V@60mA
Communication distance ≤ 10m
Serial port baud rate: 115200bps
Communication method: RS485 to Bluetooth
Connection port: RJ45
Bluetooth protocol: Bluetooth 5.0
Dimension: (L x W x H) 63mm x 19mm x 13.8mm
Work temperature: -20℃~70℃
Enclosure: IP30
Net Weight: 8.0g

*Thanks for selecting the EPEVER BLE RJ45 D Bluetooth module, please read this manual carefully before using the product.
*Do not install the product in humid, salt spray, corrosion, greasy, flammable, explosive, dust accumulative, or other severe environments.
