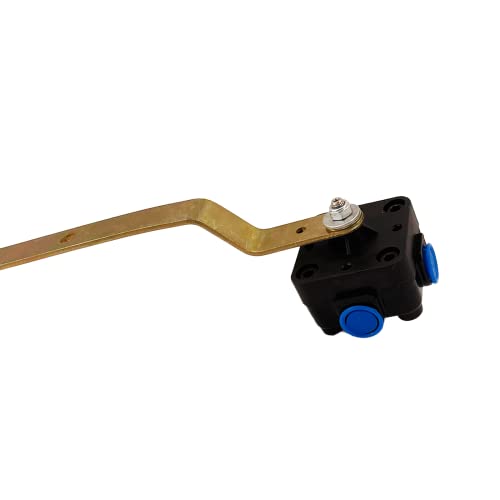

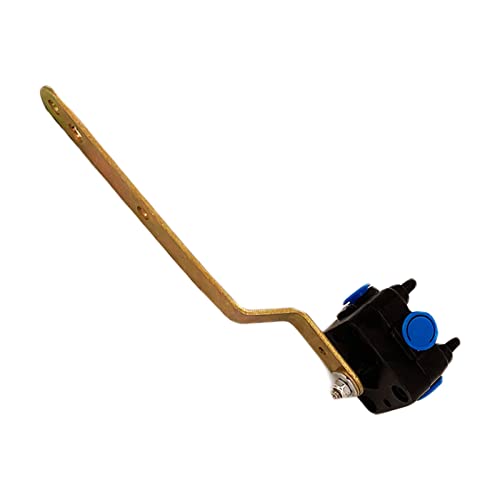

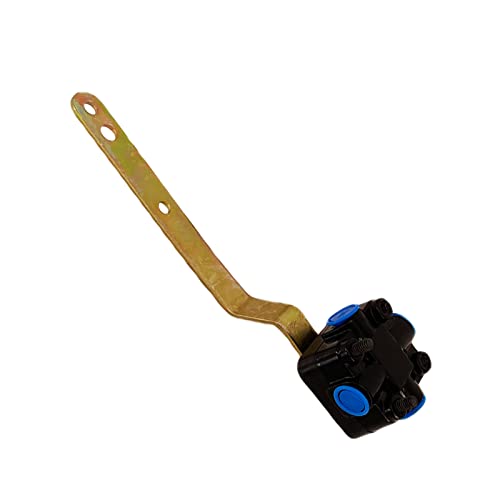

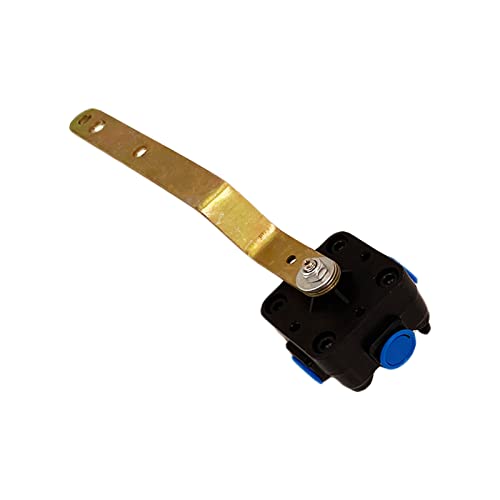

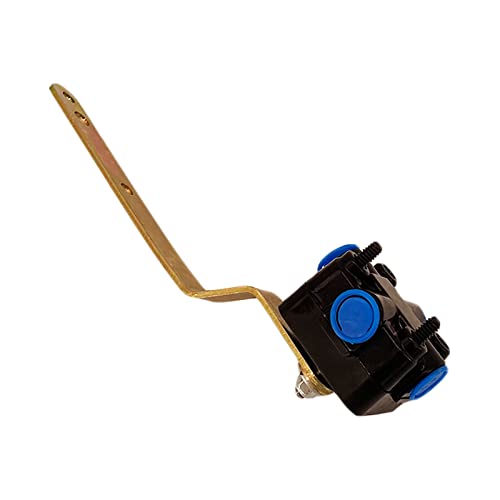

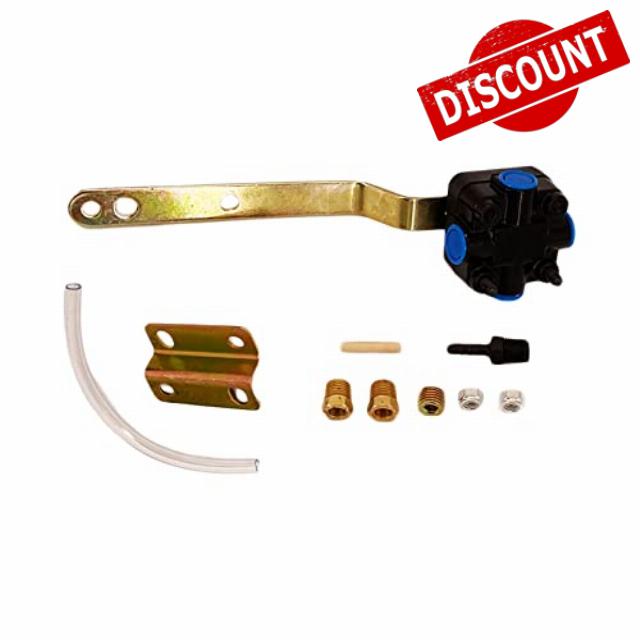

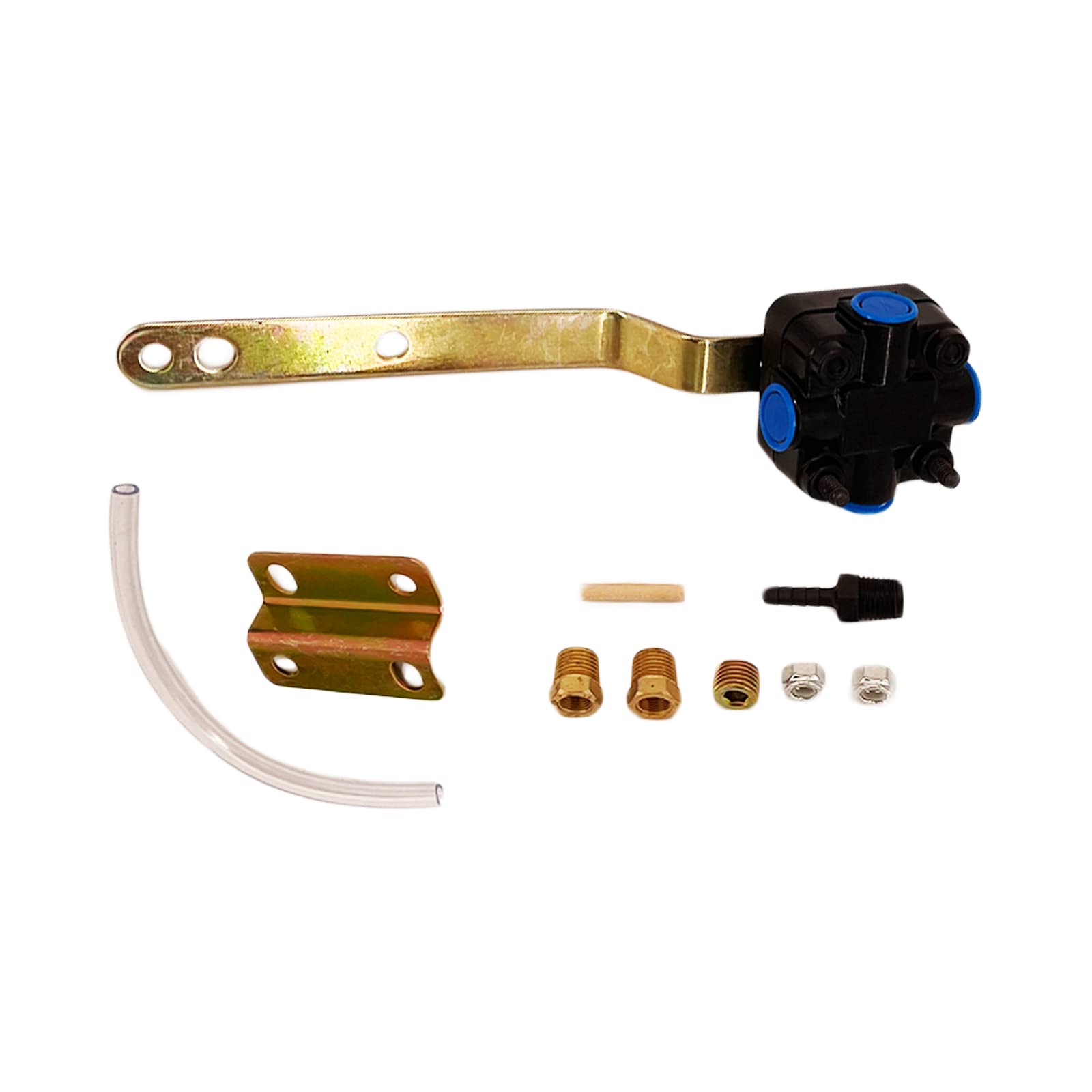

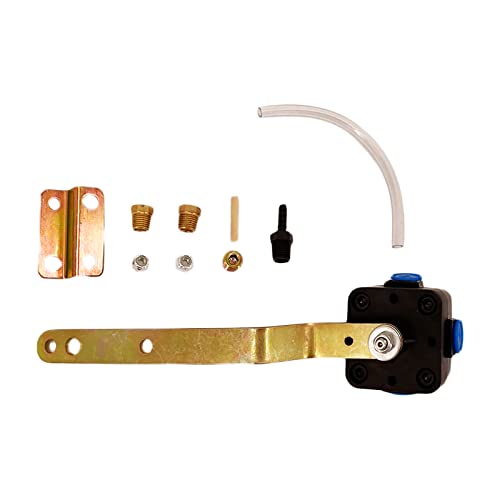

Fudatong Air Standard Leveling Height Control Valve Kit

Fudatong Air Standard Leveling Height Control Valve Kit for Neway Trailer Air Suspensions Replacement# VS-227 53321-Q120 KD2204

• REPLACE PART NUMBER: 50433001, 60826000, E11494, HTSVS227, 53321-Q120, 90054007, KD2204
• COMPATIBLE WITH: Most vehicles, hendrickson suspension applications, 1980's through current neway trailer air suspensions.
• INSTALLATION: When not exceeding the maximum movement angle of 45 °, the length ratio l / a should be <= 1.2. the length l should be between 175 and 295 mm. If a shorter yaw is used, the height valve will generate a large air consumption. Neway suspensions will have to be measured from the bottom of the frame to the center of the axle because they have an 8 1/2″, 10 1/2″ and 17 1/2″ hanger height.
• HIGH QUALITY: Made of high-quality material for long-lasting durability, the brand new Air Standard Leveling Height Control Valve Kit provides you a professional OE style, meet or exceed all original equipment performance.
• FEATURES: Max Working Pressure: 1.2Mpa; Mounting Hole Centre: 38mm.

Features: 100% brand new
Color: Black
Product Grade: Replacement Part

Replace OE part number:50433001, 60826000, E11494, HTSVS227, 53321-Q120, 90054007, KD2204
Max Working Pressure: 1.2Mpa
Mounting Hole Centre: 38mm
Compatible with the following:
Replacement for most vehicles, hendrickson suspension applications, 1980’s through current neway trailer air suspensions.
Installation Recommendations: When not exceeding the maximum movement angle of 45 °, the length ratio l / a should be
