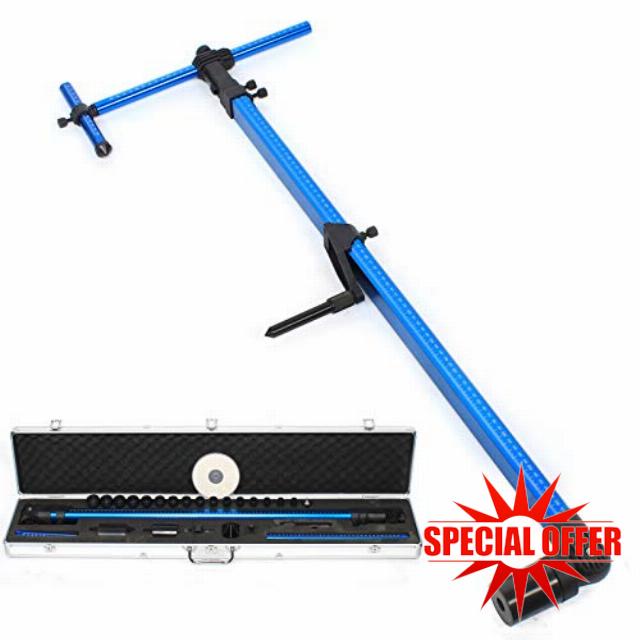

Cutycaty Universal 2D Measuring System High Precision Car

Cutycaty Universal 2D Measuring System High Precision Car Body Frame Machine Tram Gauge Frame Machine Tools for Auto Body Frame Repair Machinery Maintenance

[High Precision]: In order to improve the accuracy and convenience of detection and measurement in accident vehicle maintenance, a high precision measuring ruler is designed and manufactured. High precision two-dimensional measurement system is an economical and practical point-to-point measurement too.
[High Quality Material]: Telescopic measuring device adopts aluminum alloy material, high measuring accuracy, simple operation. It can also take three-dimensional measurements with an adapter, which is site and device free.
[Lightweight]: One person can complete the measurement independently. 3D measurements can also be made through adapter connectors.
[Basic Parameter]: Product size (including aluminum box):102×20×10cm/ 40.15×7.87×3.9 .X axis :200mm~2250mm/ 7.87-88.6", y axis :20mm~150mm(or 340mm)/0.8-5.9" or 13.4", z axis :20mm~150mm(or 340mm)/0.8-5.9" or 13.4"."

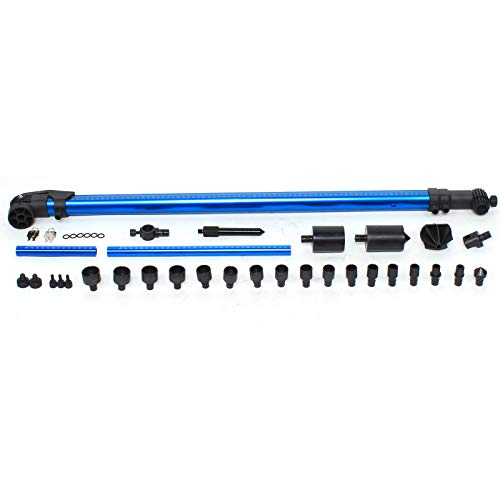

[Widely Used]: It widely used in construction, mechanical maintenance and other fields. Package includes: main scale, 20-150mm scale, 20-340mm scale, Screw thread probe, Magnetic probe, Magnetic probe and lengthen base, 3D adapter, Large positioning probe, Longitudinal positioning probe, Small probe, Size nut probe, English manual.

Check Offer Price

Specification:

Product size (with aluminum box): 102×20×10cm/ 40.15×7.87×3.9″

Material: Aluminum alloy

Color: Blue-black

Measuring range, X axis: 200mm~2250mm/ 7.87-88.6″

Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9″ OR 13.4″

Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9″ OR 13.4″

Package size: 104×20×10cm/ 41×7.87×3.9″

Gross weight: 3.8kg

Note:

1. Please read the instructions before use to ensure that the measuring rule can be used correctly.
