HYS Low Profile Speaker Microphone with Heavy Duty

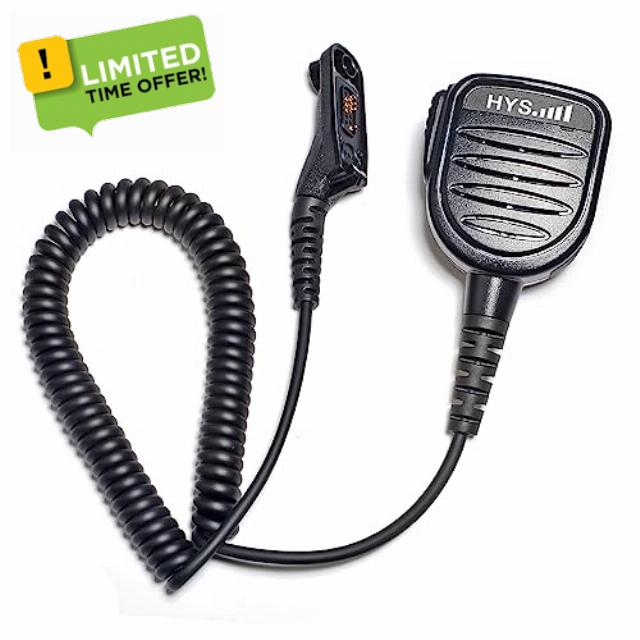

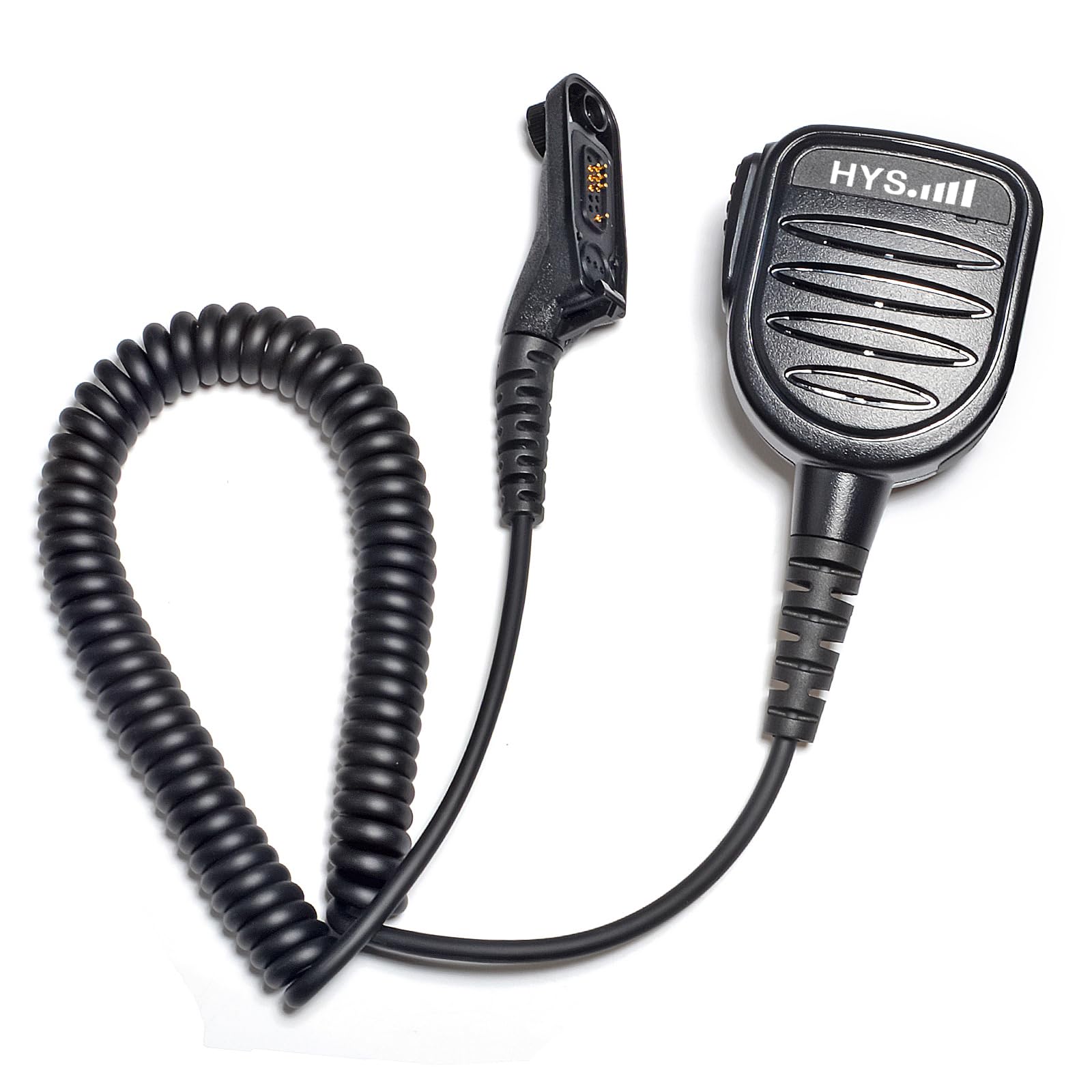

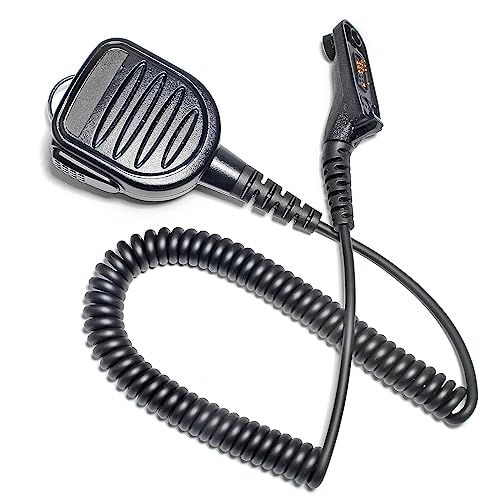

HYS Low Profile Speaker Microphone with Heavy Duty Cable/Clip, Shoulder Speaker Mic with Durable Outer Casing for Motorola APX4000 APX6000 APX7000 XPR6350 XPR6550 XPR7350 XPR7550 Two-Way Radio

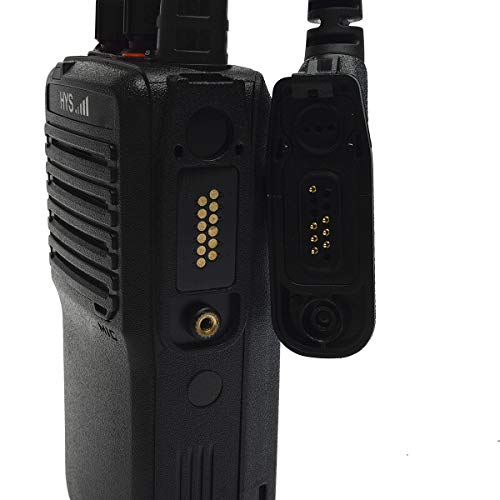

• Shoulder Speaker Mic with PTT Compatible with Motorola Multiple-Pin, working for XPR6300, XPR6350, XPR6380, XPR6500, XPR6500, XPR6550, XPR6580, XPR7350, XPR7550, XiRP8200, XiRP8208, XiRP8260, XiRP8268, APX4000, APX4000 P25, APX6000, APX6000 P25, APX6000XE P25, APX7000, APX7000XE P25, DGP4150, DGP4150+, DGP6150, DGP6150+, DP3400, DP3401, DP3600, DP3601, DP4800, DP4801 ( Reference Image and Radio Model description) .
• Durable design,Heavy duty cable, Durable outer casing protects against blowing rain to ensure transmission clarity. Classic design with high-performance, omni-directional microphone;

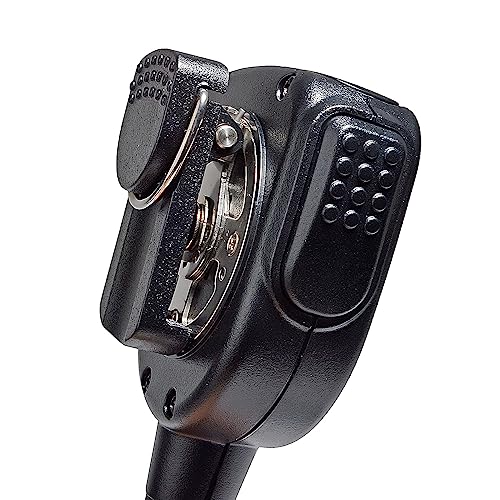

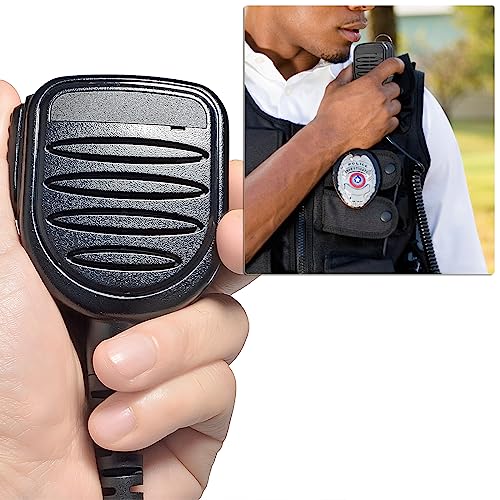

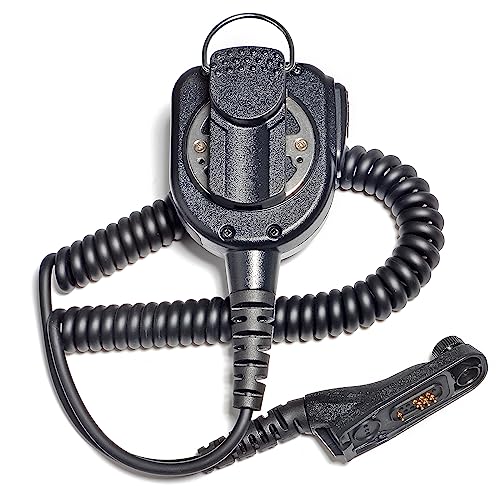

• Strong rotatable metal clip has eight positions. Solidstrongand durable cable. (Spiral and Straight) PU Cable Reinforced by Kevlar Long-Life Design. The microphone may be secured to the users lapel or shoulder; Comfortable holding.
• Microphone Sensitivity -40dB±4dB(1kHz @1Pa); Speaker Sensitivity 115±4dB (AT: 0.179V 1KHz 1CM 20uPa) IEC 318; 3.5mm accessory jack for use with earphones for loud environments or discreet communications Clip detent stops every 45° to allow for preciseand secure placement.

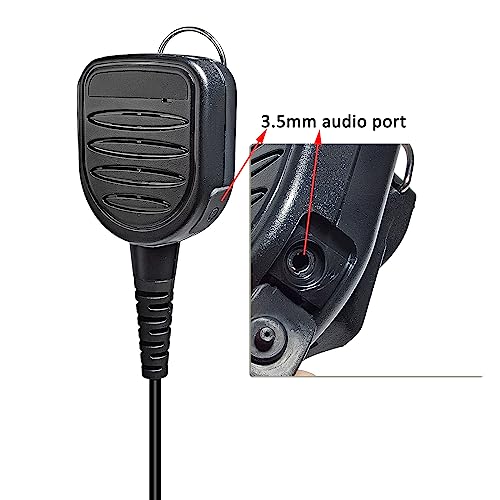

• Attached 3.5mm earphone jack on microphone. 3.5mm Audio Jack(Not includes Listen only earpiece): Speaker Mic has a 3.5mm jack this earphone will click into it providing you with the ability to securely hear broadcasts without everyone else in the area over hearing. (HYS 3.5mm Listen Only Acoustic Tube (B01M9C31OR) and G shape Earpiece (B01FD6SKJS) perfect for Shoulder Microphone.)

Microphone Performance

Dimensions 6.0*2.7mm

Frequency 100～10KHz

Distortion 1000Hz≤5%

Impedance ≤ 2.2k Ohm

Sensitivity -40dB±4dB（1kHz @1Pa）

SNR ≥58dB

Speaker Performance

Dimensions: 45mm

Frequency 100～10KHz 4.3.4

Distortion 1000Hz≤5%

Rated Input Power 2W

Max. Input Power2.5W

Limit power 3W

Impedance 16 Ohms±15%

Sensitivity 115±4dB （AT: 0.179V 1KHz 1CM 20uPa）IEC 318

For USA Motorola Motorola Multi-Pin Connector:

APX P25 Series: APX900, APX1000, APX1000i, APX2000, APX3000, APX4000, APX4000XH, APX5000, APX6000, APX6000XE, APX7000, APX7000XE, APX7000L, SRX2200

DP3400, DP3401, DP3600, DP3601, DP4400, DP4401, DP4401EX (Ma/M1), DP4600, DP4601, DP4800, DP4801, DP4801EX (Ma/M1), DP4400e, DP4401e, DP4600e, DP4601e, DP4800e, DP4801e

XPR6000 Series: XPR6100, XPR6300, XPR6350, XPR6380, XPR6500, XPR6550, XPR6580 XPR7000 XPR7000e Series: XPR7350, XPR7380, XPR7550, XPR7580, XPR7350e, XPR7380e, XPR7550e, XPR7580e, XPR7550 IS

For Global Motorola

DGR Series: DGP4150, DGP4150+,DGP6150, DGP6150+ DGP5000 DGP5000e Series: DGP5050, DGP5050e, DGP5550, DGP5550e DGP8000 DGP8000e Series: DGP8050, DGP8050e, DGP8050EX, DGP8550, DGP8550e, DGP8550EX

XiR P8200, XiR P8208, XiR P8268, XiR P8600, XiR P8608, XiR P8620, XiR P8628, XiR P8660, XiR P8600i, XiR P8608i, XiR P8620i, XiR P8660i, XiR P8600EX, XiR P8608 EX, XiR P8668EX

TETRA Terminal: MTP830S, MTP850S, MTP6550, MTP6750, MTP6000, ATEX MTP8500EX, ATEX MTP8550EX
