ISEEVY 4K60 HDMI USB UHD Video Wall Controller 2×2 1×2 2×1 1×3 3×1 1×4 4×1 TV Wall Controller for max 4 TVs Splicing Display with HDMI 2.0 and USB Inputs Support Play max 4096×2160@60 Video Picture

• Maximum support 3840*2160@60Hz/4096×2160@60Hz HDMI input to realize real 4K UHD Display
• Support USB disk access and play max 3840*2160@60Hz/4096×2160@60Hz Video (MP4, AVI, MKV, TS, MOV, WMV), Audio (MP3, WMA, WAV, FLAC), Picture (JPEG, JPG, PNG)

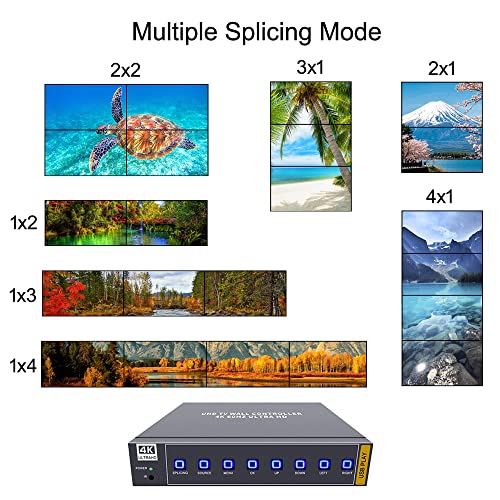

• With 4 HDMI outputs, it supports 2×2, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1 splice modes for max 4 TVs splicing display. It also supports multiple devices cascade connection for max 20 TVs 4×5 splicing display.

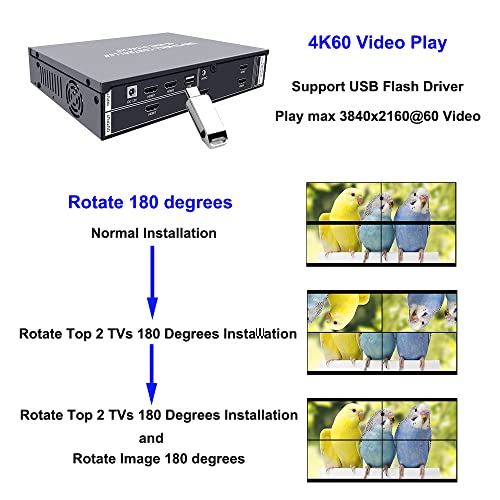

• Each output ports can be setup to rotate image 180 degrees for Inverted TV installation
• Support setup image brightness, contrast, saturation and sharpness parameters, you can also crop the image as you want

Overview

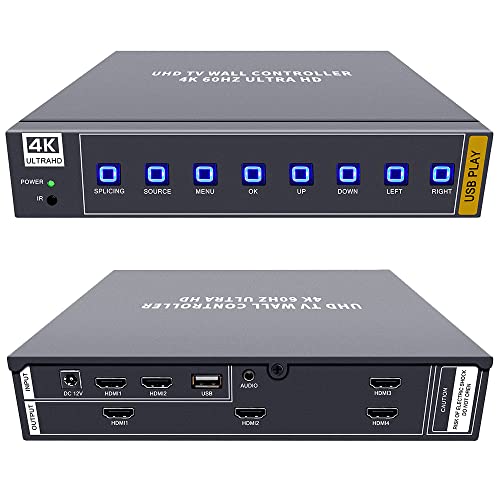

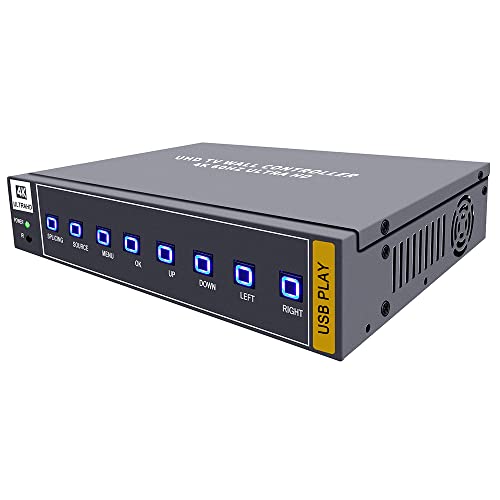

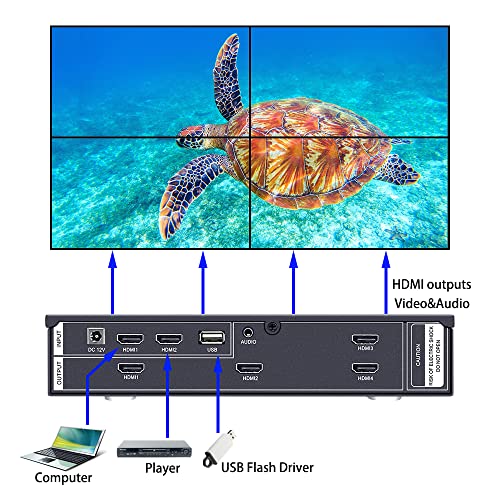

The video wall controller is a professional video wall processor to realize multiple TVs/Screens splicing display. It supports 2x HDMI 2.0 and 1x USB 2.0 input, max input resolution can reach 3840*2160@60Hz or 4096×2160@60Hz. You can play max 3840*2160@60Hz/4096×2160@60Hz Video (MP4, AVI, MKV, TS, MOV, WMV), Audio (MP3, WMA, WAV, FLAC), Picture (JPEG, JPG, PNG) files by access USB flash driver

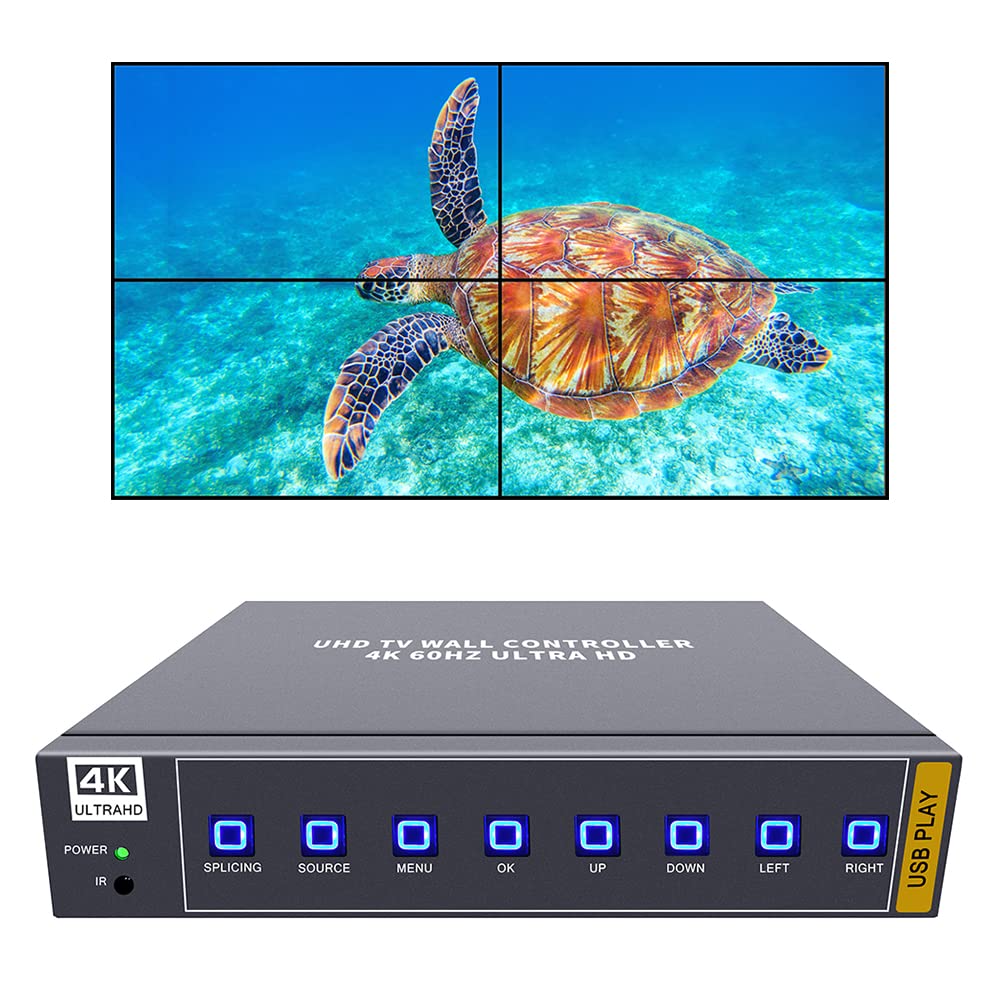

With 4 HDMI outputs, each output resolution is 1920*1080P*60Hz, it can work with max 4 TVs for 2×2, 1×2, 1×3, 1×4, 2×1, 3×1, 4×1 splicing display.

Specifications

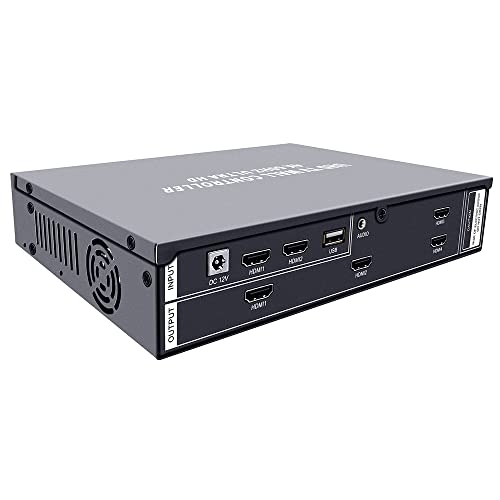

Inputs
HDMI 1
HDMI 1.4, built-in audio, 640*480 to 3840*2160@60Hz/4096×2160@60Hz resolution
HDMI 2
HDMI 2.0, built-in audio, 640*480 to 3840*2160@60Hz/4096×2160@60Hz resolution
USB
USB 2.0, support play max 3840*2160@60Hz/4096×2160@60Hz Video (MP4, AVI, MKV, TS, MOV, WMV), Audio (MP3, WMA, WAV, FLAC), Picture (JPEG, JPG, PNG)

Outputs
Video Outputs
4 channels HDMI outputs, each channel output resolution is fixed to 1920×1080@60Hz
Audio Outputs
4x HDMI built-in audio outputs, 1x 3.5mm audio output port, left and right channel stereo
Display
Splice Mode
2×2, 1×2, 2×1, 1×3, 3×1, 1×4, 4×1, max 4×5 (cascade connection)
Rotate Image
Rotate 180 degrees
Other Functions
Configure image/sound parameters, crop image, edge mask, reset

Others
Control
Remote, buttons
Power Supply
DC12V 3A
Size
210mm*160mm*45mm
Weight
1.38kg
