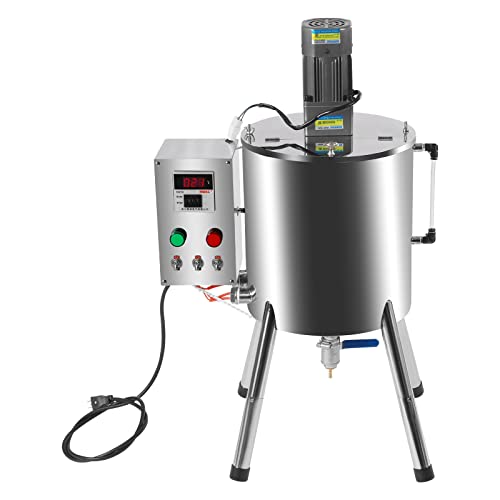

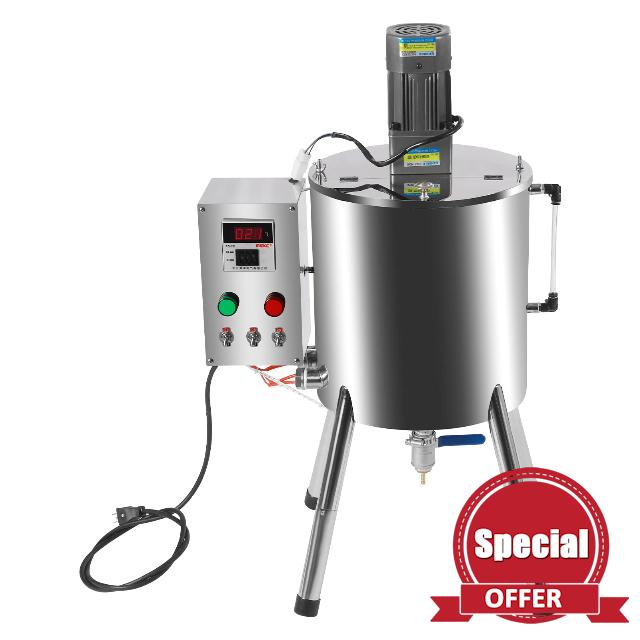

Paste Liquid Filling Machine Lipstick Filling Machine

Paste Liquid Filling Machine Lipstick Filling Machine Heating Mixing Filling Machine Candle Heat Filler Stirring Tank Cream Liquid Filler (15L/4Gal)

• 【Premium Material】Heat-resistant high-quality 304 stainless steel plate (thickness 0.08 inch) will not react with the material, ensuring the purity of filling. Stainless steel discharge nozzle with a C-shaped heating tube and ball valve control realizes constant temperature heating and manual control of discharge throughout the process, which can effectively prevent leakage and curing.
• 【Uniform Stirring & Heating】Powerful pure copper motor (max. speed 36rpm, power 60 watts), T-shaped paddle, and double industrial grade heating tubes (0.75kw*2) provide uniform and efficient stirring and heating for the material, which makes the filling more smooth and efficient.
• 【High Efficiency】4 gallons capacity, excellent heating (1.5kw), and stirring (60w) nature easily achieves efficient filling of 20-45 bottles per minute, which will greatly save time and effort.

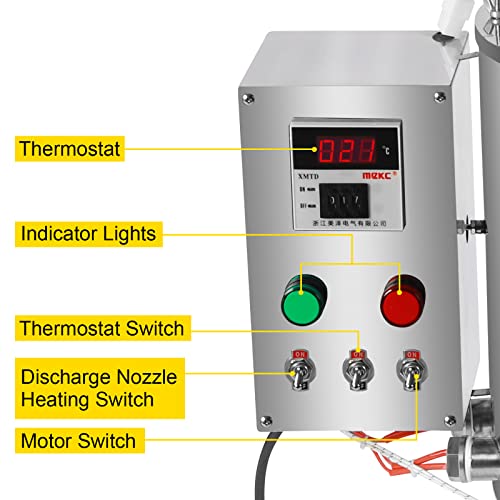

• 【Easy to Operate】The panel with temperature control, indicator light, valve heating switch, stirring switch, chamber heating switch, and temperature display allows you easily and orderly control different modules to achieve efficient filling.

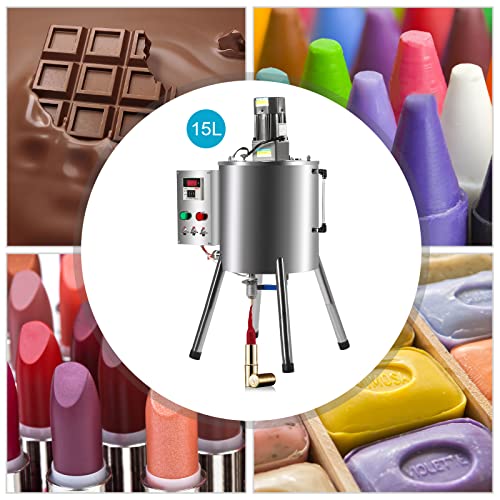

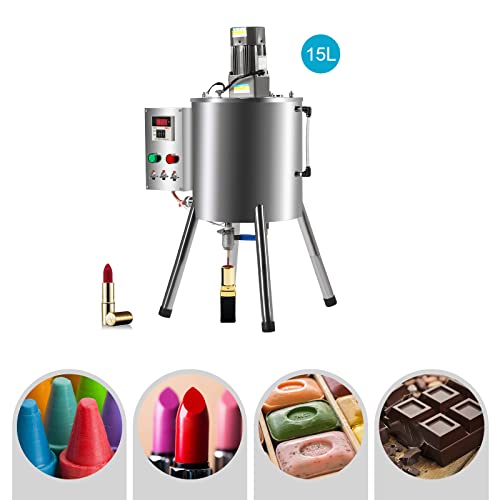

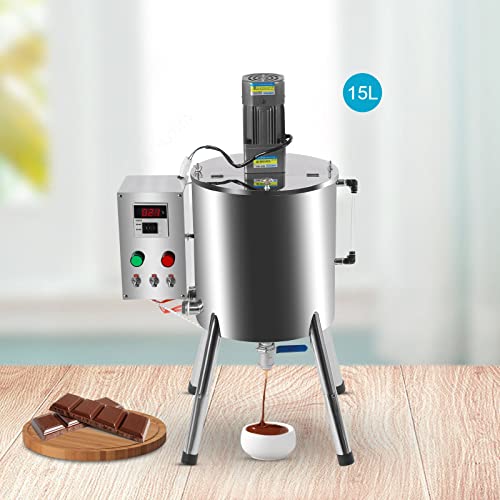

• 【Wide Applications】The heating layer can reach 90℃ with water, and the highest heating temperature can reach 300℃ with heat-conducting oil. It is used for dissolving and filling creams and liquids in daily chemical, food, and pharmaceutical fields such as lipstick, shoe polish, petroleum jelly, wax products, perfume, honey, edible oil, juice, beer, beverage, and skin care water.

With excellent mixing ability, sealing, and constant temperature heating performance, this lipstick-filling machine is an ideal tool to improve filling efficiency and quality. With its 4-gallon capacity, adjustable heating temperature, and simple operation, it will do liquid and cream filling for you excellently.

Specification

Model: YK-15L

Application: Liquid, Paste

Material: 304Stainless Steel, Copper

Process: Automatic Argon Arc Welding. Polishing

Color: Silver

Assembly Required: Yes

Filling Mode: Manual

Power Sources: Electric Corded

Voltage: 110V 60HZ

Plug: US Standard

Capacity: 15L/4gal

Heating Power: 1.5kw(2*0.75kw)

Stirring Power: 60w

Stirring Motor Max. Speed: 36rpm

Power Supply: 2.1kw

Outlet Heating Power: 120w

Certificate: CE

Filling Accuracy: ±1%(Specific Accuracy is Controlled Manually)

Adjustable Temperature: 0-300℃/32-572℉

Filling Speed: 20-45 Bottle/min(Depends on Actual Personal Degree of Operation Proficiency)

Gross Weight: 22kg/48.5lbs

Net Weight: 20kg/44lbs

Package Size: 55*52*40cm/21.7*20.5*15.7in

Product Size: 53*39*70cm/20.87*15.35*27.56in

Bucket Wall Thickness: 2mm/0.08in

Package Included

1*Lipstick-filling Machine

1*Stirrer

4*Support Pillars

1*English User Manual

All Accessories Needed for Use

Notes

1. The water filling port is also used to discharge steam, please do not block it.

2. Please clean the drum before use.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
