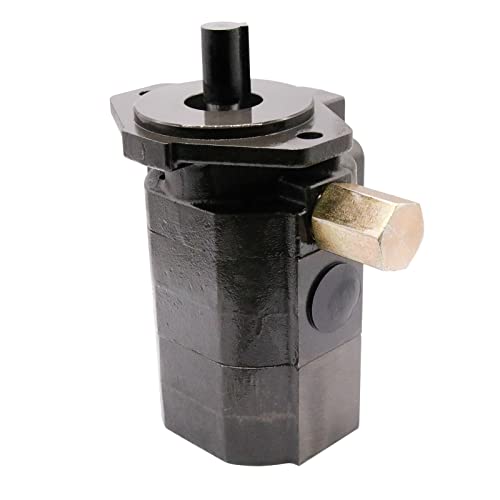

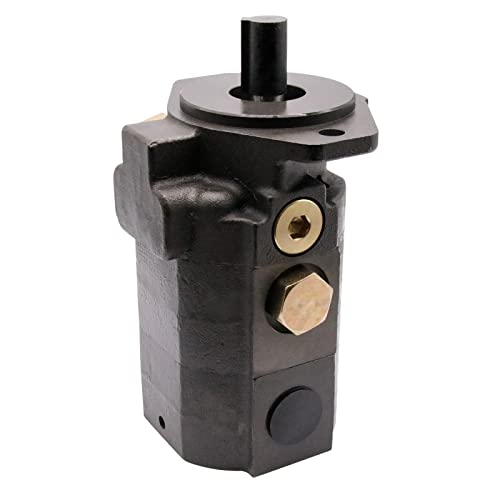

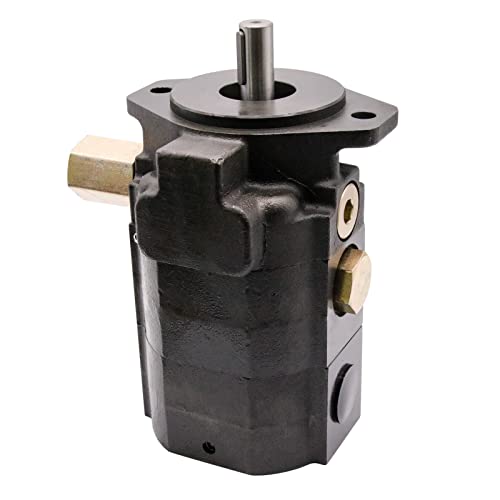

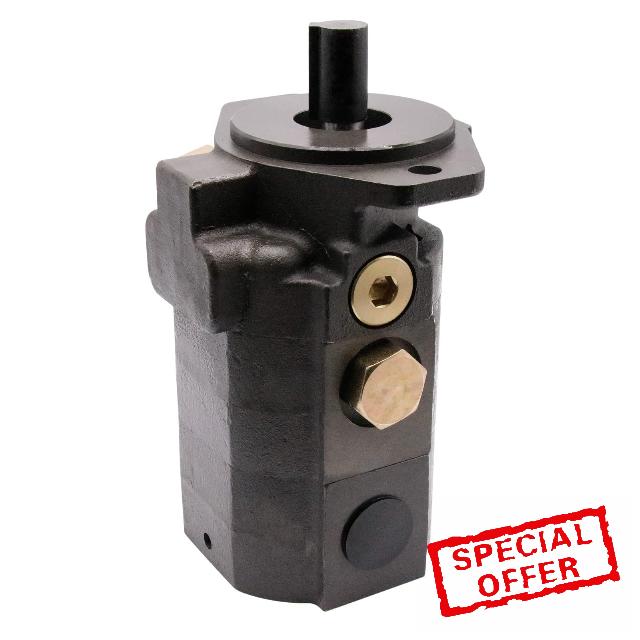

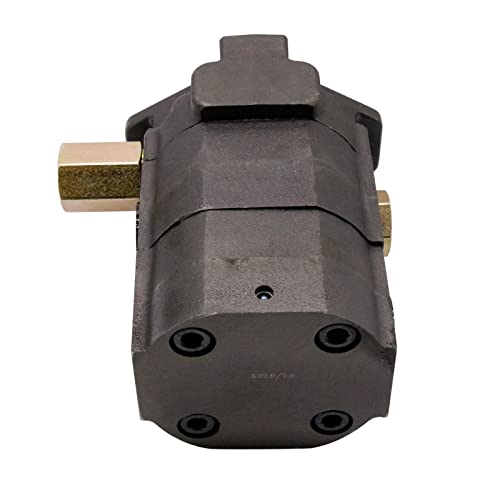

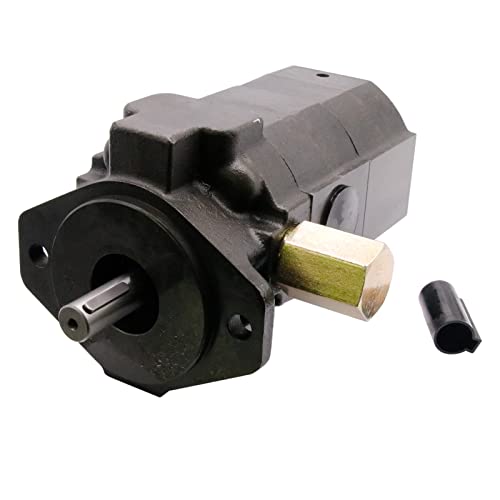

28 GPM 2-Stage Hydraulic Log Splitter Pump – Wood Splitter Pump, Complete unit cast iron, 4000 Max RPM, 3000 psi Rated, 2 Bolt Flange Mount, Drive Shaft: 5/8″

• Set includes: 1pc 28GPM Two-Stage Log Splitter Pump.
• Material: Complete unit cast iron, Durable hardened steel gears.
• Features: Needle bearing construction. Max Pressure 4000psi intermitant, 3000PSI continuous. Max RPM: 4000. Shaft size: 5/8". Keyway: 3/16". Inlet 1" npt. Outlet 3/4 not. SAE Mount. Requires about 15 hp or more to run efficiently.
• Application: Used in presses, log splitters, clamping units, and compactors.
• Note: Looking at shaft side, pump rotates clockwise – Your engine must spin counter clockwise when looking at the shaft!!!! Pump can be mounted in vertical or horizontal positions – must have 100% positive fluid supply or pump will burn up.

›

Descriptions:

This 2-stage Cast Iron Hydraulic Pump offers faster cycle times and higher possible pressure with a small engine. Offering superior volumetric and mechanical efficiency, Ideal for log splitters, presses, machine tools, trash or refuse compaction and other applications where rapid transverse of a cylinder is required
1st stage: 28 GPM; 2nd stage: 7.6 GPM.
Cast iron body handles demanding jobs.
Durable hardened steel gears.
Needle bearing construction.
Max Pressure 4000psi intermitant, 3000PSI continuous.
Max RPM: 4000
Shaft size: 5/8″
Keyway: 3/16″
Inlet 1″ npt
Outlet 3/4 not
SAE “A” 2 bolt Mount
Requires about 15 hp or more to run efficiently
Looking at shaft side, pump rotates clockwise – Your engine must spin counter clockwise when looking at the shaft!!!!
Pump can be mounted in vertical or horizontal positions – must have 100% positive fluid supply or pump will burn up

Package included:
1pc 28GPM Two-Stage Log Splitter Pump
