Pneumatic Filling Machine, 100-600ml 40Bottles/min

Pneumatic Filling Machine, 100-600ml 40Bottles/min Horizontal Pneumatic Paste Filler Stainless Steel Semi-automatic Liquid Filler with 40L Hopper, Electric Piston Filler for Cosmetic Cream Shampoo

• 【High Efficiency &Precision】Adopt an advanced cylinder and adopts the pneumatic principle, so it has high efficiency filling performance. Its filling speed is 0-40 bottles/min. &This liquid filling machine has an accuracy within ±0.01. It can precisely control the amount of liquid to be filled. Its piston adopts a high-quality tetrafluoro piston, so it has the characteristics of wear resistance and excellent sealing performance. This also greatly improves its working accuracy.
• 【Arbitrary Control】The whole filling process can be controlled, including the running speed of the cylinder, filling speed, filling volume, etc., so it can meet different demands for precise filling. Adjustment Handle and Knob: The horizontal pneumatic paste filling machine is equipped with a dosing adjustment handle and a pressure adjustment knob. The different adjustment methods can prevent you from misuse so that the filling quantity and pressure value can be adjusted more accurately.
• 【Large Capacity Without Drip】The filling capacity of this horizontal pneumatic paste filling machine is 100-600ml/3.38-20.29oz, and it is equipped with a 40L/1366oz hopper. It is equipped with a rotary valve that can effectively control the transfer of paste to the outlet, so it can be almost drip-free. Silicone O-ring: The package is equipped with a silicone O-ring, which can play a good role in sealing and preventing filling dripping.
• 【Two Modes &Easy to Operate &Clean】This horizontal pneumatic paste filling machine is capable of pointing or pneumatic operation. &It has a simple structure that can facilitate you to easily understand and master the operation method, so it is also very friendly for novices. &This horizontal pneumatic paste filling machine is easy to disassemble so it is more convenient to clean. Its switch is also removable so it further ensures safety.

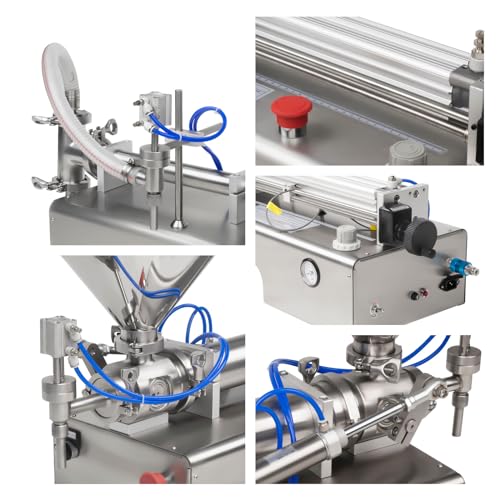

• 【Switch】Footswitch: It is equipped with a foot switch that can be easily switched to the point action mode. The foot pedal makes it easy for you to do the task sitting down, which is easy and efficient. Magnetic Switch: It uses a magnetic switch to easily adjust the filling amount, which is more convenient and faster. Emergency Stop: There is a red switch on the side of the filling machine. It can help you stop the filling in time, to avoid some unexpected accidents.

Application

It is suitable for quantitative filling of liquid, paste and other substances in food, daily, cosmetics lubricant and other industries. Such as honey, chili sauce, tomato sauce, toothpaste, glass cement, etc.

Specification

Model: G1WGD

Color: Silver

Material: Stainless Steel 304, 201

Automatic Grade: Semi-automatic

Driven Type: Pneumatic

Voltage: 220/110V, 50/60Hz

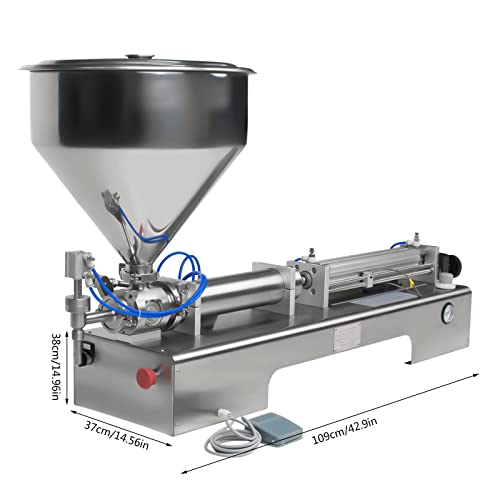

Filling Machine Size：109*37*38cm/42.91*14.57*14.96inch

Filling Machine Weight: 35 kg/77.16lbs

Machinery Capacity: 1000BPH

Filling Material: Beer, Milk, Water, Oil, Juice, Sauce, Honey, Jam, Toothpaste

Filling Accuracy: ± 1%

Machinery Test Report: Provided

Video Outgoing Inspection: Provided

Single Package Size: 125*50*50 cm/49.21*19.69*19.69inch

Single Gross Weight: 45 kg/99.21lbs

Standard Export Package: Wooden Case or As Your Request for Paste Filling Machine

Filling Range: 100-600ml /3.38-20.29oz

Air Pressure: 0.6-0.8mpa

Filling Speed: 0-40 bottles/min

Control: Button Control+Foot Pedal

Certification: ISO9001

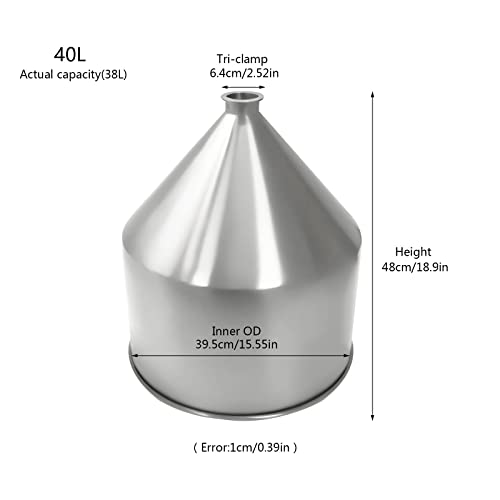

Hopper（with a lid）:

Capacity: 40L/1366oz（Actual capacity is about 38L/1285oz）

Hopper Material: 304 Stainless Steel

Color: Silver

Hopper Size: 40*40*48cm/15.75*15.75*18.9inch

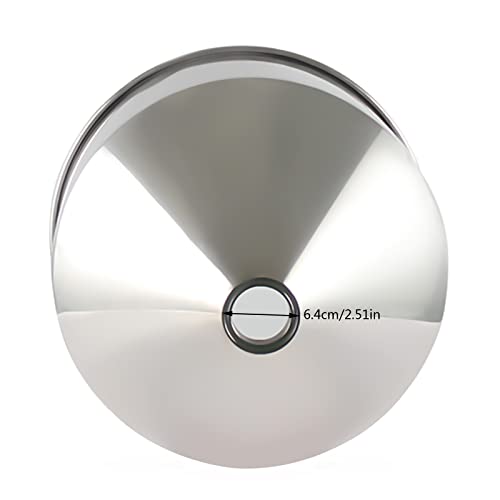

Hopper Tri-clamp Diameter：6.4cm/2.5inch

Packing Size: 43*43*50cm/16.9*16.9*19.7inch

Hopper Inside Diameter: 39.5cm/15.55inch

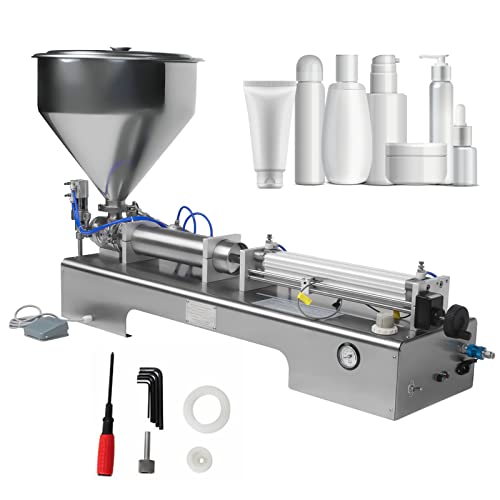

Package Included

• 1*Horizontal Pneumatic Paste Filling Machine
• 1*Hopper
• 1* Phillips Screwdriver
• 5*Hex Wrenches
• 1* Interchangeable Nozzle
• 11* Silicone O-rings
• 1* English Manual
