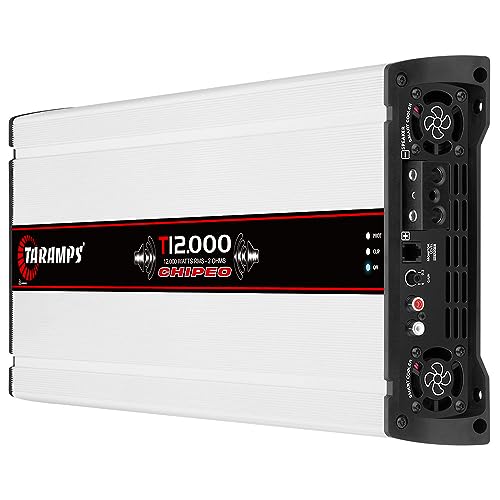

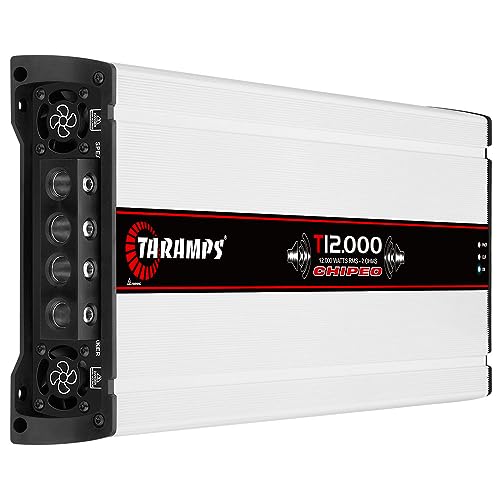

Taramps T 12.000 Chipeo 12000W RMS 2 Ohms High Performance

1 Channel Car Audio

Taramps T 12.000 Chipeo 12000W RMS 2 Ohms High Performance, 1 Channel Car Audio, High Power Amp, Class D, Output Power 12.6~14.4VDC, Monoblock Amplifier, White

  • This amplifier T 12.000 Chipeo in 2 Ohms with 12000 watts RMS it is not a high voltage amplifier.
  • The T 12.000 Chipeo gives you 12300W RMS at 12.6VDC and can reach an incredible 13300W RMS operating at 14.4VDC

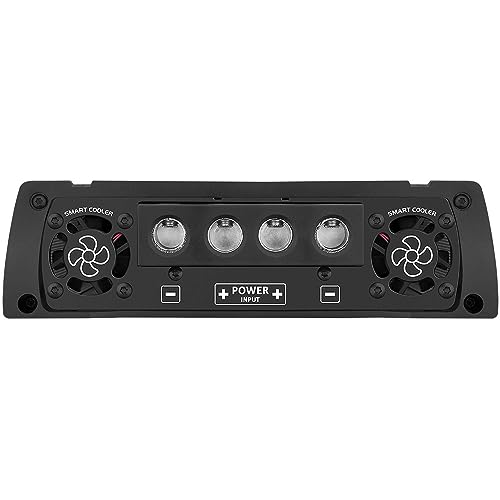

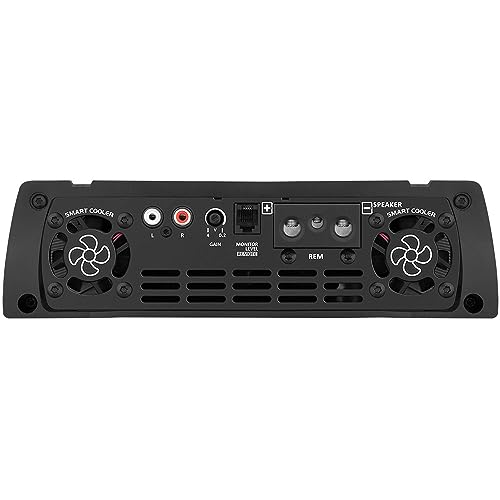

  • The Positive/Negative power supply cable is 2x 2/0 AWG. The output cables wire gauge is 7 AWG and the remote cable is 18 AWG. For Protection fuse or circuit breaker please use 600A.
  • This amplifier does not contain crossover and is compatible with Taramps Monitor Level Remote.
  • Protection System: Short-Circuit to output, short on output compared to GND, low impedance at output, High/Low supply voltage and thermal protection

SKU: B0CF3SSB1W

Product Description

T 12000 ChipeoT12000 Chipeo

Taramps T 12.000 Chipeo 2 Ohms Technical Information

Input Sensitivity: 220mV ~ 4V Rms
Signal- to-noise Ratio: >90dB
Frequency Response 5Hz ~ 5KHz (-3dB)**
Efficiency 86%
Input Impedance: 10K Ohms
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 17VDC
Idle Consumption: 5.60A
Musical Consumption @12.6VDC: 554A
Rated Power Consumption: 1108A
Dimensions (W x H x L) 8.98″ x 2.52″ x 20.94″
Weigth 16.72lb
T 12.000md 12000.1MD 8000MD 8000
T 12.000 Chipeo 1 Ohm MD 12000.1 O.5 Ohm MD 8000.1 1 Ohm MD 8000.1 2 Ohms
Operation Class D D D D
Number of Channels 1 1 1 1
Input Impedance 10K Ohms 15K ohms 10K Ohms 10K Ohms
Crossover High Pass (HPF) – 10 Hz ~90 Hz (-12dB/8th) Variable 10Hz ~ 90Hz (-12dB/8ª) Variable 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover Low Pass (LPF) – 90 Hz ~5 kHz (-12dB/8th) Variable 90Hz ~ 10KHz (-12dB/8ª) Variable 90Hz ~ 10KHz (-12dB/8ª) Variable
Efficiency 81% 79% 82% 82%
Frequency Response 5Hz ~ 5KHz (-3dB)** 10 Hz ~5 kHz (-3dB) 10Hz ~ 8KHz (-3dB) 10Hz ~ 8KHz (-3dB)
Maximum Music Consumption 588A 602.5A 387A 387A
