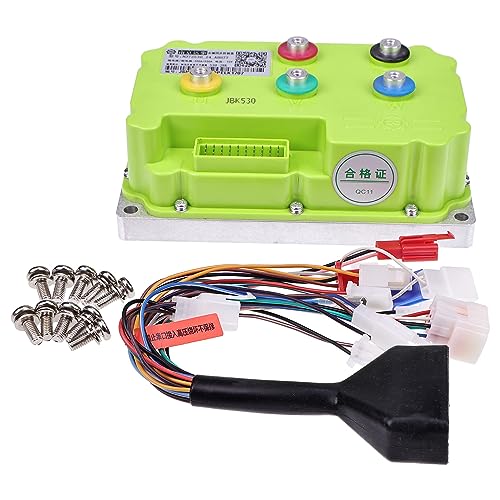

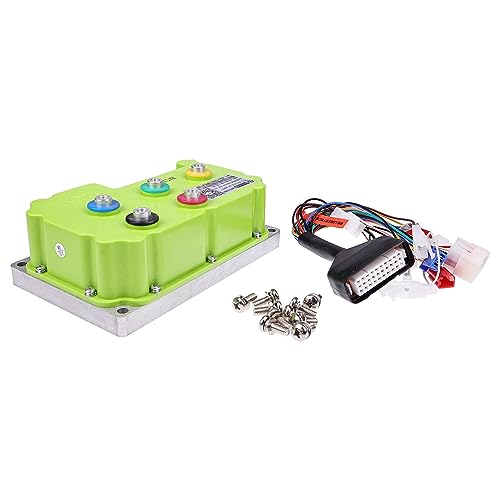

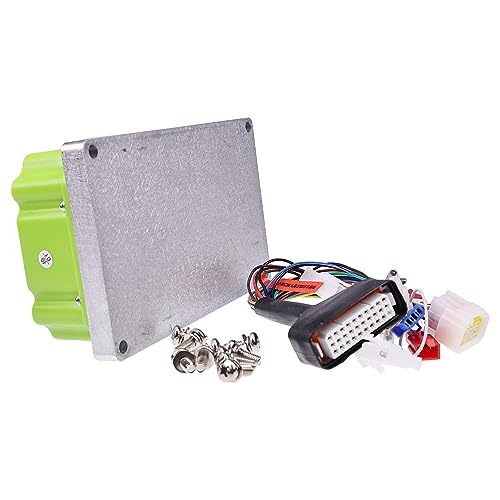

AIVWUMOT 72V 350A High Power Programmable Controller ND72530

AIVWUMOT 72V 350A High Power Programmable Controller ND72530 Compatible with 6-8KW BLDC QS Motor

• 【Part Number】ND72530
• 【Specification】72V 350A 6-8KW
• 【Warranty】1 Year

1 Model: ND72530
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage: 48V/60V/72V
4 Peak Battery Voltage: 88V
5 Available Motor Power: 3000W – 7000W
6 Defaut Throttle Working Voltage: 0V – 5V
7 Peak DC Current: 350A
8 Peak Phase Current: 530A
9 Mosfets Detail: 24 FET
10 Weight: 3kgs
11 Instaliing Size: 189mm * 121mm * 65mm
12 Controller Design: Sine Wave BLDC
13 Case Material: Aluminum
14 Support Programmable: PC & Phone, does not include Bluetooth Dongle sold separately
15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
