JXOFROAD 15.5in Pure White Wheel Ring Lights,New Upgrade Quad Rows 1152-LEDs Waterproof Tire Rim Light with RF Remote APP Control for Truck Car SUV Pickup

• [New Upgrade]: 15.5in LED wheel rim light for truck with four-rows a total of 1152 5050-SMD beads; DC12V voltage;360° wide angle ultra brightness pure white lighting.At least 1.5 times brighter than other wheel lights,provide effective lighting for your car.
• [Control]: White led ring light is controlled by the RF wire remote and bluetooth,which can easily setting strobe,adjust 0-100 speed/brightness,flash,gradient, and music function.This lamp is only suitable for the amplifier in the kit and insert the battery for RF remote on your own
• [High quality]: Each car tire wheel light is made of aluminum alloy frame and PC silicon tube strip, which is IP68 waterproof, rust proof, and deformation resistant. It can be easily used in various harsh environments.
• [Use]: Pure white ring light is suitable for wheel assemblies of truck,off-road, ATV, SUV, pickup,etc.Each ring comes with a 150cm lead wire for easy connection to the cockpit power supply. Equipped with mounting screws,brackets and instructions.
• [Support]: Provide one-year warranty and free lifelong technical support.If you have any problems with the led car tire wheel light,please contact our customer service team.

›

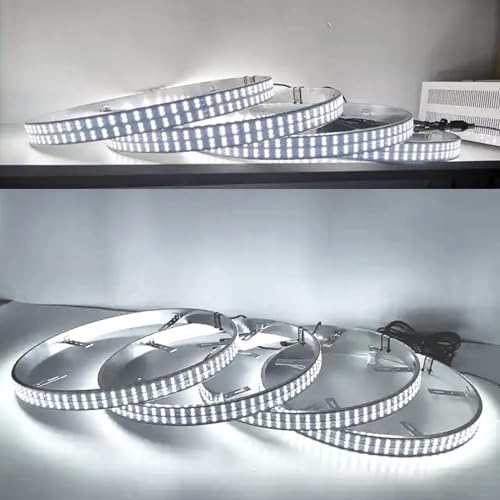

Quad Rank Pure White LED Wheel Rim Light Kit

• The 4-row LED wheel light kit uses 1152 ultra bright wide angle SMD LED chips, with pure white light illuminating the entire wheel for you car, making it powerful and suitable for 360 ° installation. It has 5 levels of adjustable brightness, as well as dynamic modes such as strobe and breathing to choose from.
• The high-quality aluminum wheel hub design is sturdy and durable, with excellent waterproof, dustproof, and shockproof performance, which can protect the wheels from the invasion of sand, dust, and rain.
• Equipped with a specific amplifier shunt, built-in fuse to prevent excessive power from burning out, and blue wires with brking function.

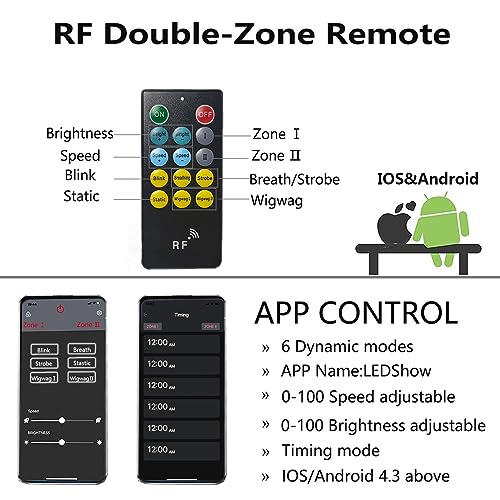

LEDShow Controller Instruction Manual

This new Double-Zone Bluetooth controller can use for all kinds of IOS and Android 4.3 above system mobile phone, RF remote control is a second option if you do not want to use Bluetooth. According to what the user want the controller can be set totally double zone independently, each zone can act different mode such as strobe on first zone ,breathing on second zone. The controller is easily set up, easily connect to Bluetooth &easily use, the software shows the text which is based on the language of the mobile set up automatic transformation of Chinese or English, suitable for different kinds of LED signal color light.

LED Wheel Rim Light Installation

Warning:The installation of this kit is recommended to be installed by a licensed professional. The improper installation of this kit will void all warranties.

Prior to installation, ensure the vehicle you are installing this product on has brake dust shields that are in good condition behind the rotors.

• The rotor diameter must be 13.5" or smaller and the wheel diameter 18" or larger for the 14" kit.
• The rotor diameter must be 15" or smaller and the wheel diameter 20" or larger for the 15.5" kit.
• The rotor diameter must be 16.5" or smaller and the wheel diameter 22" or larger for the 17" kit.

Please include your caliper when measuring for fitment as larger calipers may interfere with wheel ring mounting.

Temporarily connect the wheel ring lighting kit to a 12-volt power source and test for full functionality prior to installation.

Tips:how to get the right size for the rims you have

• 17-20" rims use the 14" kit
• 22-24" rims use the 15.5" kit
• 26" and up rims use the 17" kit
• Vehicles with 19-20" wheel that have performance or big brake kits should use15.5" kits
• Vehicles with 22" wheel that have performance or big brake kits should use17" kits

SizeColorStandardsLED NumberVoltageRemote ControlWaterproofRust-proof

15.5in	15.5in	15.5in	17in
pure white	RGBW	Dream Color	RGBW
Double-rows	Quad rows	Quad rows	Quad rows
576leds	1152leds	1152leds	1240leds
DC12V	DC12V	DC12V	DC12V
✓	✓	✓	✓
✓	✓	✓	✓
✓	✓	✓	✓
