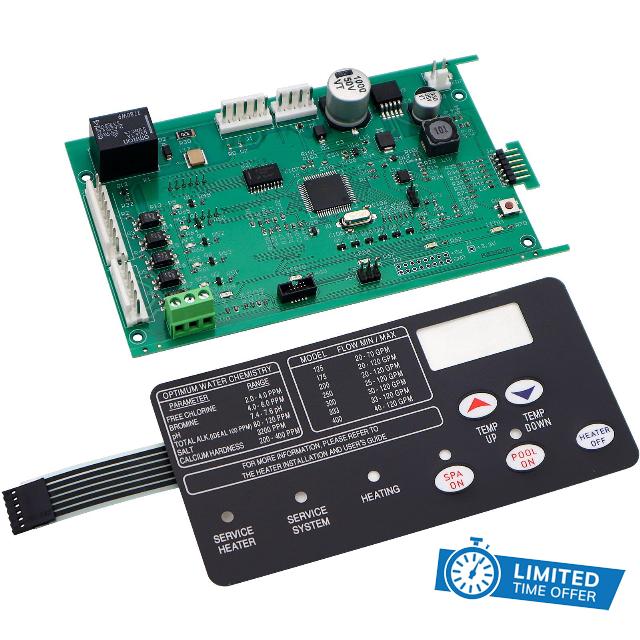

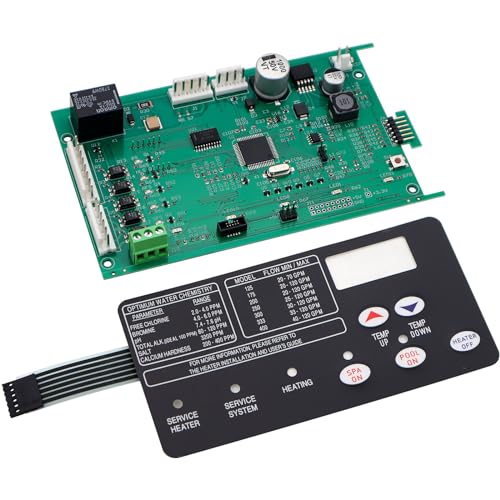

42002-0007S Pool Heater Control Board with 472610Z Switch

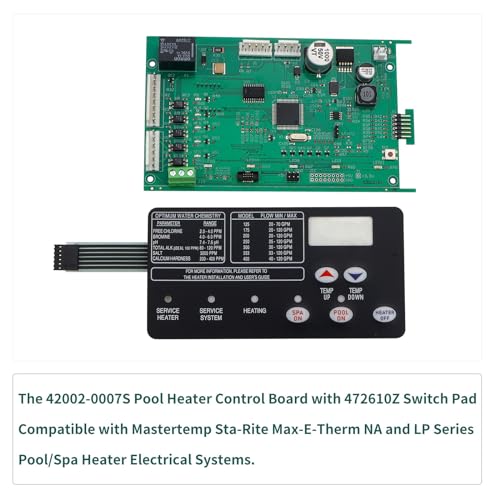

42002-0007S Pool Heater Control Board with 472610Z Switch Pad, 420020007S Control Circuit Board Kit Compatible with Mastertemp Sta-Rite Max-E-Therm NA and LP Series Pool/Spa Heater Electrical Systems

• [Component]: The 42002-0007S Pool Heater Control Board with Switch Pad Compatible with Mastertemp Sta-Rite Max-E-Therm NA and LP Series Pool/Spa Heater Electrical Systems.
• [Applicable Model]: This 42002-0007s control board kit fit for Mastertemp Sta-Rite Max-E-Therm natural gas pentair 125NA 125LP 175NA 200NA 250NA 250HD 300NA 400NA 400HD 175LP 200LP 250LP 300LP 400LP SR200NA SR200HD SR333NA SR333HD SR400NA SR400HD SR200LP SR333LP SR400LP pool heater.
• [Easy Installation]: Remove the old circuit board by first turning off all power and opening the top of the heater. Unplug the membrane pad from the board and remove the wire connectors that connect to the old board. Remove the 4 screws holding the circuit board in place. Screw the new plate back on and insert the membrane pad into the connection that accepts the ribbon cable. Reconnect all of the wire connections and close out your master temp or max e therm heater.

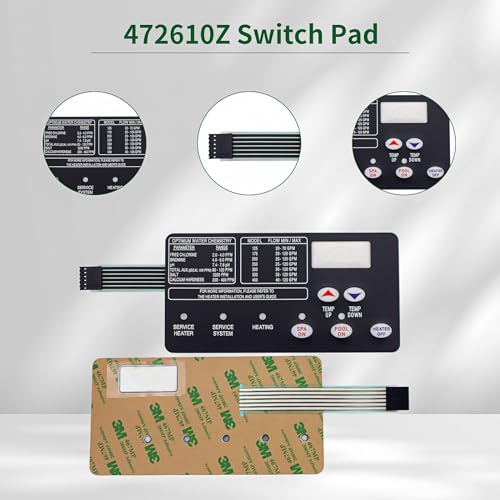

• [Package included]: Includes a replacement board (42002-0007s / 461105) and a Switch Membrane Pad (42002-0029Z / 472610Z).
• [1-Year Warranty]: 100% tested before shipment. If there are any problems after purchase, you can contact us to solve it.

42002-0007S Pool Heater Control Board with 472610Z/42002-0029Z Switch Pad

Compatibility:

This 42002-0007s control board kit fit for Mastertemp Sta-Rite Max-E-Therm natural gas pentair 125NA 125LP 175NA 200NA 250NA 250HD 300NA 400NA 400HD 175LP 200LP 250LP 300LP 400LP SR200NA SR200HD SR333NA SR333HD SR400NA SR400HD SR200LP SR333LP SR400LP pool heater.

Easy Installation:
1.Remove the old circuit board by first turning off all power and opening the top of the heater to access the old circuit board.

2. Unplug the membrane pad from the board and remove the wire connectors that connect to the old board. Remove the 4 screws holding the circuit board in place, This will allow you to completely remove the old board.

3.Screw the new plate back on and insert the membrane pad into the connection that accepts the ribbon cable. Reconnect all of the wire connections and close out your master temp or max e therm heater.
