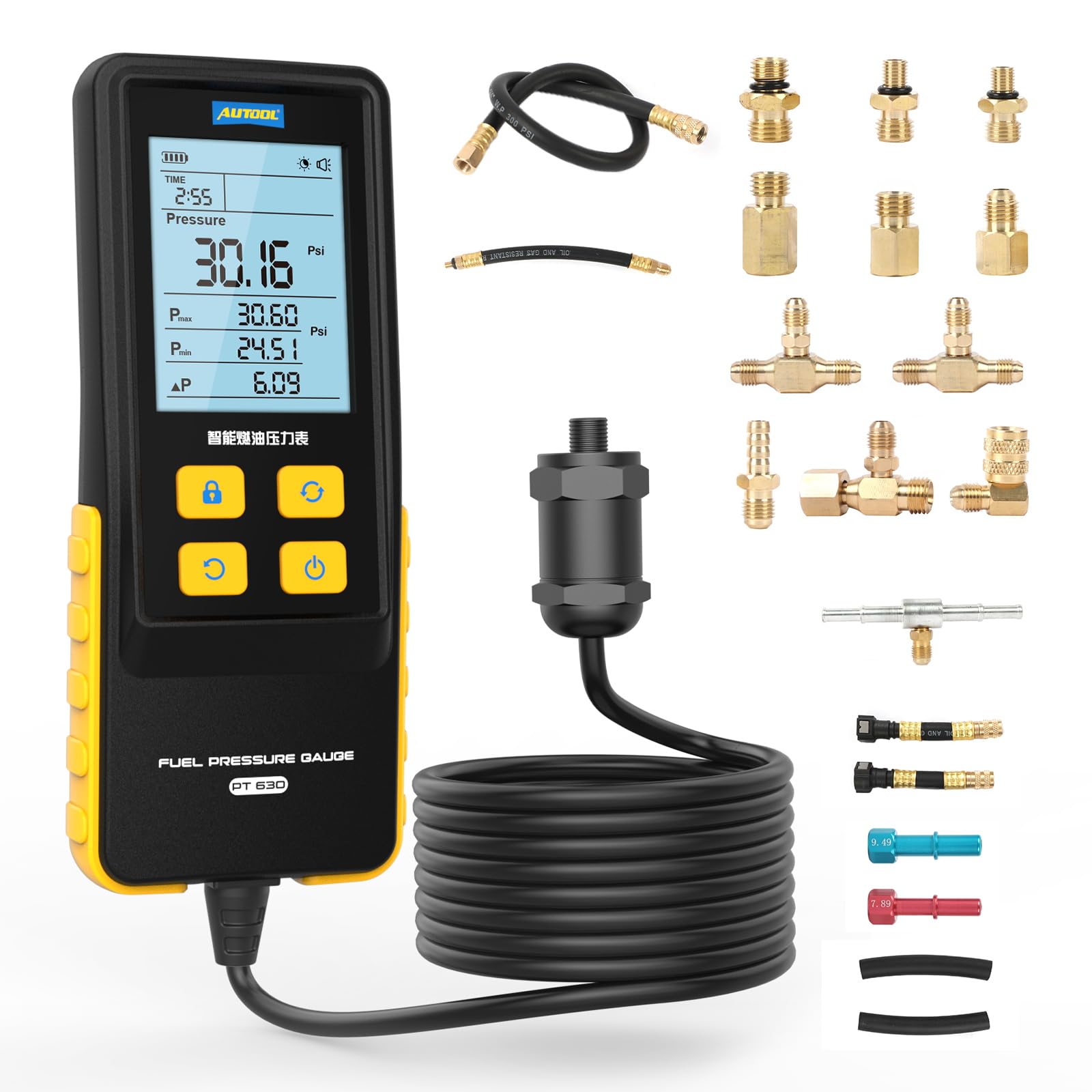

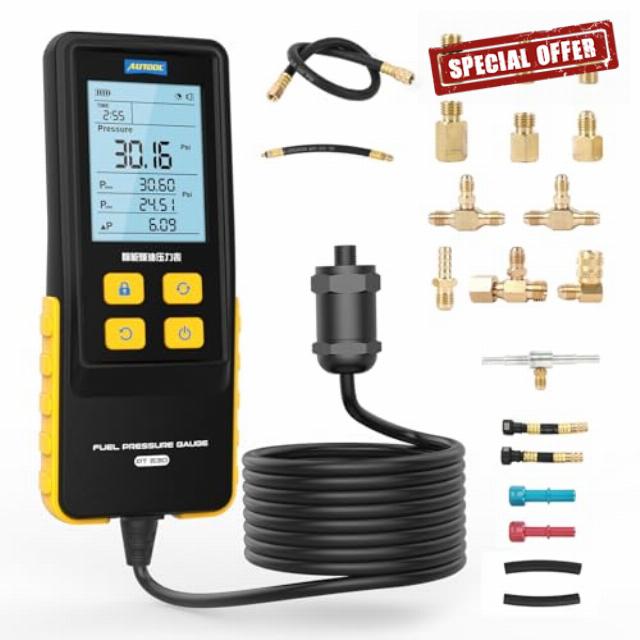

AUTOOL Fuel Pressure Gauge Digital Fuel Pressure Tester Kit, 0-426PSI, 0~29bar Fuel Injection Pressure Test Tools Set with Test Hoses & 11 Connectors, Backlit Display

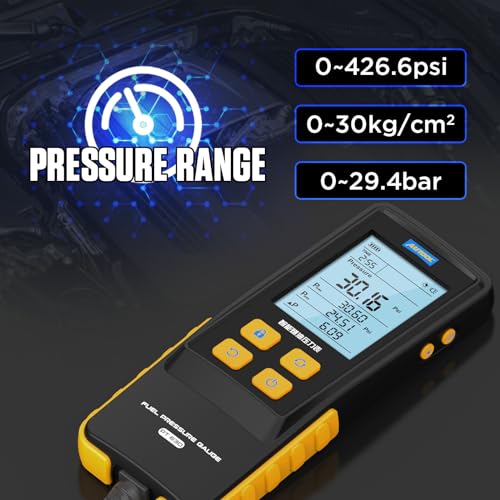

• 【Easy Instant Read】Measures real-time pressure values, maximum and minimum pressure values and differential pressure values of engine oil, as well as measurement time. With 3 different kinds of numerical units in PSI, Bar, and KG/CM², easy to control with buttons. The measurement range is 0-426.6PSI; 0-29.4BAR; 0-30KG/CM².
• 【Smart Digital Gauge】The 2.8-inch backlit display shows clear, accurate data in both bright and dim light. Digital compression gauge has 0.01 display resolution instead of normal 1PSI display resolution compression tester.
• 【Easy Operation】Click the lock screen button to lock the current screen and hold the data. Fuel pressure tester kit with quick release button, long press to zero the unit pressure. The measuring probe of the gauge hose can be quickly connected with most adapters, saving time and improving efficiency.

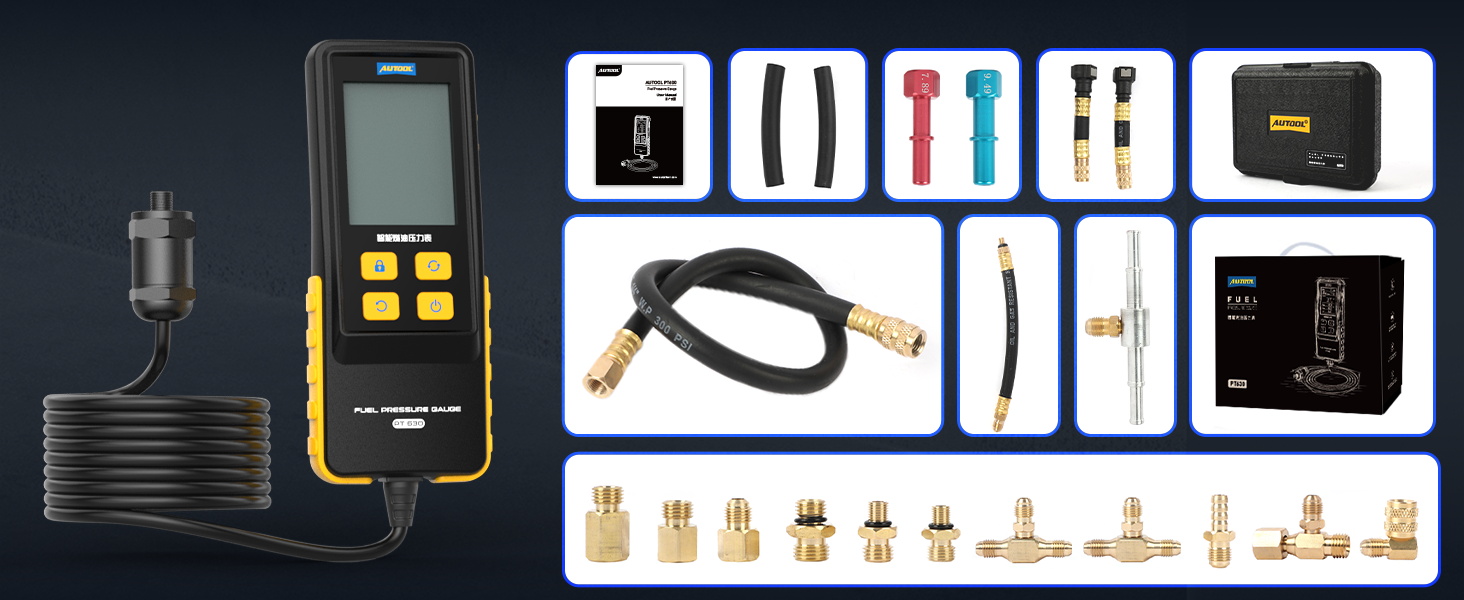

• 【Riveted Copper Material】Included with plenty of adapters to fit variety of gasoline engines. Adapters constructed from high-quality brass resist rust and corrosion, rugged and long-lasting. Extra long 78.7'' hose adopt reinforced rubber, withstand pressure, temperature, and torsion.
• 【Three Years Warranty】For any quality problems. If PT630 has any defect, we will provide new replacement or solutions for our customers until satisfaction without delay, and provides lifetime technical support. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

›

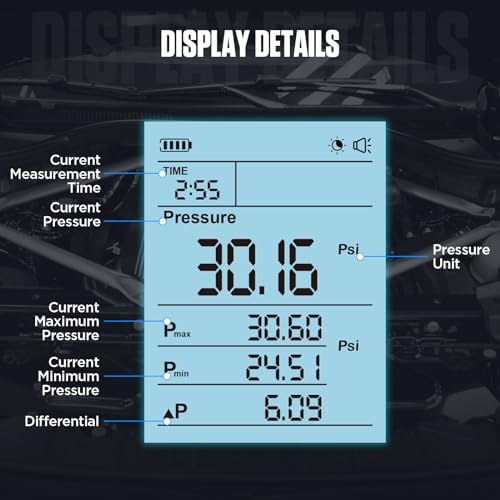

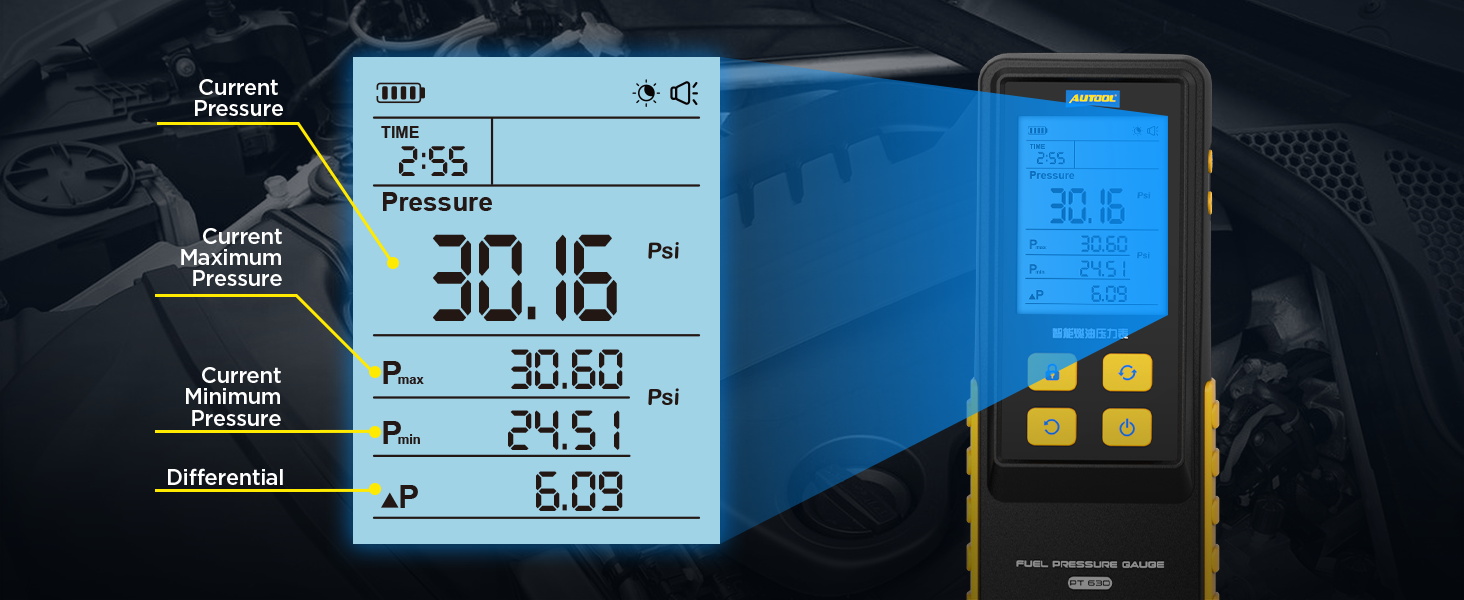

1. Measure the real-time, max and min pressure values, including differential pressure values.

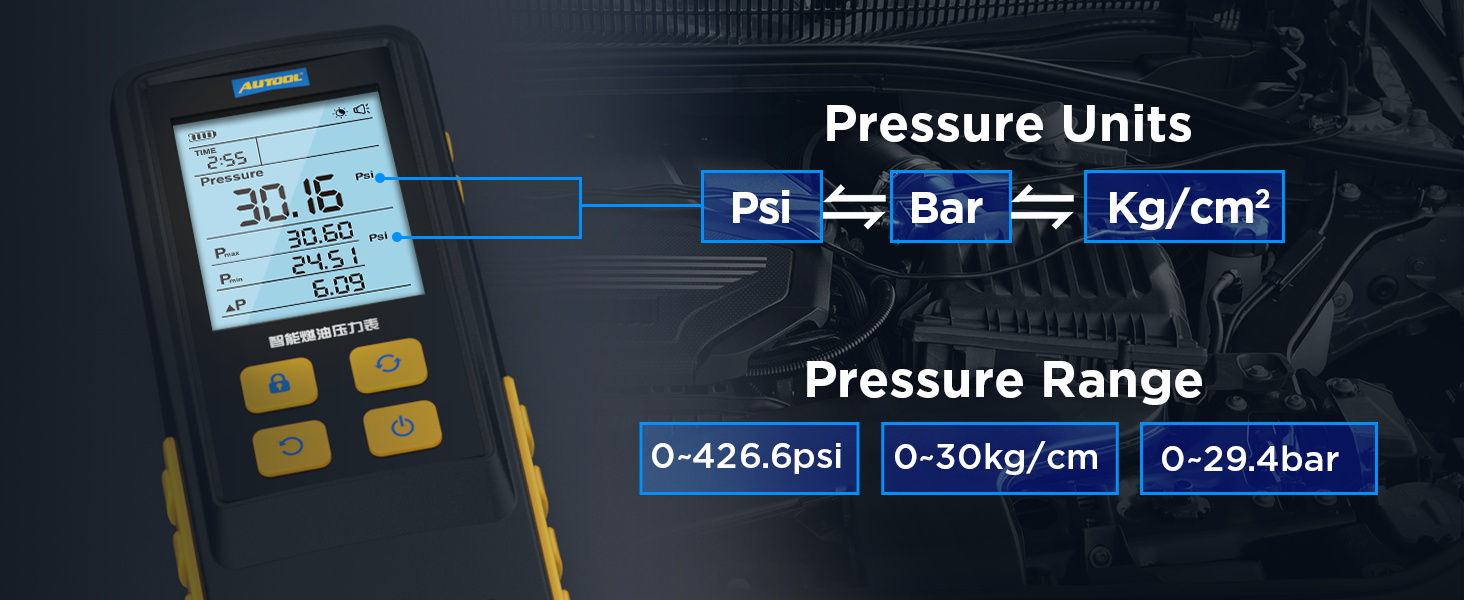

2. Pressure unit can be switched between PSI, bar, kg/cm²,measurement range 426.6PSI, 29.4bar, 30kg/cm²

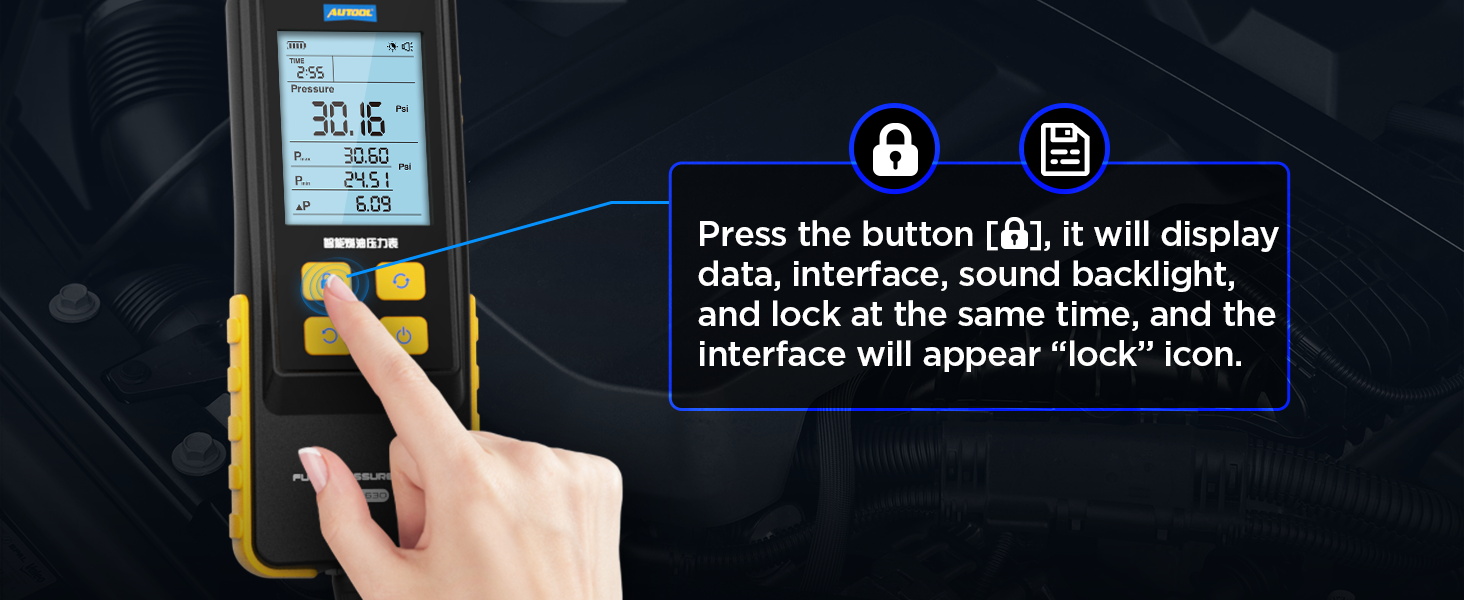

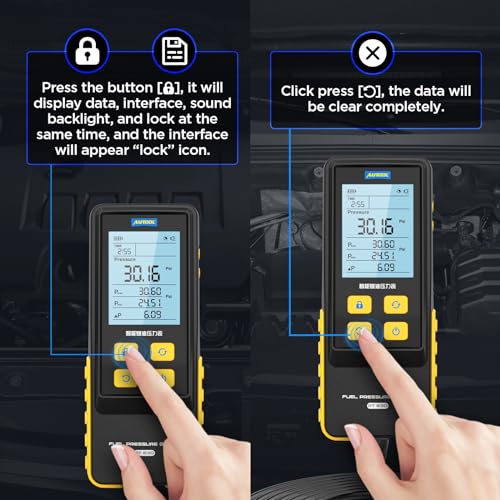

3. Click the lock button to lock the current interface and hold the data.

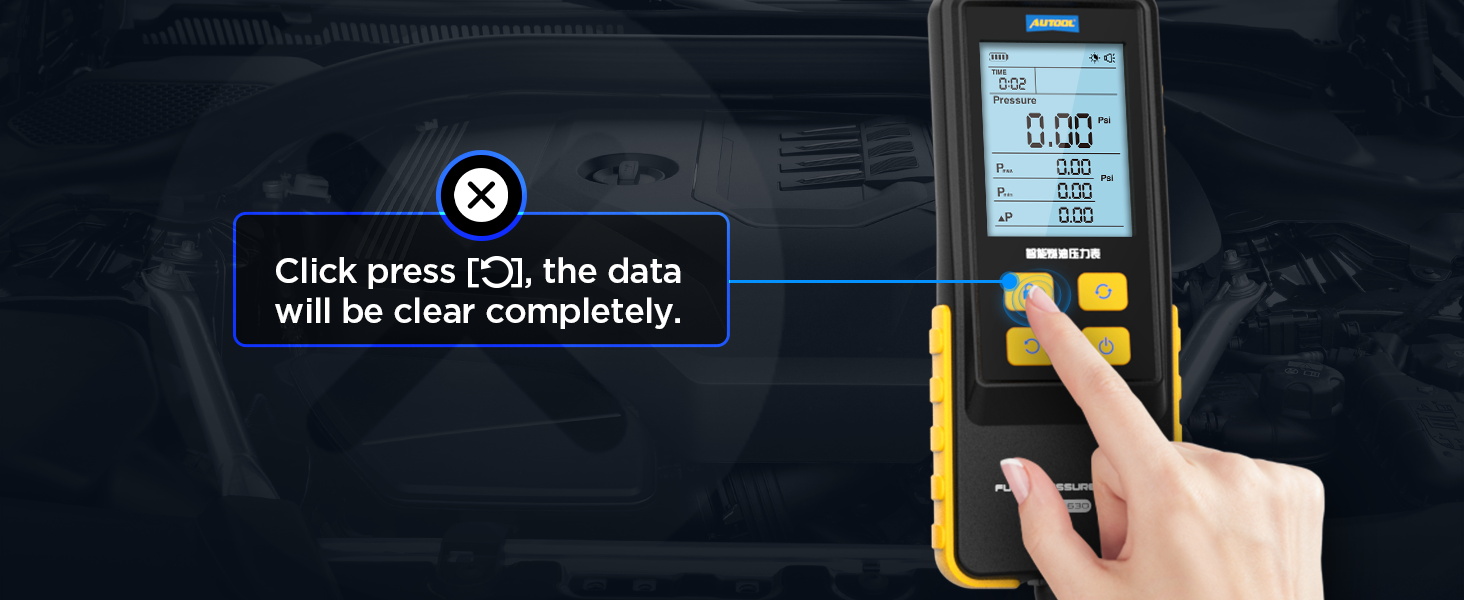

4. Click the zero button to clear the interface data, long press to zero the pressure.

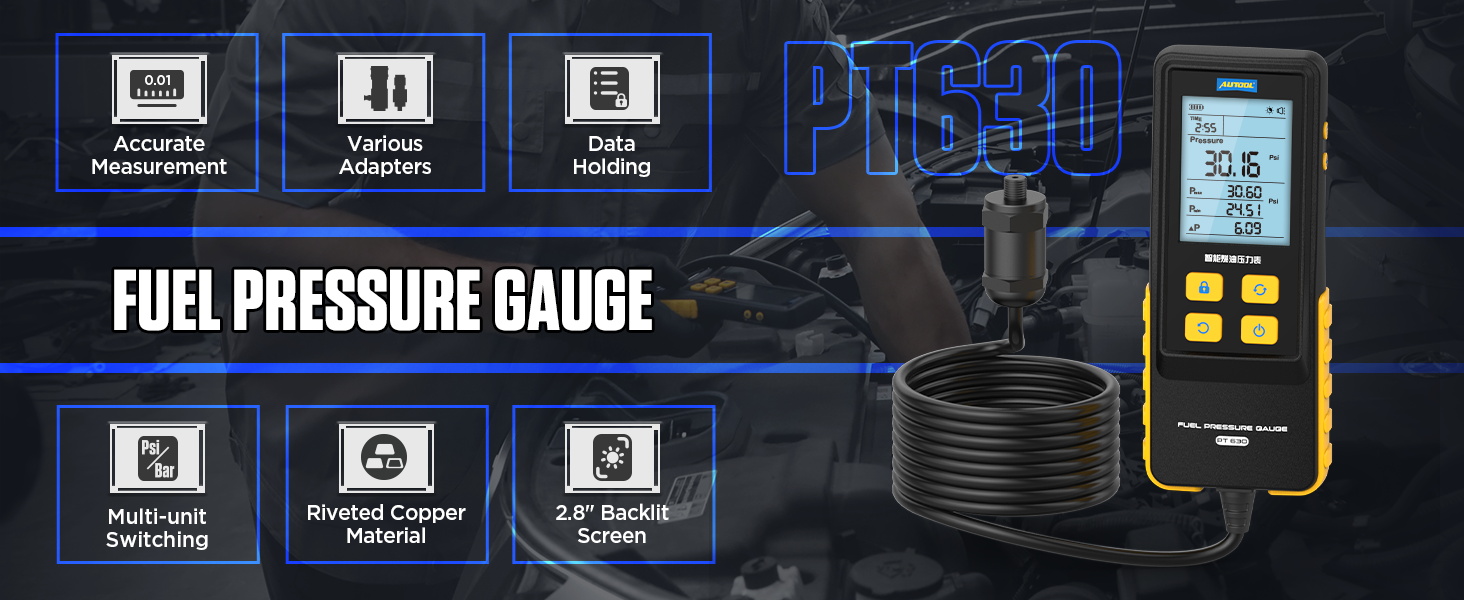

1 Real-time Reading 2 3 Pressure Units 3 Data Holding 4 Pressure Quick Release

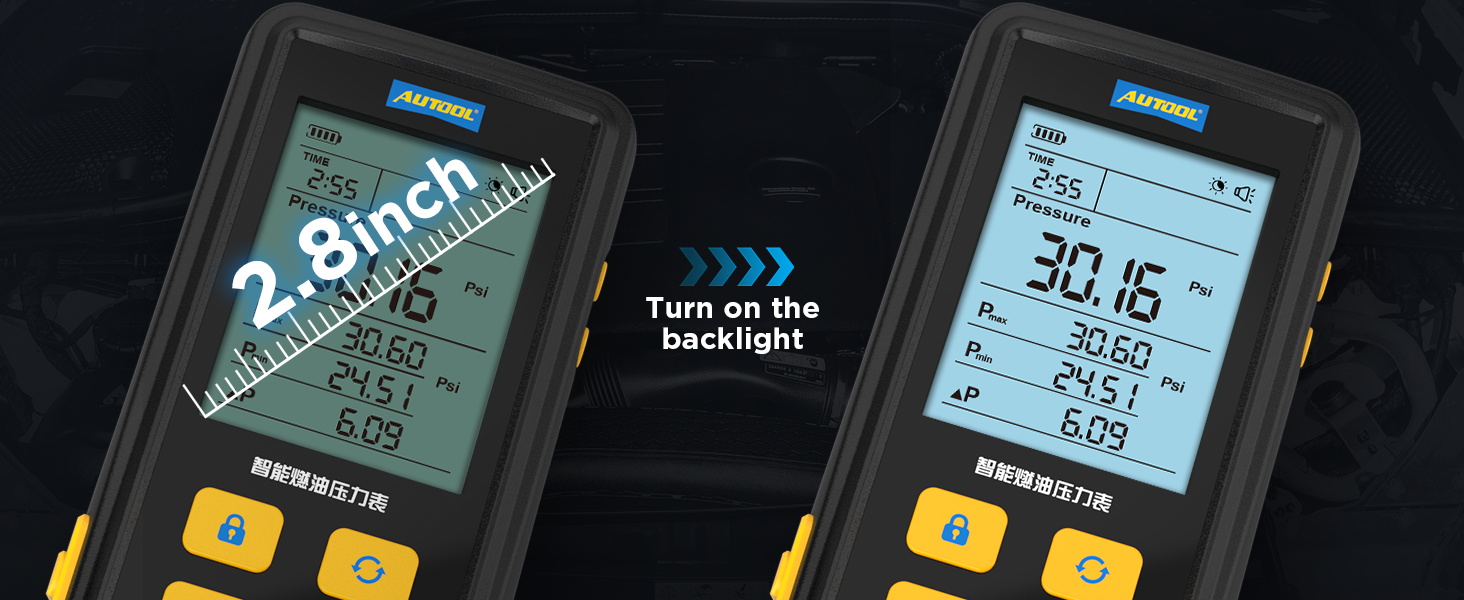

1. The 2.8inch backlit display has 0.01 display resolution.

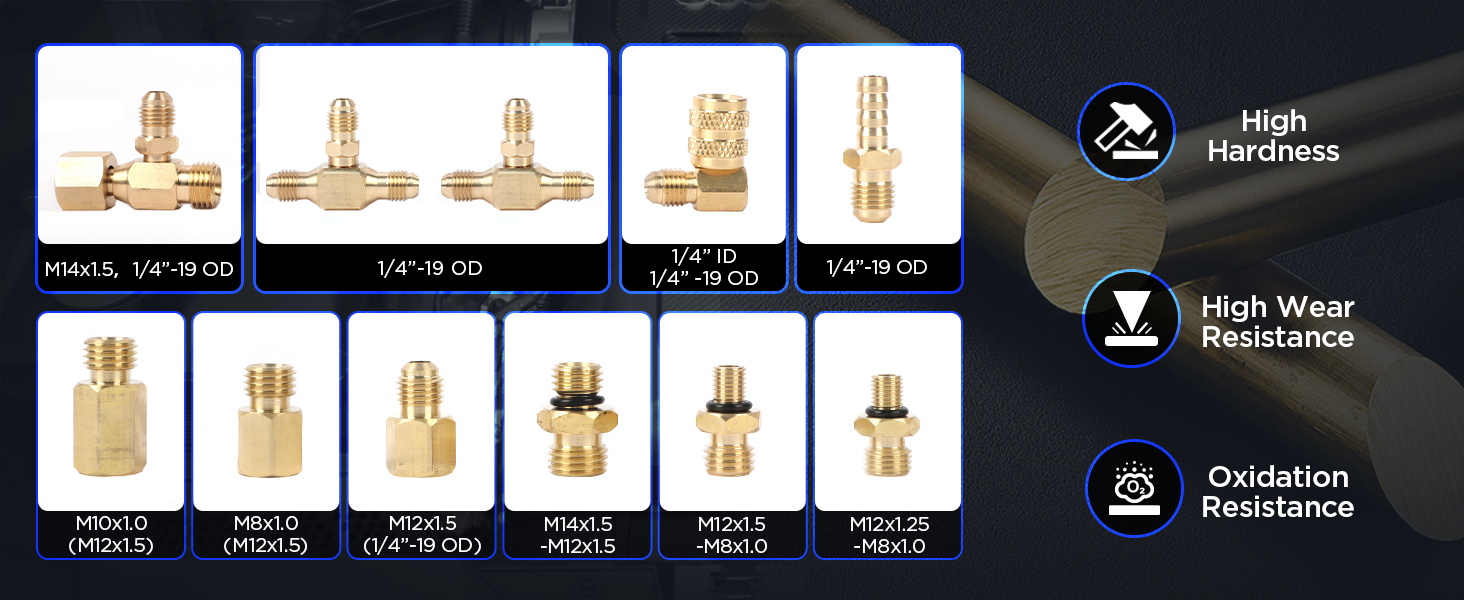

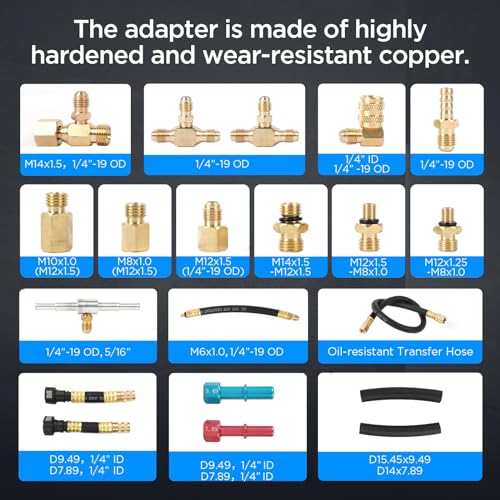

2. The adapters are made of riveted copper with high hardness, high wear resistance and oxidation resistance.

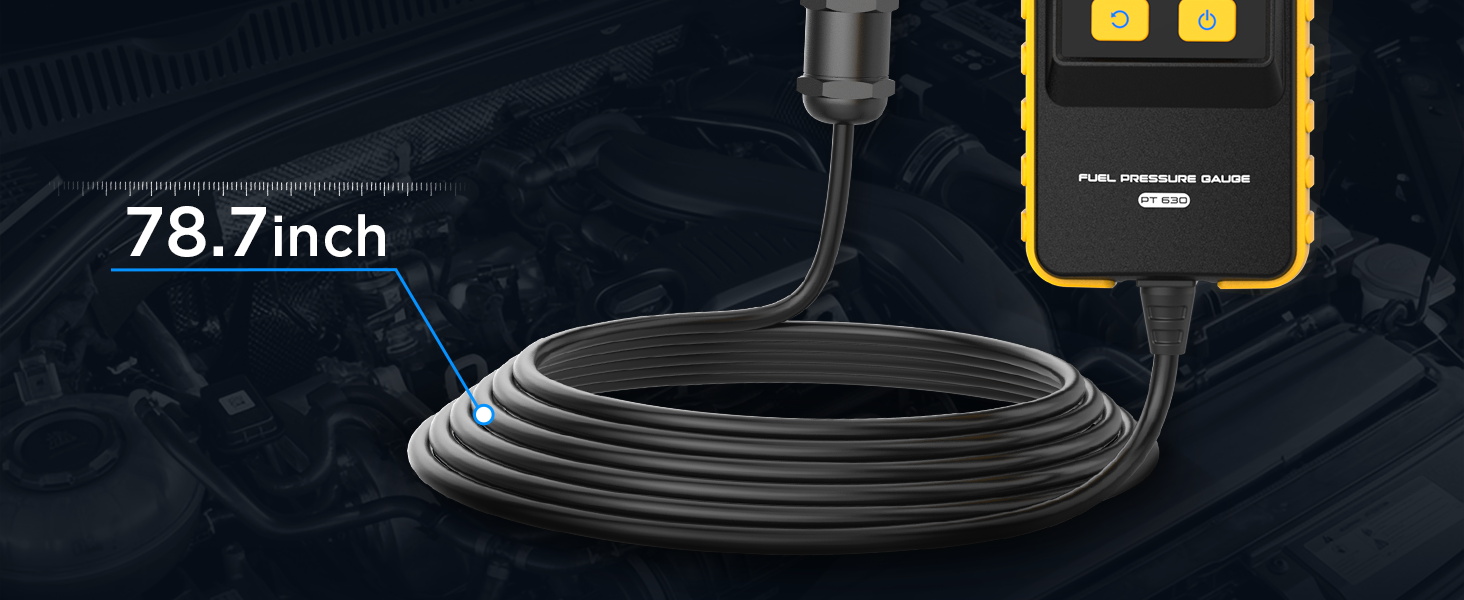

3. 78.7inch reinforced rubber cable easily handles high pressures and resists curling and deformation.

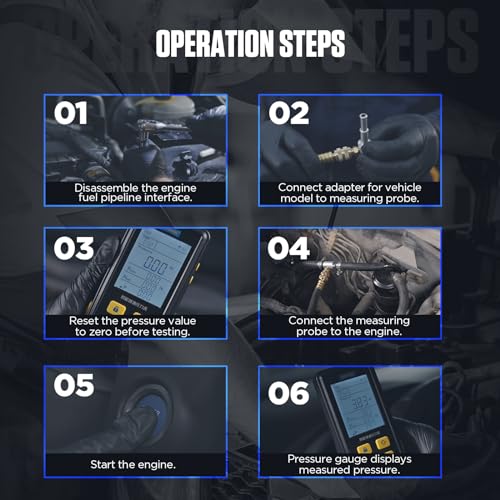

Step1

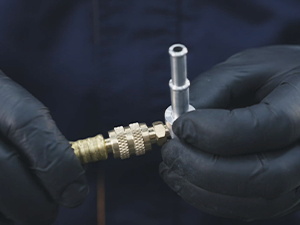

Diassemble the engine fuel pipeline interface, connect adapter to measuring probe.

Step2

Reset the pressure value to zero before testing

Step3

Connect the measuring probe to the engine

Step4

Start the engine, pressure gauge displays measurements

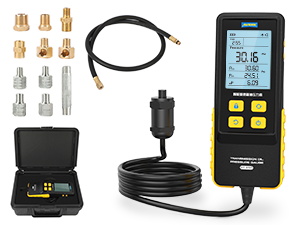

Digital Pressure Gauge Series

Main Function real-time fuel pressure,max and min pressure values,differential pressure values	Main Function cylinder pressure values,real-time/average pressure values,temp.,save 6 datas	Main Function real time transmission fluid pressure,max min pressure,differential pressure
Adapters M6,M8,M10,M12,M14,1/4''-19OD,1/4''ID,5/16'',D9.49,D7.89,D15.45*9.49,D14*7.89	Adapters M8,M10,M12,M14,M16,HP connect line,rubber connect line,bent/straight test line	Adapters M8,M10,1/8''-28OD,1/8''-28ID,1/4''-19OD,NPT 3/8''OD,NPT1/4''OD,transfer hose
Pressure Range 0-426.6psi, 0-29.4bar, 0-30kg/cm²	Pressure Range 0-426.6psi, 0-29.4bar, 0-30kg/cm²	Pressure Range 0-426.6psi, 0-29.4bar, 0-30kg/cm²
Data & Interface Lock √	Data & Interface Lock √	Data & Interface Lock √
