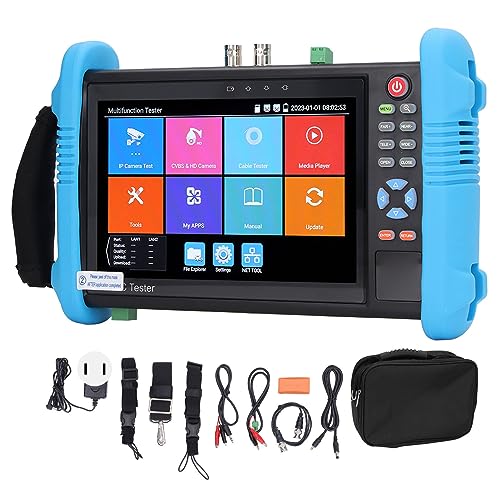

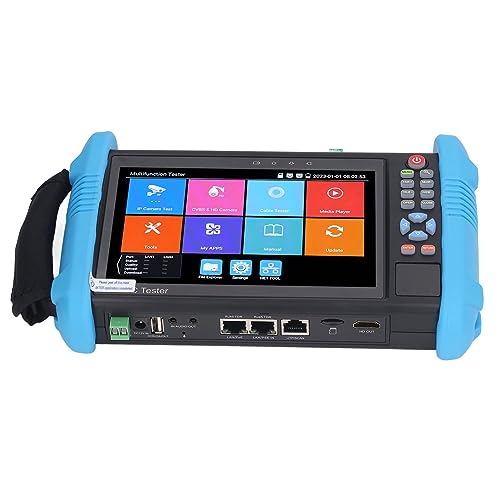

CCTV Tester for Up to 8MP TVI CVI AHD, 7in IPC 9800PLUS 4K

CCTV Tester for Up to 8MP TVI CVI AHD, 7in IPC 9800PLUS 4K H.265 Coaxial Camera Tester, Efficient Work, Large Capacity Battery, IP Camera Testing, UTP Cable Testing (US Plug)

• [EFFICIENT WORK] Complete your CCTV systems work faster and better with this mini 7in IPC 9800PLUS 4K H.265 Coaxial Camera Tester. Conveniently and quickly use a monitor and DVR together, ensuring efficient work.
• [LARGE CAPACITY BATTERY] This CCTV monitor has a long-lasting battery that is easy to replace. With a 12V DC power output, it can power the camera separately when an independent power supply is difficult to provide.
• [WITH SCREEN] This closed circuit television test monitor has a mini size and a 7 inch display screen. The screen is protected by rubber on both sides, making it suitable for use in different environments.tool kits and cables are provided for more convenient use.
• [SCOPE OF APPLICATION] Perfectly test up to 8MP AHD cameras, TVI cameras, and CVI cameras. Ideal for upgrading old CCTV analogsystems. Also supports UTP cable testing.
• [PORTABLE AND EASY TO CARRY] Compact in size and easy to carry, this CCTV tester is an ideal tool for different testing works in different scenes.

Spec:
Item Type: CCTV Tester
Material: ABS
Display Screen: 7 inch, IPS HD full view IPS capacitive touch screen, resolution 1920×1200
Network Port: 10, 100, 1000M adaptive, RJ45
WIFI: Built in wireless WIFI, with a speed of 150M, capable of receiving wireless network camera images, etc.
H. 265 Main Code Stream Test: Hardware decoding, supporting H.265 main code test camera images, with a maximum resolution of 4K.

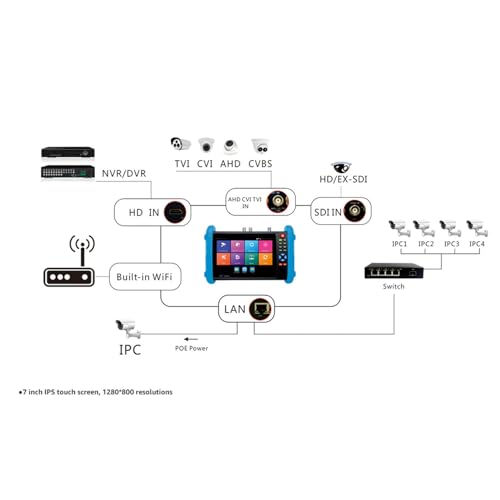

One Screen Dual Display: Testing both network and analog cameras simultaneously.
IP Camera Testing: (with PTZ pan tilt control), ACTi, for IPC HFW2100P, for DS 2CD864 E13, for Samsung SNZ 5200, for TD NC9200S2, for IPC120L, for HICC 2300T, for IP5000 BC 13MP IRS06 13MP, for IPC, for Kumkang8900, for BY 1080Q, for WEISKY IPC, and more than 80 brand cameras. Customizable.
Lens Simulation: Simulate the display area of the 2.8, 3.6, 4, 6, 8, 12, 16, 25mm lens image.
Focusing Information Testing: Camera focusing information, transmissionquality, image quality testing.
IP Exploration: Searching for camera IP addresses across the entire network segment
Speed: Automatically log in to play images, activatecameras with 1 click, modify IP and other parameters, generate test reports, etc.
ForTesting Tool: forcamera 1 click activation, image testing, and the ability to modify parameters such as username, password, and IP.
For Dahua Testing Tool: for Dahua camera image testing, supports batch activation of for Dahua cameras, and can modify parameters such as username, password, and IP.
SDI2.0 VideoTest:
1 channel HD SDI, EX SDI, 3G SDI IN BNC input, with a resolution of 720p 25, 30, 50, 60fps,
1080p 25, 30, 50, 60fps, 1080i 50, 60fps, EX SDI 2560 x 1440P 25, 30FPS, 3840 x 2160P 25, 30Fps
