Fafeicy 5-Port Stainless Steel Air Reservoir Tank 1.25MPa

Fafeicy 5-Port Stainless Steel Air Reservoir Tank 1.25MPa, High Pressure Air Tank 10L 1/2 1/4NPT, for Automotive Energy Storage Tanks, Air Source Treatment Components

• Gas Storage Tank can be used in Industrial production, automotive energy storage tanks, vacuum buffer tanks.
• Stainless Steel Air Tank is with 10L capacity, can withstand 1.25MPa pressure and has good performance.
• Air Reservoir Tank is made of high-quality 304 stainless steel sheet, strong and durable, beautiful and practical.

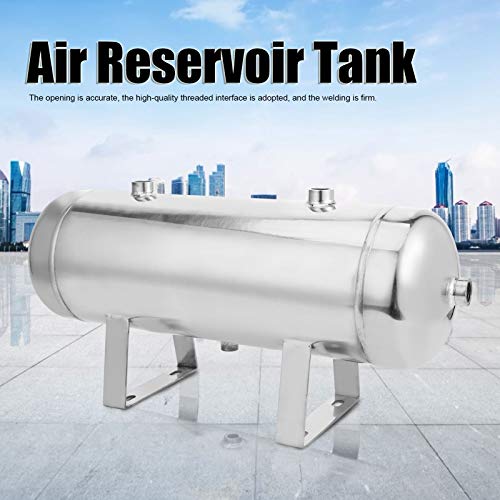

• Gas Storage Tank is strong argon arc welded, high-quality threaded interface, accurate opening.

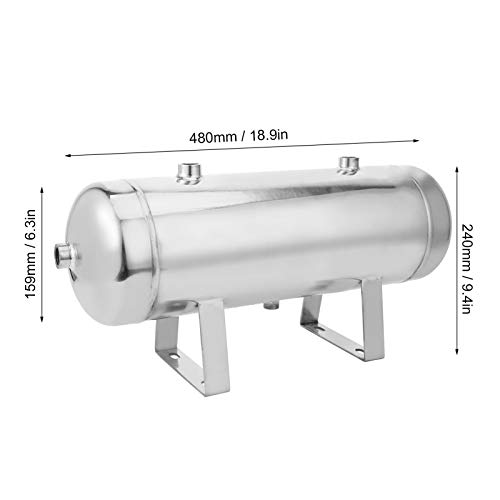

• Air Reservoir Tank Parameters: Tank Diameter: 159mm. Length:480mm. Height: 240mm. Upper Through Hole: NPT 1/2in. Bottom Through Hole: NPT 1/4in. Head Through Hole: 1/2in.

Specification:
Color Classification: Brushed
Material: 304 stainless steel
Capacity: 10L
Medium: Air

Applicatipons:Industrial production, automotive energy storage tanks, vacuum buffer tanks

Using Instructions:
1. The working pressure of the gas storage tank shall not be higher than the maximum working pressure of 1.25MPa, and the user shall be responsible for the consequences caused by overpressure use.
2. The gas storage tank is used in conjunction with the connecting parts (trachea joints, plugs, safety valves, pressure gauges, drain valves), and can only work after debugging.
3. The use of simple pressure vessels (gas storage tanks) does not require registration for use, and does not require periodic inspection within the recommended service life. The gas tank after reaching the recommended service life (7-10 years) should be scrapped.
4. The gas storage tank should be placed on a flat working surface to avoid cracks in the welded joint between the bracket and the simplified body during the vibration process, which may cause a safety accident.
5. The shell of the gas storage tank should avoid external impact or extra heavy pressure, and avoid corrosive materials contacting the shell or working in a corrosive environment.
6. The bottom drain valve of the gas storage tank should be opened regularly to drain the accumulated water to prevent inside the tank.
7. After the gas storage tank is put into use, the gas storage tank shall not be excavated and repaired by welding.

Package List:
1 x Air Reservoir Tank
