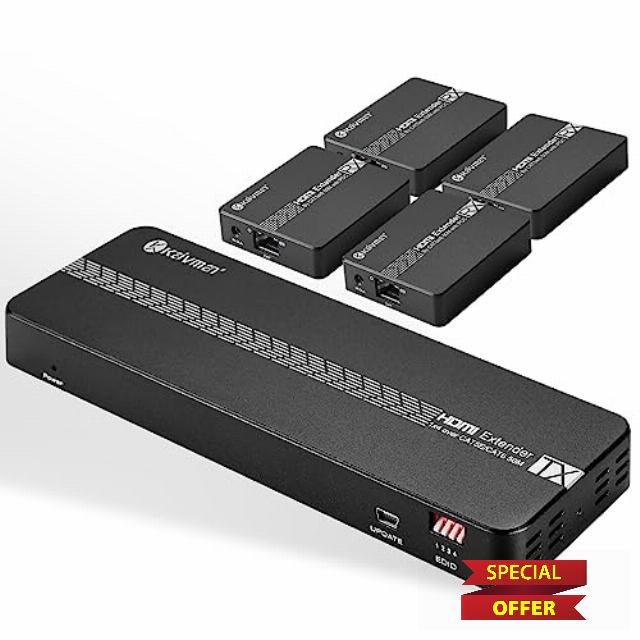

KAIVMAN 1×4 HDMI Extender Splitter Over Ethernet – Full HD 1080P HDMI Extender Over Single Cat5e/6 Cable with IR Remote Loop Out, 1 in 8 Out HDMI Extender Supports EDID PoC HDCP

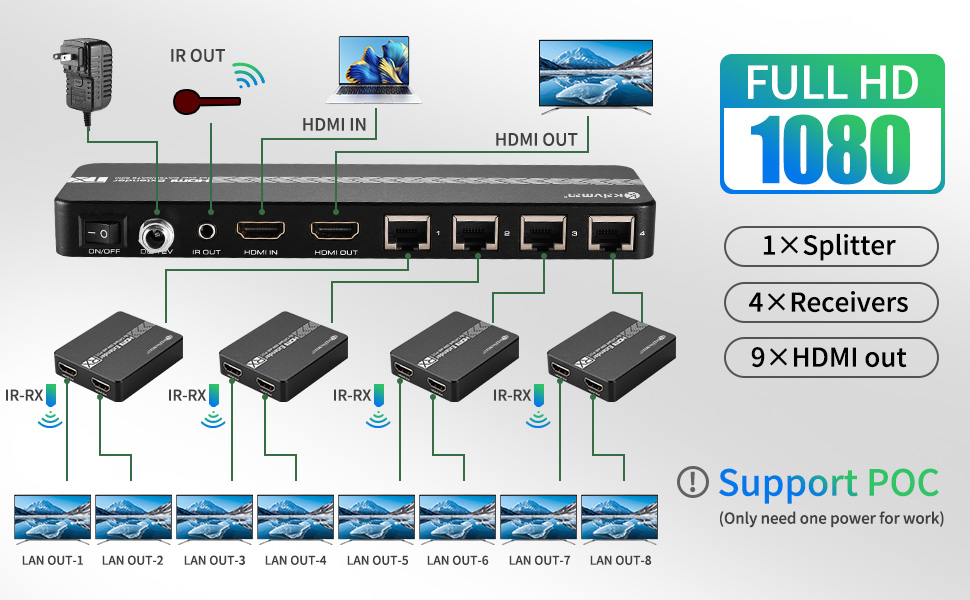

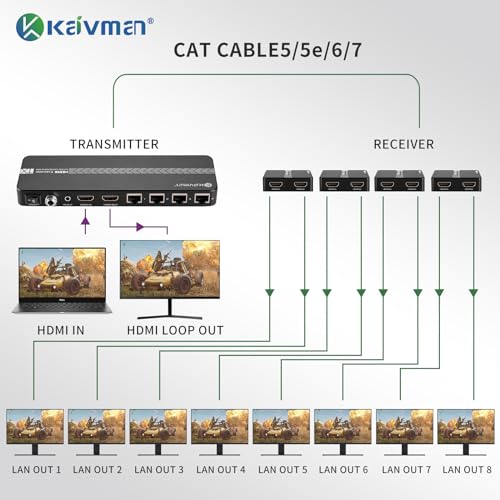

• 【HDMI Extender Splitter with PoC】KAIVMAN HDMI extender distributes 1 HDMI source to 9 HDMI displays over network cable simultaneously, resolution up to 1080P@60Hz. Splitter included – no Switcher needed – power over LAN cable – no adapters needed on receiver.
• 【1080P HDMI Extender Over Cat6 Cable】KAIVMAN hdmi extender over ethernet is equipped with 4 port Cat6 output. And 1 additional HDMI output to connect to a local display or monitor. Compatible with Cat5E/6/7 network cables. Signal transmission distance up to 196ft.
• 【IR Remote Control & EDID Function】HDMI extender with ir supports 20~60Hz IR pass back, control a DVD player or other HDMI video source from a remote location with the included IR cables. 1×4 hdmi extender splitter supports Auto/Manual EDID, please consult the user manual for a detailed EDID table.
• 【Plug & Play】Our HDMI extender splitter setup without any software installation. Sopports 1080p@60Hz@24 bit/pixels,supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio, Operates for TMDS clock frequencies up to 148.5MHz, UTP cable termination follows the standard of IEEE-568B,ideal solution for HDMI exhibition, video conference, meeting rooms and bars, act.
• 【High Quality&Best Service】This hdmi extender over ethernet has aluminum alloy metal enclosure that can effectively dissipate heat and minimizes EMI/RFI noise interference, avoid delays and lag caused by overheating of devices, safer, and has a longer life. Low heat generation and ESD protection guarantee higher stability. FCC, CE & RoHS compliant. Our products are backed with a lifetime warranty based in the USA.

---

Product Description

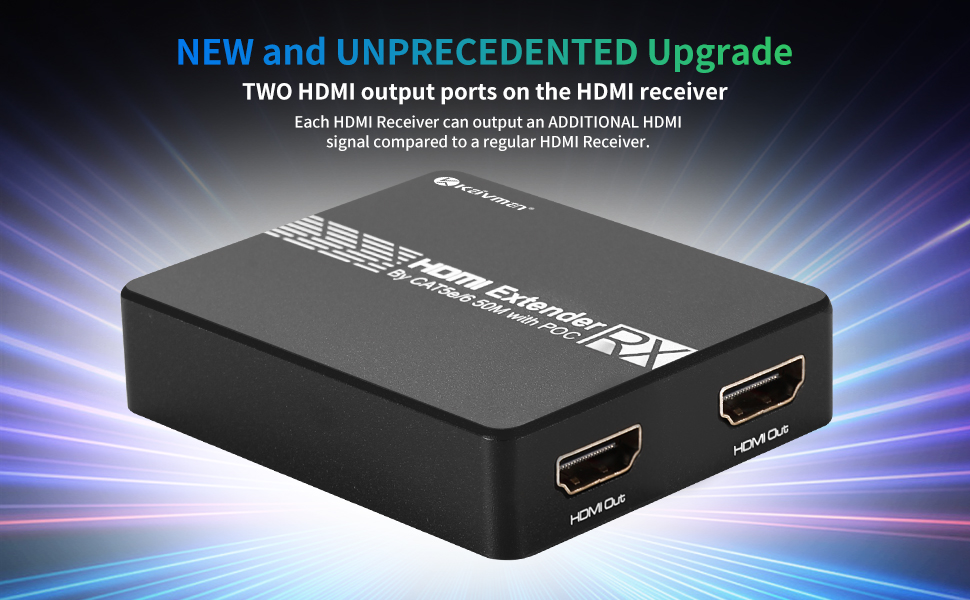

√√√EXCLUSIVE UPGRADE√√√: 2 HDMI ports on the HDMI Receiver, and one EXTRA loop-out on HDMI Transmitter, firmly support signal local output.

√Supports 1080P@60Hz and 3D visuals up to 196ft, Support DTS-HD/Dolby TrueHD/DTS/Dolby-AC3/DSD and video formats like 1080p/1080i/720p/576i/480p.

√Transmit digital audio and video signals with zero signal loss with Data transfer speed of 6.75Gbps

√Support EDID, compatible with various display devices, EDID has 8 modes with an automatic or manual resolution output.

√HDMI Transmitter can power HDMI Receivers via PoC.

√Use a single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long-distance transmission.

√UTP cable termination follows the standard of IEEE-568B.

Examples of use:

1）HDMI Extender for monitoring system: Camera→HDMI Transmitter→Ethernet Cable→HDMI Receiver→Monitor.

2）HDMI Extender for home audio and video: TV Box→HDMI Transmitter→Ethernet Cable→HDMI Receiver→TV.

3）HDMI Extender for exhibition hall projection: Computer→HDMI Transmitter→Ethernet Cable→HDMI Receiver→Projector.

Specifications:

Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.

PSU: 5V2A

Video Bandwidth: Single-link 165Mhz[4.95Gbps]

Video Support: 480i/480p/720p/1080/1080p@60

Transmission Range: HD[1080p 24-bitcolor]-up to 60m[196ft]

Input TMDS Signa: 3.3 volts

Input DDC Signal: 5.0volts/P-P

ESD Protection: Human Body Model:±8kv(air-gap discharge)±4kv(contact charge)

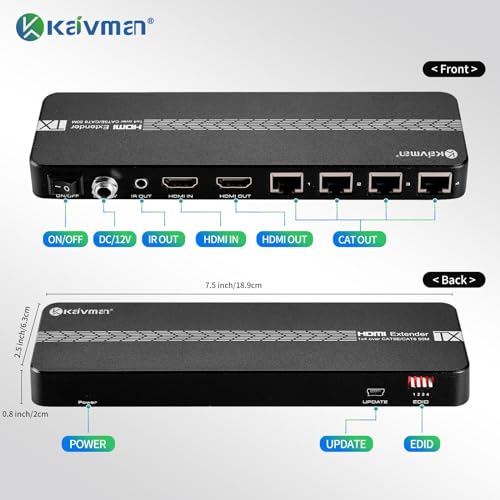

HDMI connector: Type A 19-pin female

RJ-45 connector: WE/SS 8P8C

3.5mm connector: (Transmitter and Receiver) IR Receiver/IR Blaster

Housing: Aluminum Enclosure

Power consumption: 1.5 watts(Transmitter): 1.0 watts(Receiver)
