15054-001 Actuator 101 Standard Electric Trim Tab Actuator

15054-001 Actuator 101 Standard Electric Trim Tab Actuator Compatible with lenco Marine – 12V, 2-1/4″ Stroke, 500-Pound Thrust

• 【High Quality Material】The actuator is constructed from durable, UV-resistant materials that can withstand the harsh elements. The 5/16" hole fits perfectly with the original ship's snaps to ensure stable installation and use .
• 【Unique Design】This actuator features a robust ballscrew design that provides double the power of typical hydraulic actuators. The powerful motor on actuator can easily push up to 500 pounds, ensuring that your trim tabs respond quickly and effectively.
• 【Perfectly Compatible】Perfect replacement for 15054-001 OEM parts.The 15054-001 actuator is 101 standard and features a 2.25-inch Stroke, 12V Voltage, 6-foot cable.Waterproof "Plug & Play" Deutsch connectors for easy installation and reliability.
• 【Easy to Use】The actuator's compact design makes it easy to install in even the tightest spaces on your boat. This is especially important for smaller boats or those with limited storage space.
• 【After-sale Service】Please check the size before ordering，If you have any problem during use, please feel free to contact us.We will be happy to help you within 24 hours.

›

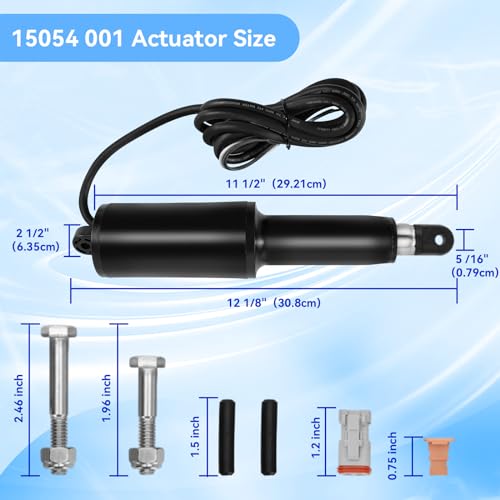

Specification:

12 volt DC operation
2 1/4 in stroke
12 1/8 in. overall length when fully retracted
11 1/2 in. pin to pin length
6 ft. cable
5/16 in top and bottom cap hole sizes

Features

Ballscrew design for reliable and twice the power compared to typical hydraulics
Tough, high-torque actuator motor that easily pushes 500 pounds
Waterproof “Plug & Play” Deutsch connectors that eliminate the possibility of water intrusion

Applications

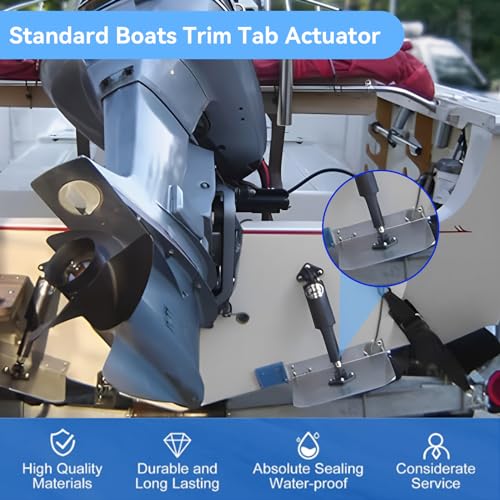

Boat trim tabs
Steering systems
Hatch lifts
Other marine applications
