165ft/50m OD-5mm Industrial TPU OM4 Fiber LC to LC Outdoor
165ft/50m OD-5mm Industrial TPU OM4 Fiber LC to LC Outdoor Armored Fiber Patch Cable, Duplex Multimode Fiber Optic Cable, 40G/100G, 50/125, OM4 LC-LC with Pulling Eye Kit Installed on one end

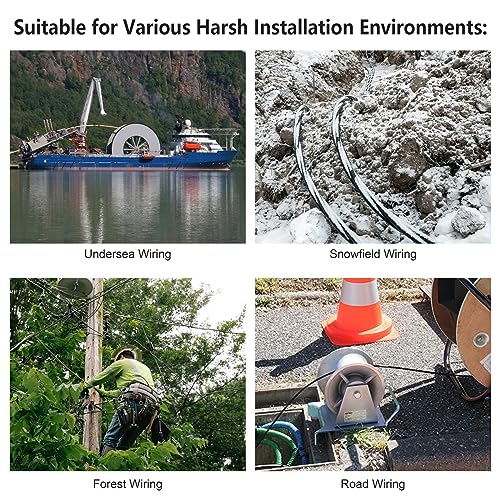

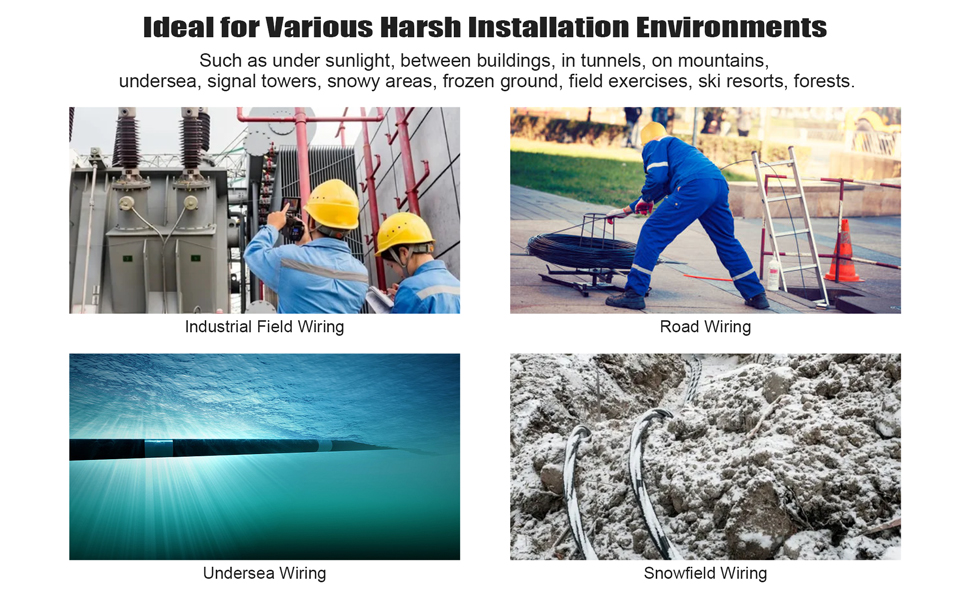

- Industrial OM4 Outdoor Fiber Optic Cable with TPU Jacket: TPU outer jacket features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.

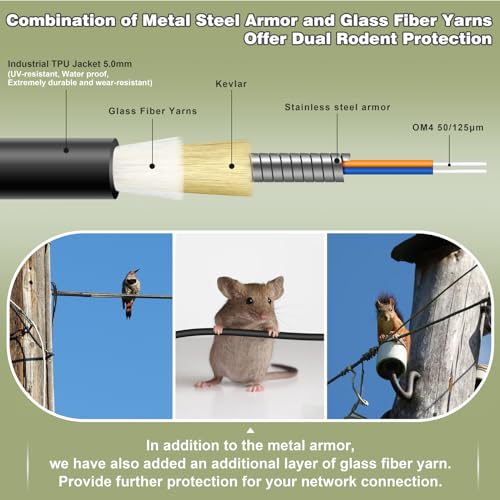

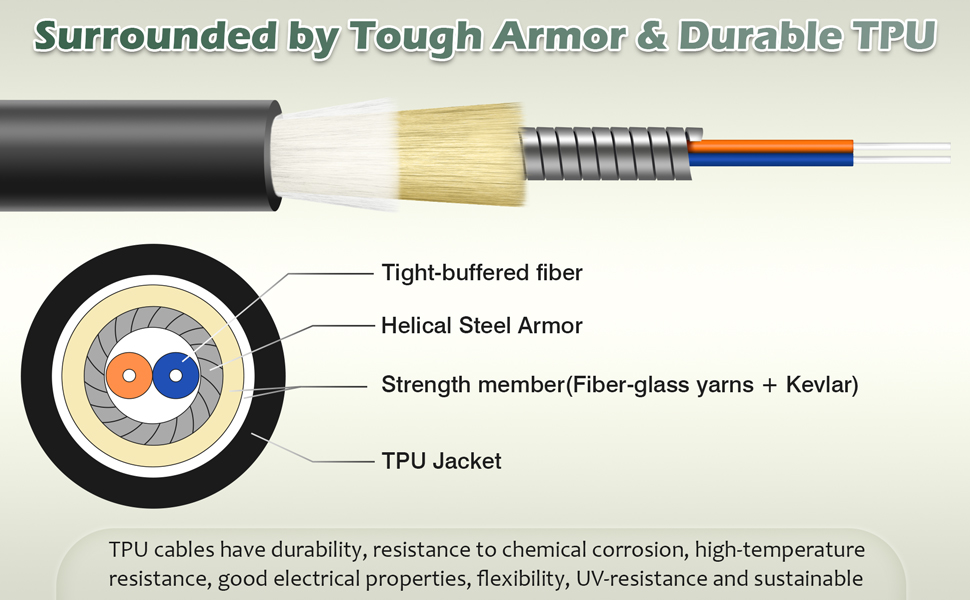

- Combination of Metal Steel Armor and Glass Fiber Yarns Provides Dual Physical Protection Against Rodents

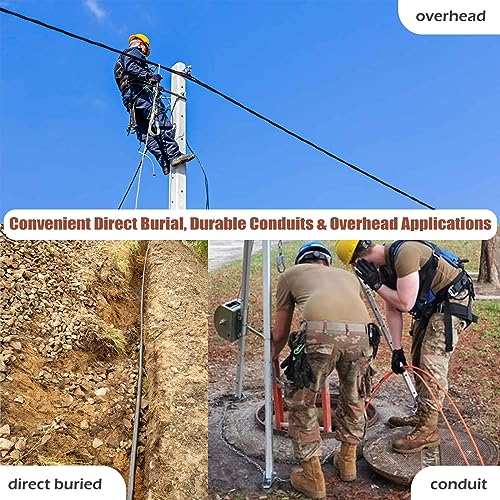

- Can be installed overhead, buried directly in the ground, or routed through conduits.

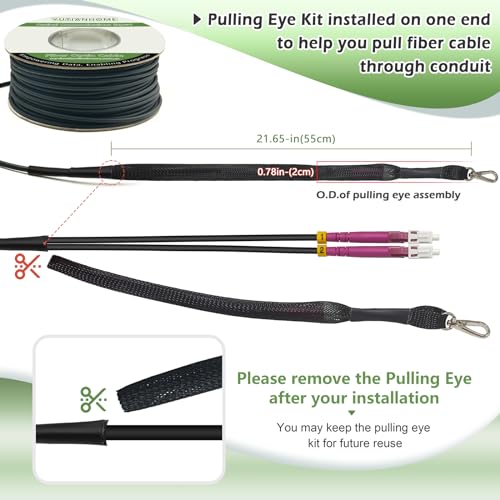

- Pulling eye Pre-Terminated OM4 LC Fiber cables: with swivel pulling eye kit installed on one end to eliminate cable damage during installation. You can remove the pulling eye kit after installation and keep it for reuse. The pulling eye kit is a must for any riser or plenum fiber installation
- 5.0mm Outer Diameter Armored Om4 LC: a larger diameter compared to 3.0mm cables: Thicker 5.0mm cables suitable for environments where the cable might be subjected to more wear and tear, such as outdoor installations, industrial settings, or areas with a higher risk of physical damage.
| SKU: | B0CMQKVZB6 |
Product Description
LC OM4 Multimode Harsh Environment Armored Industrial Fiber Optic Cable
| Connector Type | LC to LC |
| Polish Type | UPC to UPC |
| Fiber Mode | OM4 50/125μm |
| Fiber Count | Duplex |
| Fiber Grade | Bend Insensitive |
| Minimum Bend Radius | 20/10D (Dynamic/Static) |
| Cable Diameter | 5.0mm |
| Cable Jacket | TPU (Thermoplastic Polyurethane) |
| Tensile Resistance | 200/600N (Long/Short Term) |
| Crush Strength | 2000/3000 N/100mm (Long/Short Term) |
| Cable Color | Black |
| Wavelength | 850/1300nm |
| Insertion Loss | 10-100m≤0.3dB, 100-200m≤0.6dB, 200-300m≤0.9dB |
| Return Loss | ≥55dB |
| Maximum Tension of Pulling Eye | 245N |
| Operating&Storage Temperature | -40~80°C |
YUTIANHOME FIBER, a trusted and leading provider of comprehensive communication and high-speed network system solutions for customers in the networking, data center, and telecom industries.
 |  |  |  | |
|---|---|---|---|---|
| Industrial OM3 Cables | (Separate ends) Armored OM3 Cables | Standard Armored OM3 Cables | Uniboot Armored OM3 Cables | |
| Customer Reviews | 5.0 out of 5 stars 20 | 4.9 out of 5 stars 38 | 4.9 out of 5 stars 38 | 4.9 out of 5 stars 38 |
| Price | $219.99 | $96.99 | $29.99 | $98.99 |
| Cable Diameter | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Jacket | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
| Armored | ✓ | ✓ | ✓ | ✓ |
| Available Length | 5-300m | 1-300m | 1-300m | 1-300m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Indoor or underground with conduit | Indoor or underground with conduit |
 |  |  | |
|---|---|---|---|
| Industrial OS2 Cables | 3.0mm Armored OS2 Cables | 4 Fibers Industrial OS2 Cables | |
| Customer Reviews | 4.5 out of 5 stars 11 | 4.9 out of 5 stars 19 | 4.6 out of 5 stars 8 |
| Price | $45.99 | $15.99 | $99.99 |
| Cable Diameter | 5.0mm | 3.0mm | 5.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 4 Fibers |
| Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 |
| Jacket | TPU | LSZH | TPU |
| Armored | ✓ | ✓ | ✓ |
| Available Length | 5m-10kilometer | 1m-10kilometer | 50-150m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -40 to 80°C (-40 to 176℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |
