800W Micro Inverter Solar Grid Tie IP65 WiFi Control

800W Micro Inverter Solar Grid Tie IP65 WiFi Control 120/230V Automatic Identification Power Inverters

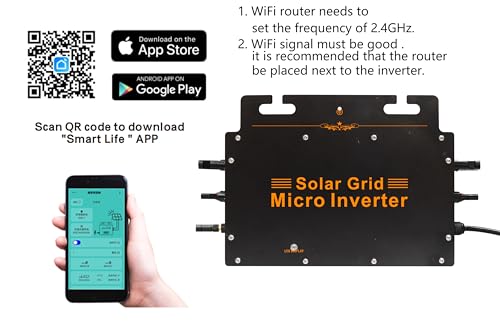

【High Efficiency】:120/230V Automatic Identification. It can be operated and monitored remotely via WiFi or cell phone APP. 1. WiFi router needs to set the frequency of 2.4GHz. 2. WiFi signal must be good (it is recommended that the router be placed next to the inverter).
【MPPT】:Micro grid connected inverter can control each component in parallel independently and safely. Maximum power point tracking function, effectively tracking and locking the maximum output power of solar panels. The static MPPT efficiency is 99.80%. The efficiency of dynamic MPPT on cloudy days is 99.76%

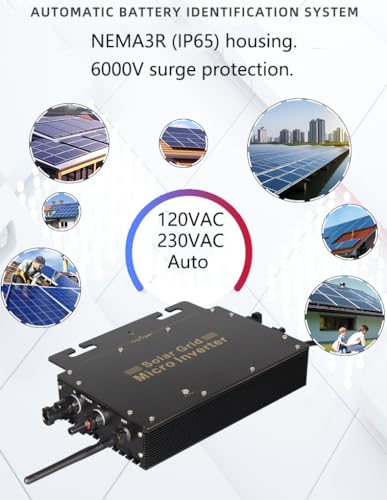

【High reliability】:NEMA3R (IP65) housing. 6000V surge protection.

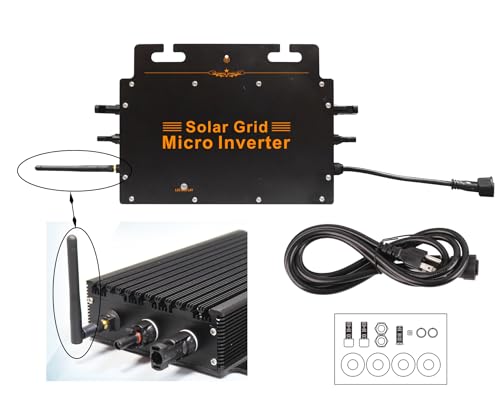

【Packing List】: 1*Solar Grid Micro Inverter, 1*Grid Connection Cable, 1*Antenna, 1*Screw Package.
【Convenient Operation】:Please read the manual before use. This product comes with a five-year warranty and prompt after-sales service. Any questions about the product can be directed to customer service at any time.

“1 in 1 unit solar grid micro inverter” with an ultra wide DC input operating voltage range

(18V-55V) and low startup voltage (only 18V).

This product is a 1-in-1 unit solar grid microinverter, a reliable solution for odd panel PV systems with a high CEC-weighted efficiency of 92.50% (peak efficiency 92.70%).

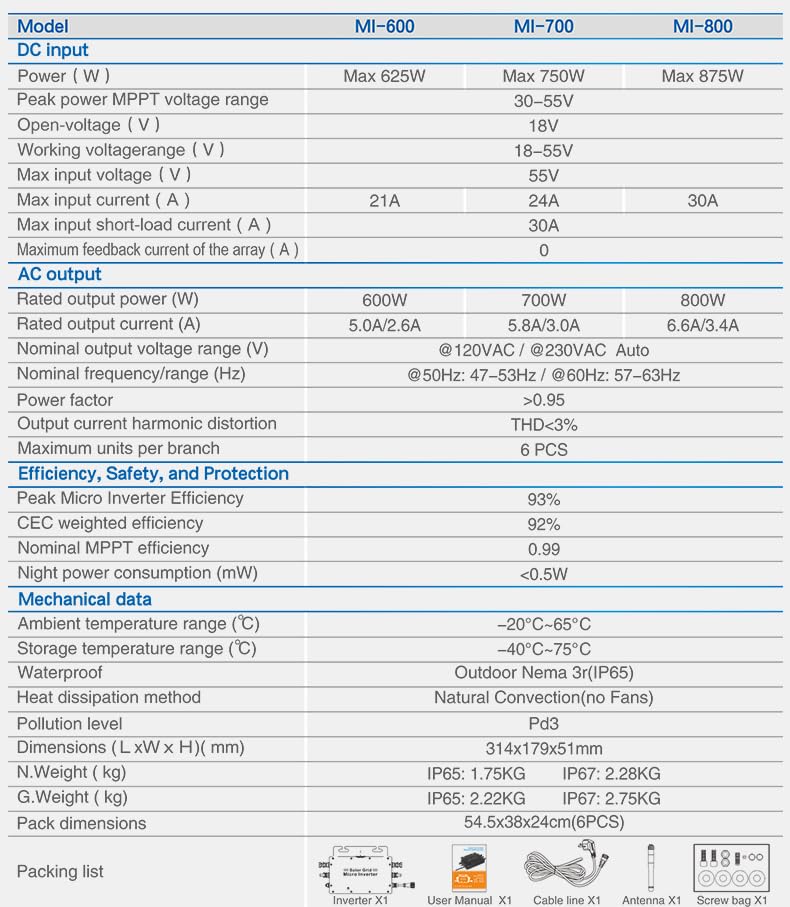

Model: MI-800

Power: Max 875W

Peak power MPPT voltage range： 30-55V

Open-voltage： 18V

Working voltagerange： 18-55V

Max input voltage： 55V

Max input current：30A

Max input short-load current：30A

Maximum feedback current of the array： 0 A

Rated output power ：800W

Rated output current：6.6A/3.4A

Nominal output voltage range： @120VAC/@230VAC Auto
