Solar Micro Inverter, Waterproof Wvc-2000W Grid Tie Mppt Pure Sine Wave 120 230V Automatic Identification Power Inverters Solar Grid Tie Micro Inverter

• ►【POWERFUL MPPT ALGORITHM】 The product's built-in MPPT (Max. Power Point Tracking) optimizes power collection from the solar panel and precisely captures and locks the maximum output power point to significantly increase power generation to more than 25%.
• ►【WIDE VOLTAGE INPUT】 The input and output are completely isolated, the electricity is safer, the output voltage mode 120V and 230V automatically adapt. Reverse power transmission, can be operated and monitored through WiFi or mobile APP, which can greatly improve the overall efficiency.
• ►【HIGH EFFICIENCY AND ANTI-INTERFERENCE】 The inverter dial fast using high-frequency switching power supply technology and 32-bit DSP fully digital SPWM control technology provides the product with excellent anti-interference capability, high-speed computing capability, and intelligence.
• ►【REVERSE POWER TRANSMISSION】 The 99.5% efficient reverse power transmission technology transmits the power in the reverse direction in grid-connected output mode while automatically detecting the load in the circuit and prioritizing its use, which greatly improves transmission efficiency.

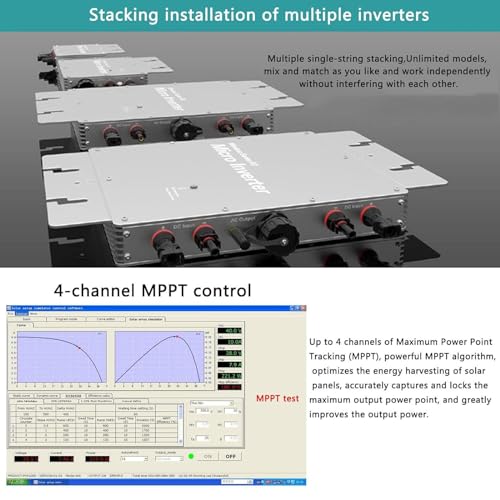

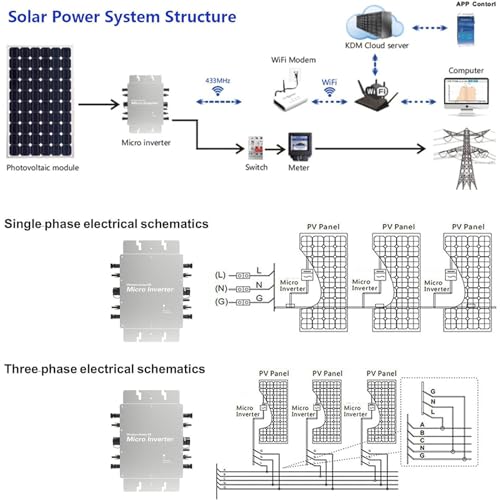

• ►【FLEXIBLE INSTALLATION】 This inverter can be stacked in any number of units, forming a single-phase parallel stacking system or easily forming a three-phase system to provide three-phase AC power, which you can install according to your specific needs.

An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. This microinverter makes it easier. Made of fine aluminum alloy, this IP65 waterproof inverter has a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you.

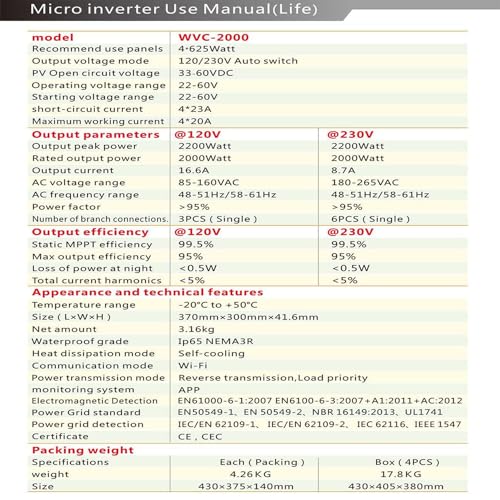

SPECIFICATION:
Item Type: Grid Tie Micro Inverter
Material: Aluminum alloy
Model: WVC-2000W
Recommend Use Component: 4 x 625W
Output Voltage Mode: 120V or 230V automatic adaptation
Solar Panel Open Circuit Voltage: 33-60V
Power Tracking Voltage: 22-60V
Minimum and Maximum Start Voltage: 22-60V
Maximum DC Short Circuit Current: 4 x 23A
Maximum Input Working Current: 4 x 20A
Operating Temperature Range: -20℃-+50℃
Waterproof Rating: IP65
Cooling Method: Self cooling
Power Transmission Mode: Reverse transmission, load priority use

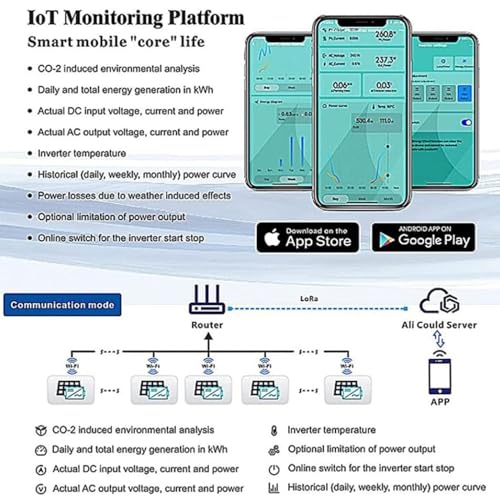

Communication Mode: WiFi
Monitoring System: Mobile APP
Product Size: Approx. 37*30*41.6cm/14.6*11.8*16.4inch
Output Parameter 120V 230V
Peak Output Power: 2200W
Rated Output Power: 2000W
Rated Output Current: 16.6A 8.7A
Rated Voltage Range: 85-160VAC 180-265VAC
Rated Frequency Range: 47-52Hz 57-62Hz 47-52Hz 57-62Hz
Power Factor:>95%
Number of Connect Units Per String: 3Pcs(Single Phase) 6Pcs(Single Phase)
Static MPPT Efficiency: 99.50%
Maximum Output Efficiency: 95%

PACKING LIST:
1 x Micro Inverter
1 x AC cable
1 x English manual
1 sets fixing screw

SERVICE:
If you have any questions after receiving the package, please contact us as soon as possible, we will give you a satisfactory answer at any time.
