10200W Solar Hybrid Inverter All in One, 48V DC to 220V-230V AC Pure Sine Wave Solar Inverter with 160A MPPT Solar Charge Controller for Home Appliances, Work with Lead Acid & Lithium Battery

• 【All in one solar inverter】10.2KW 48VDC to 230Vac, off grid solar inverter with 160A MPPT solar charge and discharge controller. Maximum photovoltaic input power: 10200W; Photovoltaic operating voltage range: 90Vdc-450Vdc; Max PV no-load voltage: 500Vdc; Maximum PV charging current: 160Amp; Rated output current: 44.3Amp.

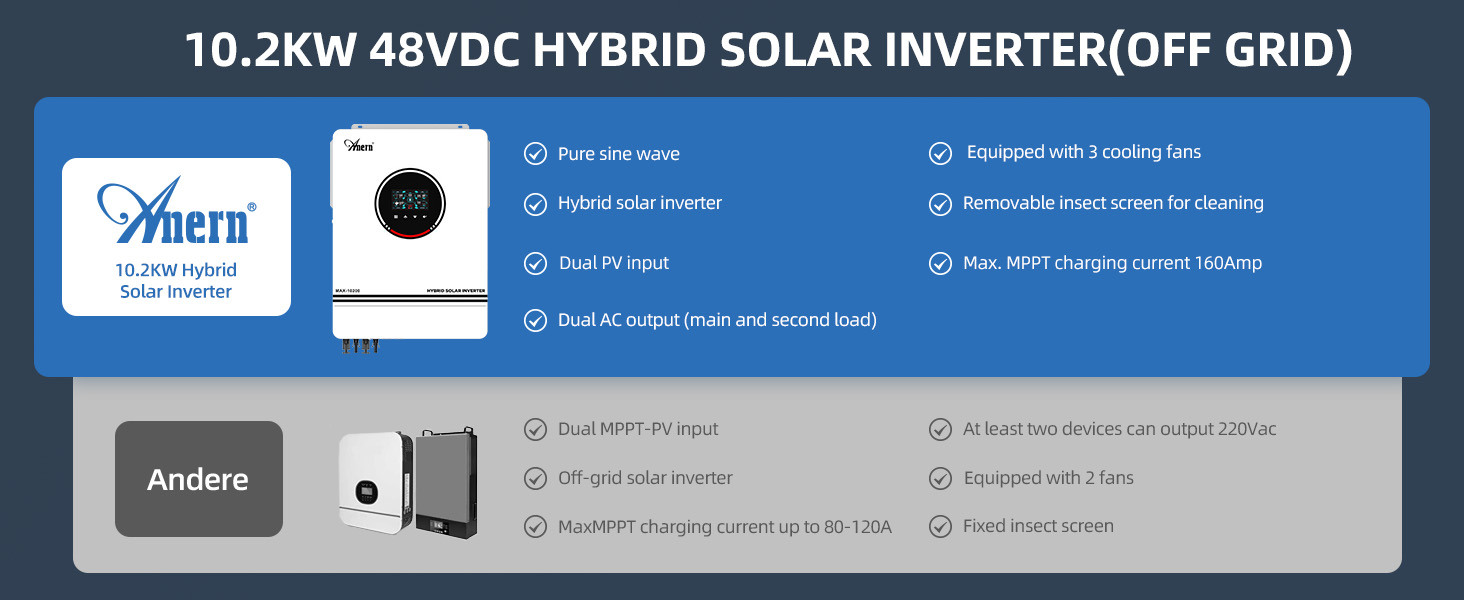

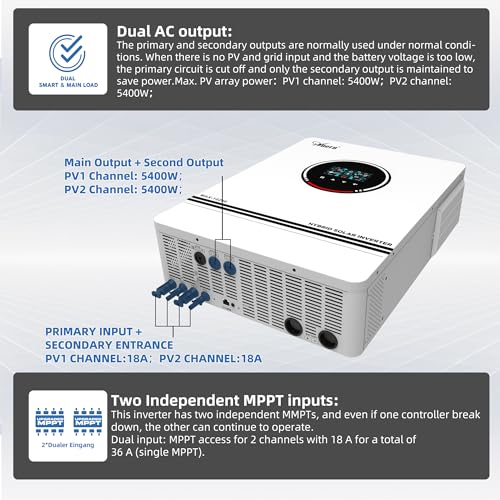

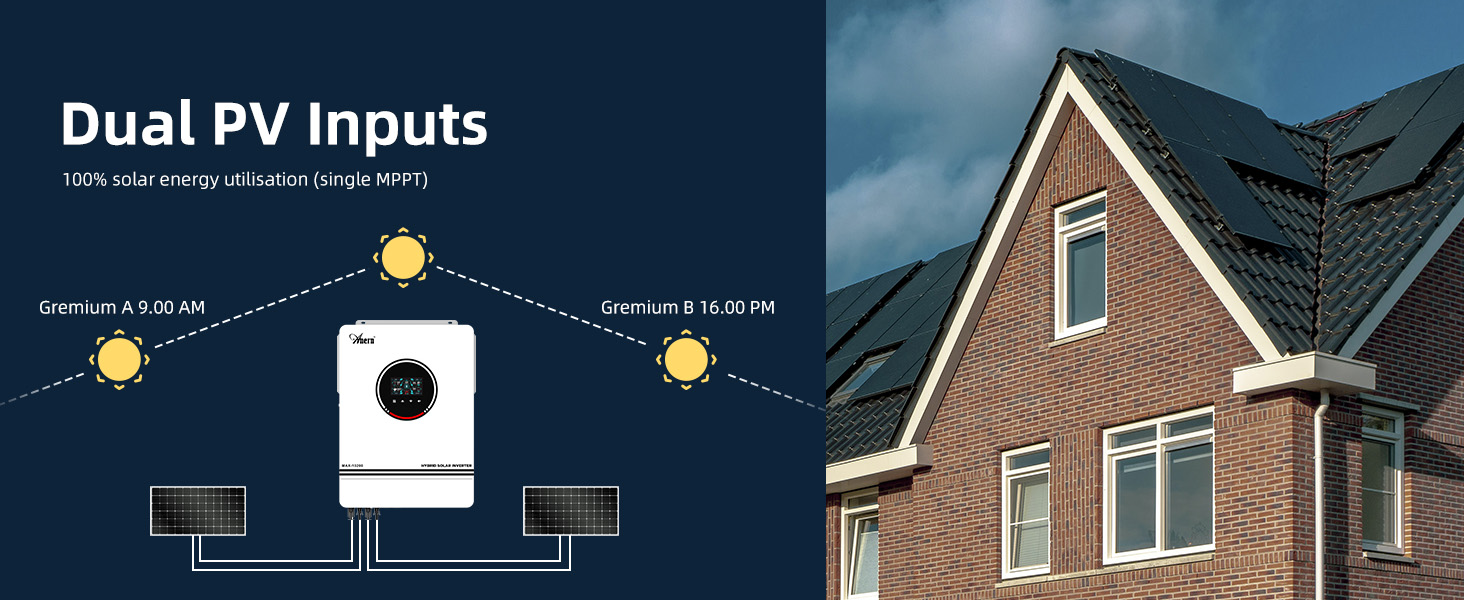

• 【Double PV Inputs/Double AC Outputs】Double AC Inputs – Unlike the single MPPT of the EXPRO, the dual inputs of the MAX have two independent MPPTs. Double AC outputs – Under normal conditions, the primary and secondary outputs are used normally. If there is no PV and mains power and the battery voltage is too low, the primary circuit will shut off and only the secondary output is maintained to save power.

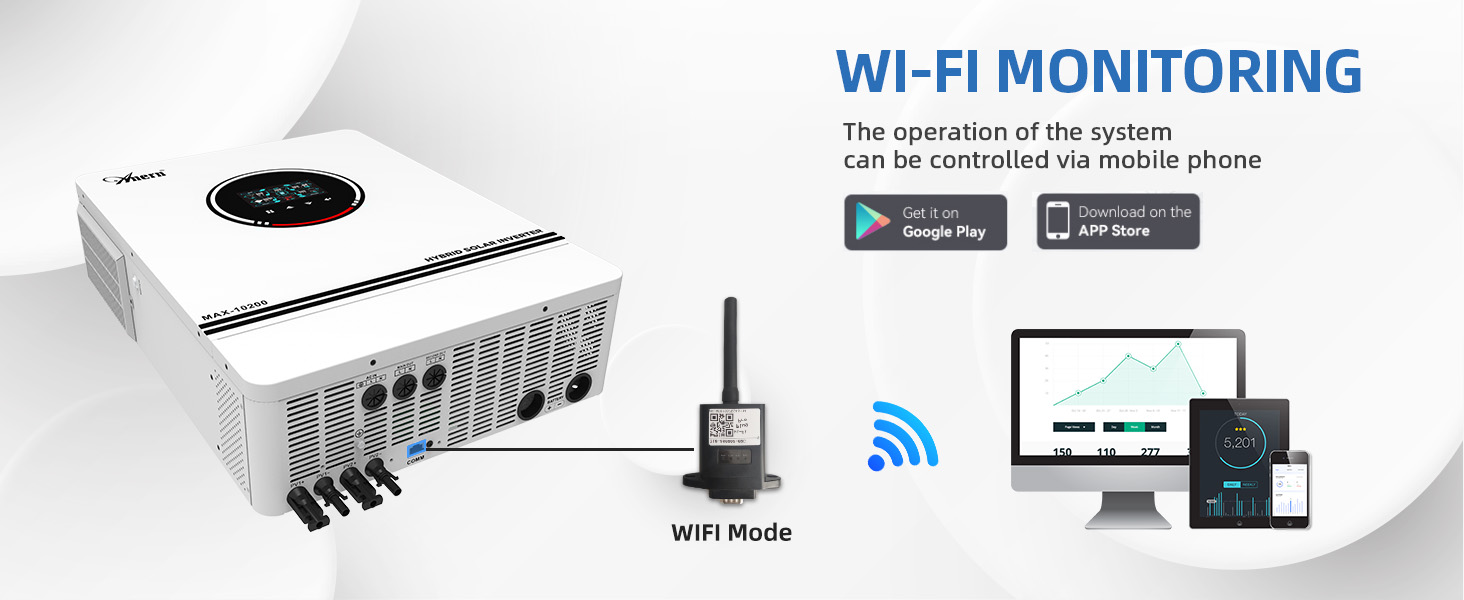

• 【Remote monitoring】the inverter supports WIFI/GPRS remote monitoring, so you can get the desired data and operate this solar inverter at any time. (WiFi module is included in the kit).

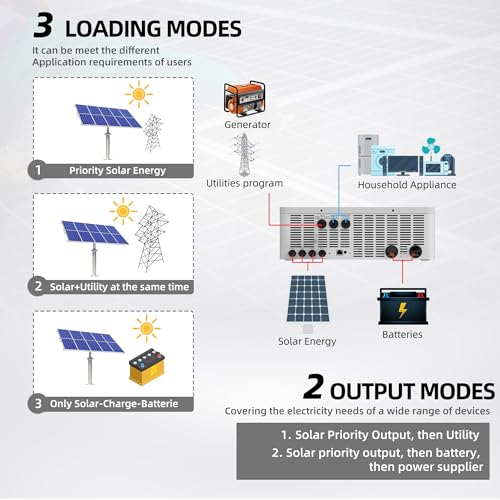

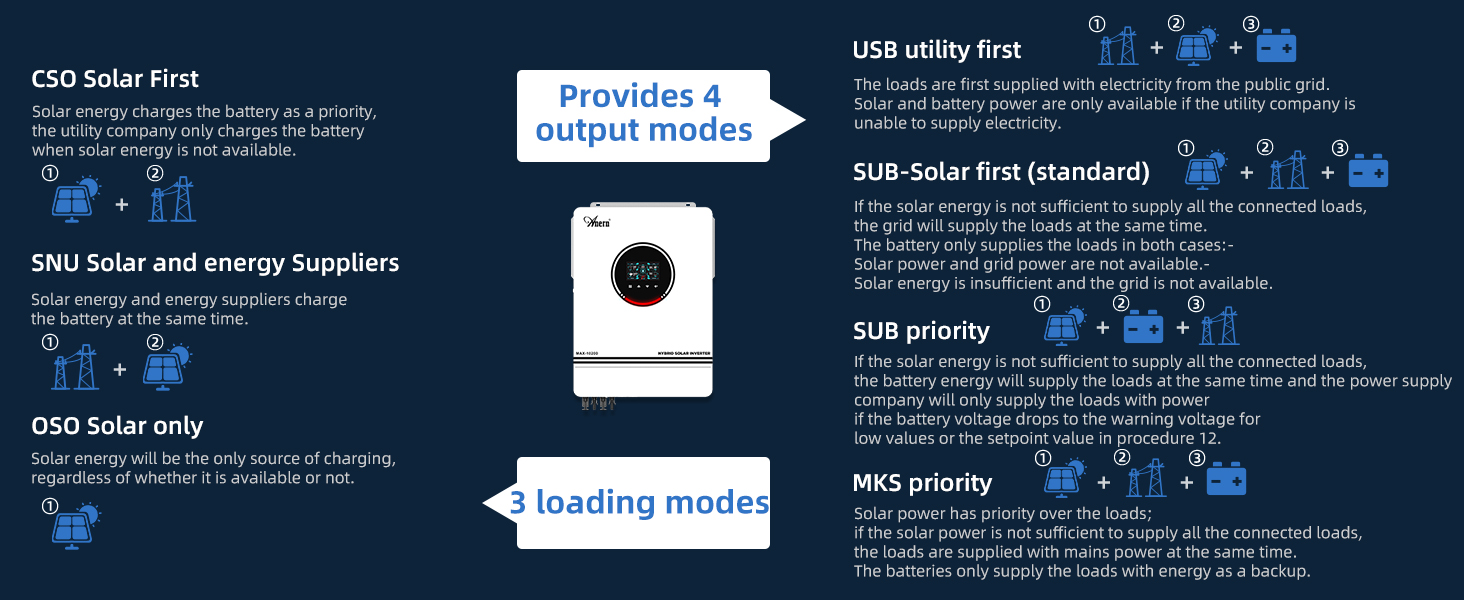

• 【Multiple Charging & Output Modes】 3 charging modes are optional: solar, solar and utility only, solar priority; Output modes: solar priority, utility priority, SBU mode. The solar inverter provides multiple charging and output modes to meet different user application requirements.

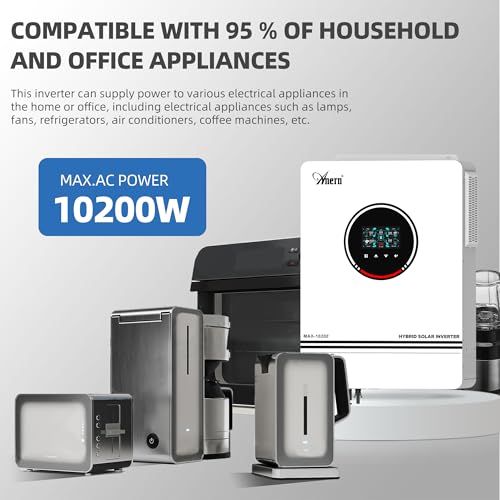

• 【Widely Use】This solar hybrid inverter adopts advanced pure sine wave technology, 48V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads.

---

Product Description

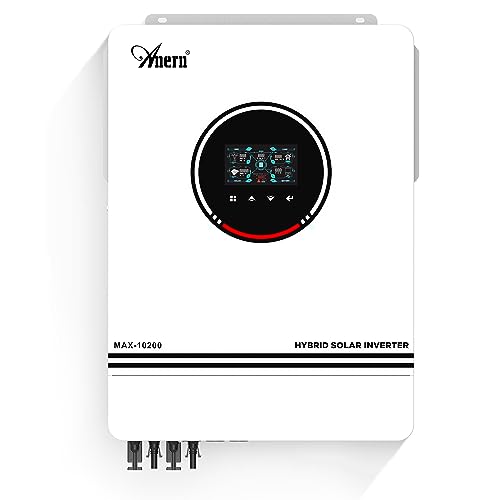

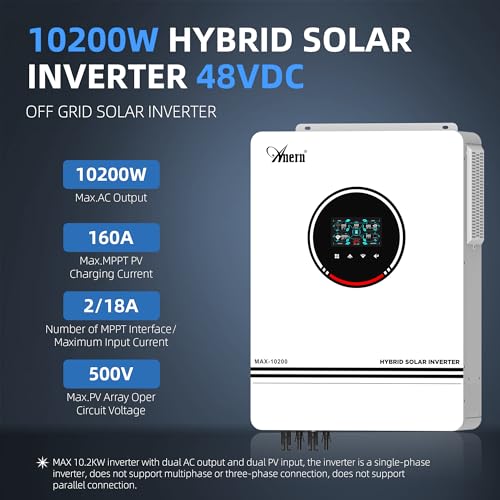

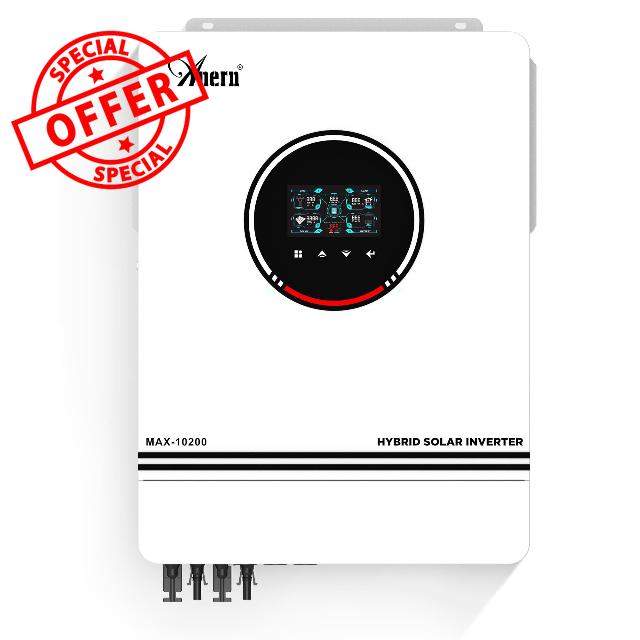

The MAX 10.2KW inverter has two AC outputs and two PV inputs, a new colour display for easier operation, the inverter is single-phase, does not support multi-phase or three-phase inverters, and does not support parallel connection.

Previous page

1.
2.
3.
4.
5.

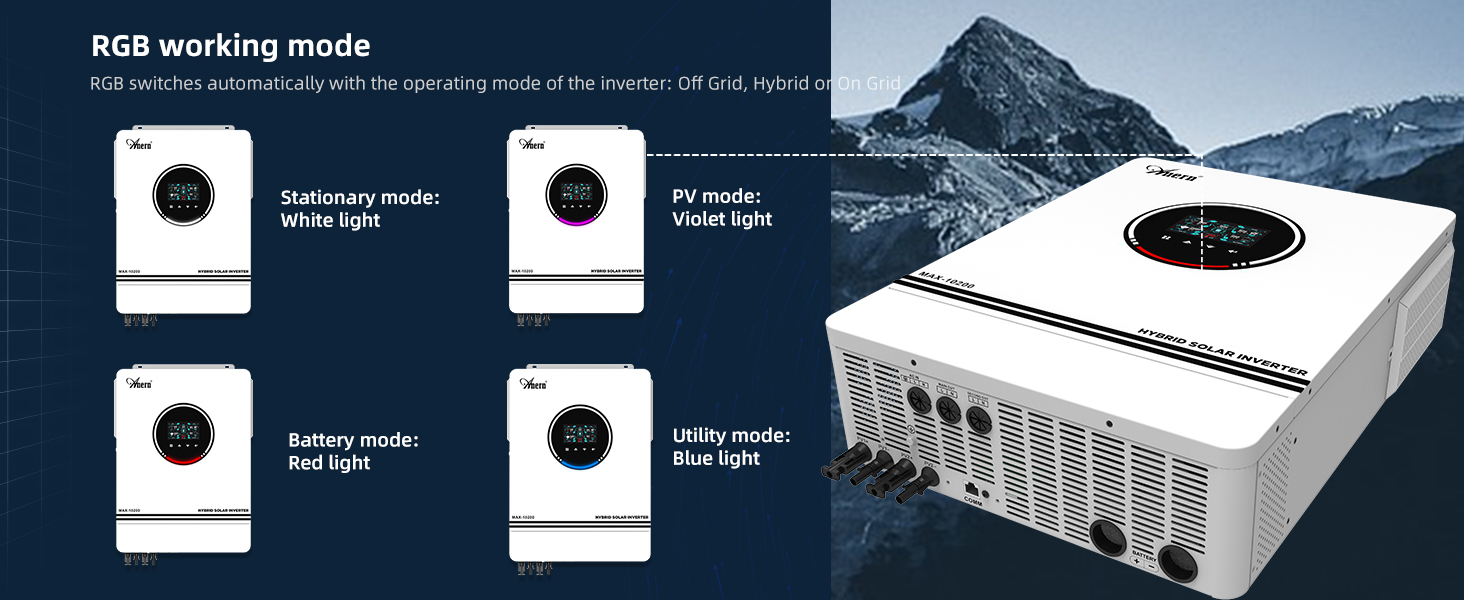

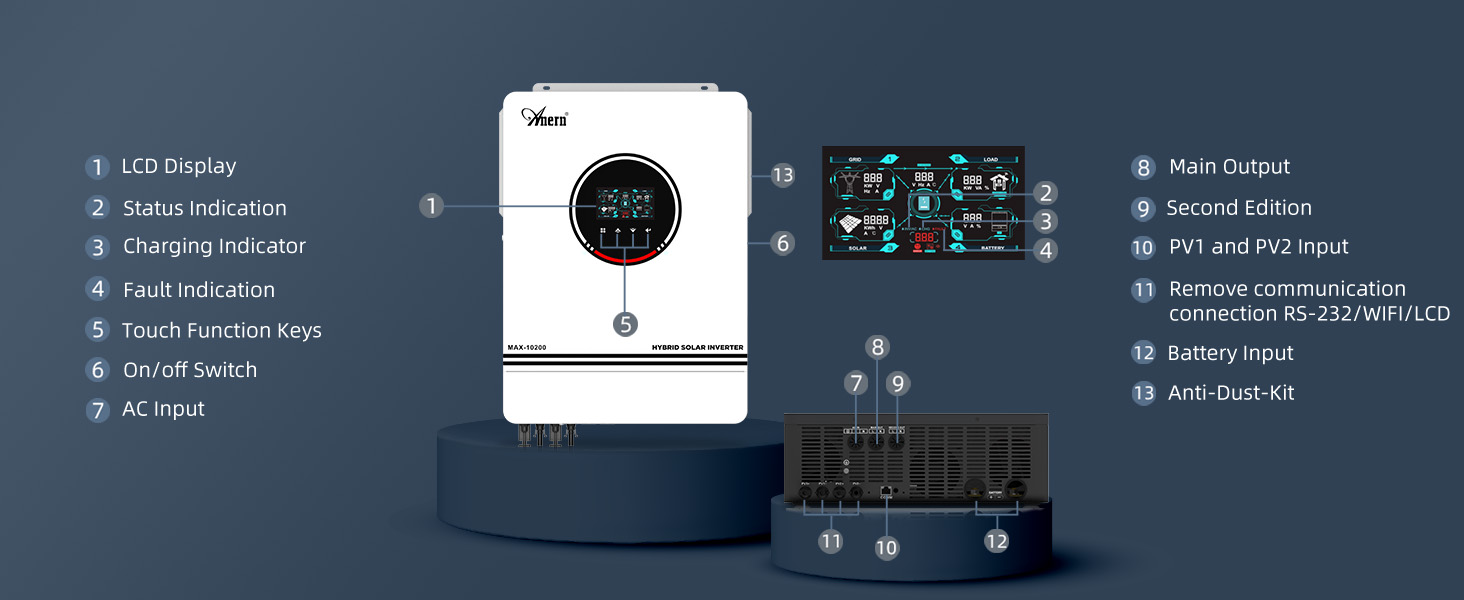

Next page1Double MPPT Input2Cooling System3Full Protection4Indicator Light5Remote Monitoring

INPUT AC	230VAC
Output frequency	50Hz/60Hz (automatic detection)
Maximum efficiency	98%
Transmission time	10ms typical（UPS）; 20ms typical（Apparatus）
Battery voltage	48 VDC
Waveform	Pure sine wave
Rated output power	10200W
MPPT PV voltage range	90-450Vdc
Maximum PV voltage	500Vdc
Maximum AC+PV charging time	160A
Maximum PV power	10200W
Accreditation	CE
No-load power consumption	>50W
Operating temperature	-10°C bis 50°C
Dimensions (D*W*H)	535*400*135(MM)
Net weight	16KG

Previous page

1.
2.
3.
4.

Next page1Product Overview2Inputs and Outputs3Simple Installation4New Upgrade

Suitable for Various Batteries

Does it support two-phase or parallel connections?

The MAX 8.2/10.2kw inverter is single-phase, it does not support two-phase, three-phase or parallel connections.

Are the dual inputs of the MAX 10200W/8200W two MPPTs?

All devices have two photovoltaic inputs, 10.2 kW for two independent MPPTs with 18 A each and 8.2 kW for one MPPT with a total output of 27 A.

How can the inverter be connected to the grid to supply power to the company?

When hybrid mode is selected, grid connection must be requested from the local authority, otherwise power cannot be supplied to the grid.

WIFI Notes / Unable to connect to WIFI.

*You must select the local node at the time of registration, do not select nodes abroad.

*The collector only supports 2.4G/HZ band, not 5G/HZ band;

*The router IP must be set to dynamic IP.

Can the inverter communicate with batteries?

Incompatible with other brands of BMS batteries and cannot communicate with other batteries. The inverter has only one communication interface (WIFI and communication with lithium batteries).
