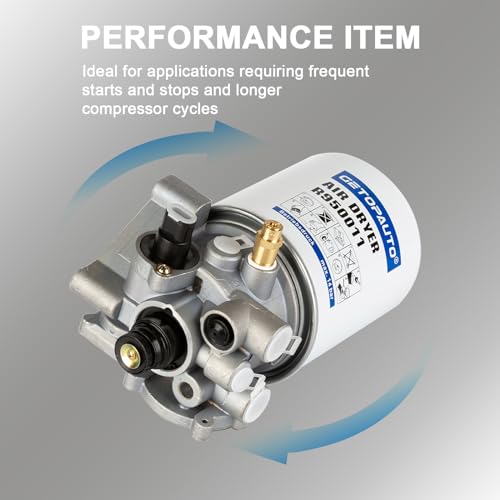

R955079 Air Dryer Direct Replacement with Coalescing

R955079 Air Dryer Direct Replacement with Coalescing Cartridge Replaces Meritor R955300 955300 955079 Haldex 955079CX

• 【Widely Applications】This 12V air dryer fits for system saver 1200P Series, is also compatible with Volvo, Kenworth, International, Western Star Trucks, it can be uesd as interior cab fresh air filter for Peterbilt.
• 【Replacement OE Number】 3915282, R955205, R955300, R955079, 85122949, 4324210090, 4324210337, 4324210487
• 【Features】It has integral governor, which simplifies plumbing and reduces overall installed cost. It includes two mounting surfaces to accommodate vehicle designs and compatible with latest engines and EPA emission control systems.
• 【High Quality】High quality air dryer assembly is engineered and tested to reach original equipment standards and performance, compatible with system saver 1200P series.

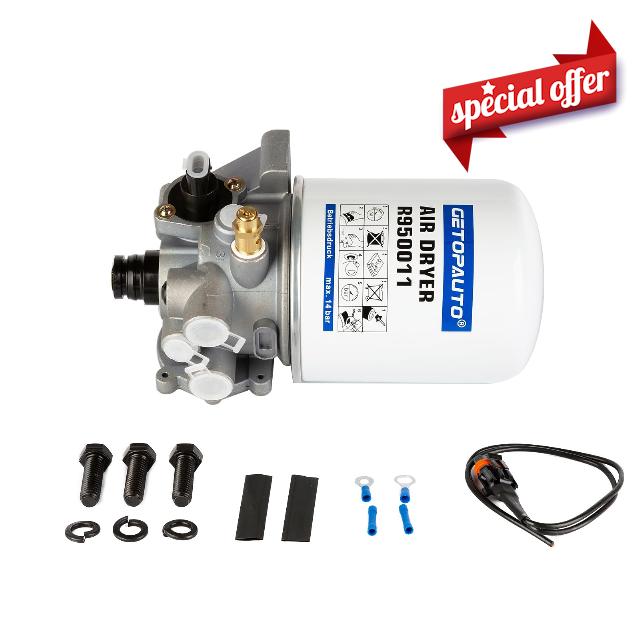

• 【Package】1 x Air Dryer System Saver 1200P, 1 x sensor, 1 x round terminal, 1 x hose, 3 x screws, 3 x gaskets and 2 x mating insulated center terminals. Note: *Before installation, please make sure the interface is correct and the exhaust port is clean.

›

SPECIFICATIONS
Supply:1/2″-14 NPT
Delivery:1/2″14 NPT
Control:1/4″18 NPT
Cartridge type:Desiccant and Oil separator Cartridge
Comments:Turbo-cut-off valve installed
Cut-out pressure:8.7 to 9.4 bar
Max.operating pressure:10.0 bar
Opening pressure:12.8 bar
Temperature range:-40C to +80C
Voltage:12 V
Calculated Volume (dm3):20.95
