Solar Grid Tie Inverter,1200W Micro Inverter with AC Data Monitoring Display Screen Waterproof IP65 for 30V 36V Solar Panel

• 【High Efficiency】The inverter has built-in high-precision maximum power point tracking, which can optimize the power collection from the solar panel, accurately capture and lock the maximum output power point, and greatly increase power generation to more than 25%. In addition, the efficient power reverse transmission technology can transmit the power that can not be used up to the grid in the reverse direction to other places for use, and the power transmission rate can reach 99.9%.

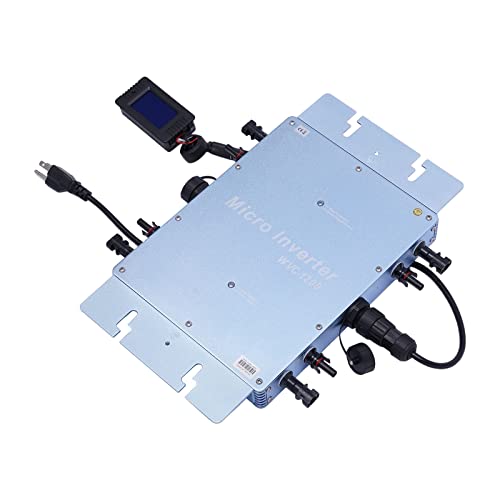

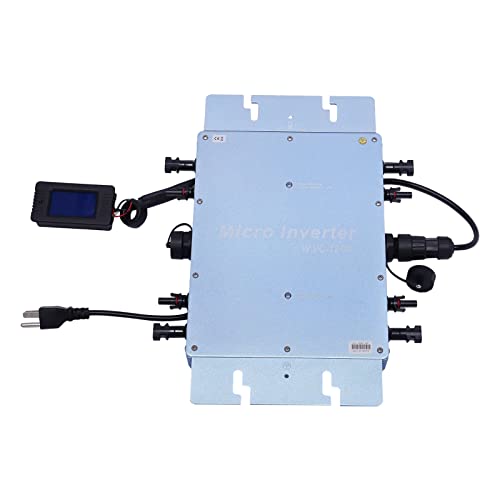

• 【LCD Display】The inverter is equipped with an LCD display screen to monitor voltage, power, frequency, current, etc. so you can see the machine clearly in operation.
• 【Electrical Isolation】The output and input of the system are completely electrically isolated, the insulation performance of the entire power distribution system is good, and the fully isolated booster circuit is safer and more reliable.
• 【Easy Maintenance】After the installation of the power station, you don't need to do maintenance work. After a long time, you only need to remove the dust on the photovoltaic panel.
• 【Small Footprint】With a size of 8.27*14.72*1.57inch, the inverter adopts high-frequency telephone, micro processing, and other technologies, so it is smaller, lighter, and won’t occupy too much space.

Description

An inverter can efficiently turn the direct current generated by solar panels into the alternating current used by household appliances. This micro inverter makes it easier. Made of fine aluminum alloy, this IP65 waterproof inverter has a wide range of functions, good safety, convenient installation, and high-cost performance. We believe this inverter will not disappoint you.

Details

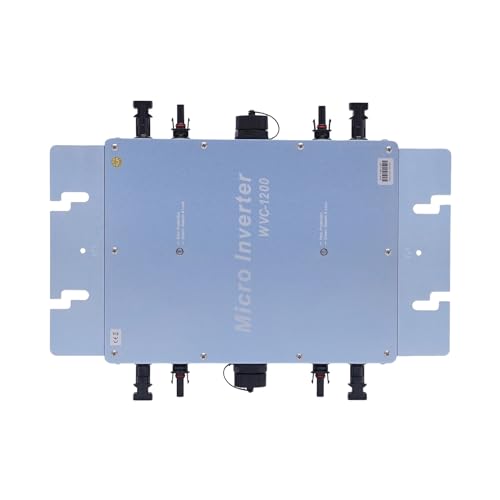

Gasket: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Heat Dissipation Holes: The inverter is provided with heat dissipation holes, which can play a good role in heat dissipation and prolong the service life of the inverter.

Application

This product is applicable to 30V or 36V solar panels, 36V batteries. The inverter can be widely used in residential or commercial areas for turning the direct current generated by solar panels into alternating current.

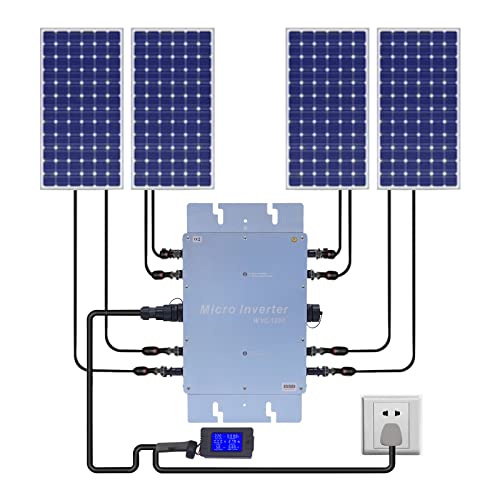

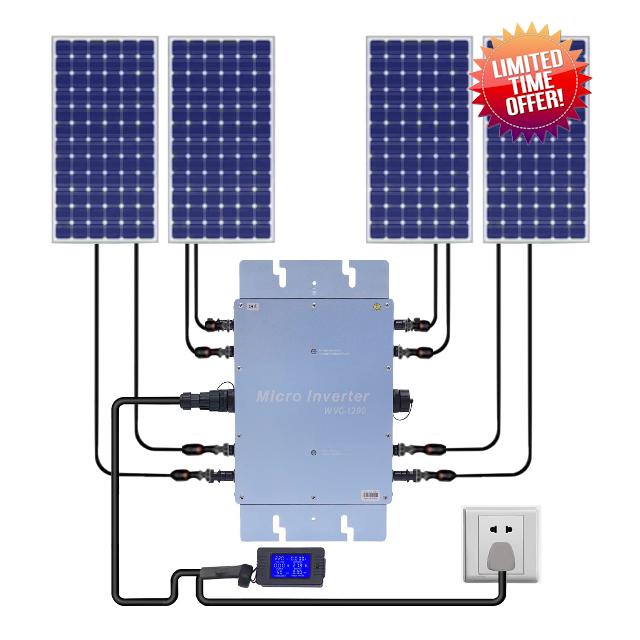

How to Use

Step 1: Install the inverter on the support of the photovoltaic panel with the screws provided by the machine.

Step 2: Connect the positive and negative poles of the DC connection plug on the photovoltaic panel to the DC input terminal of the inverter.

Step 3: Open the waterproof cover of the AC output interface of the inverter and connect the AC cable to the AC waterproof plug.

Step 4: Connect the AC output cable to the AC main cable.

Step 5: Repeat steps 1 to 3 to install and connect all inverters.

Step 6: Connect the AC main cable to the public grid and start your green energy journey

Specification

Model: WVC-1200W

Color: Blue

Material: Aluminium Alloy

Power: 1200W

Voltage: 110V

Plug Type: US Standard

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Min/Max Start-up Voltage: 22-50VDC

Maximum DC Short Circuit Current: 80A

Maximum Input Operating Current: 54.4A

Peak Power Output: 1200watt

Rated Output Power: 1150watt

Rated Output Current: 9.58A

Rated Voltage Range: 80-160VAC

Rated Frequency Range: 57-62.5Hz

Power Factor: ＞99％

Max Unit Per Branch Circut: 3pcs(Single-phase)

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Night Time Power Loss:
