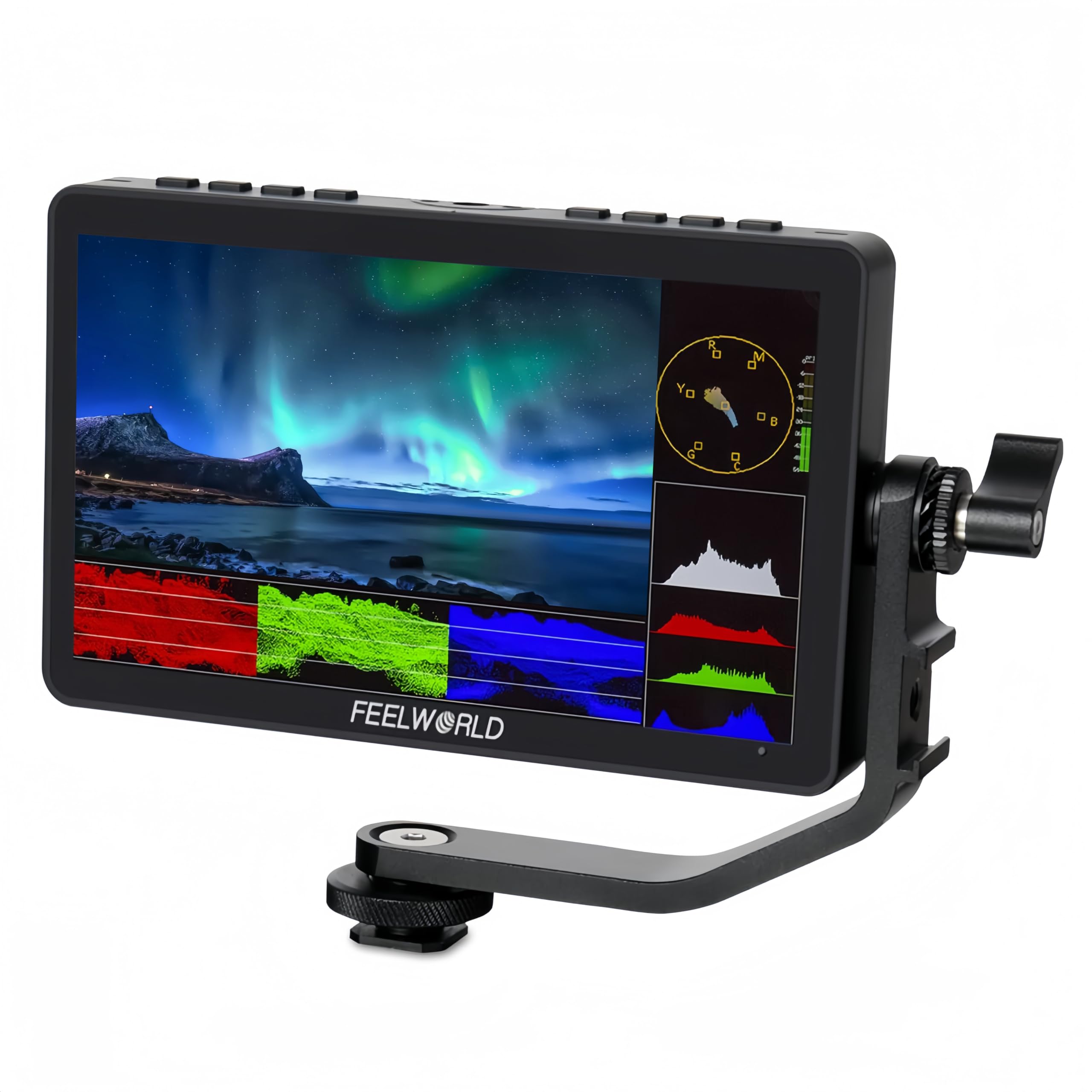

FEELWORLD F5 Pro V4 Camera Monitor 6 Inch Touch Screen

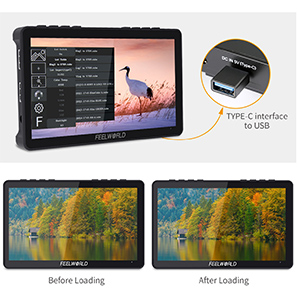

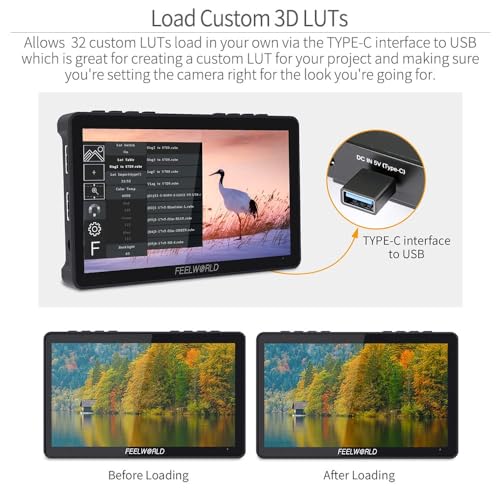

FEELWORLD F5 Pro V4 Camera Monitor 6 Inch Touch Screen with 3D LUT IPS 1920×1080 4K HDMI Monitor Input Output 5V Type-c Input Tilt Arm

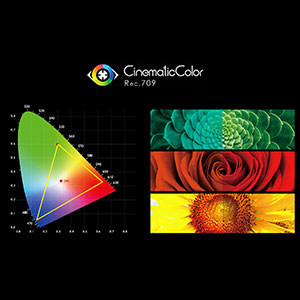

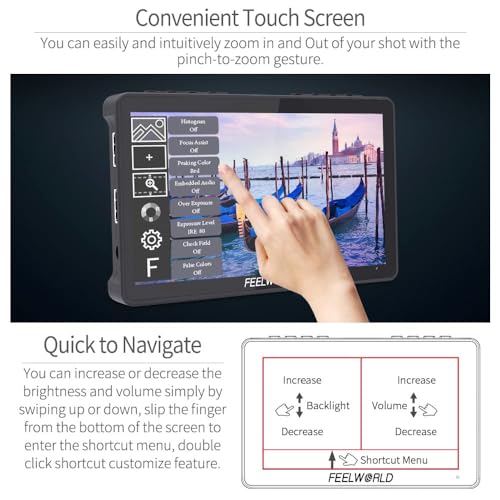

- 【Easy Touchscreen and Professional Color Calibration】Can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture. The F5 Pro provides a sharp image, with 500nit, native 1920×1080 high resolution, and REC-709 color calibration, making you enjoy sharper and richer color images.

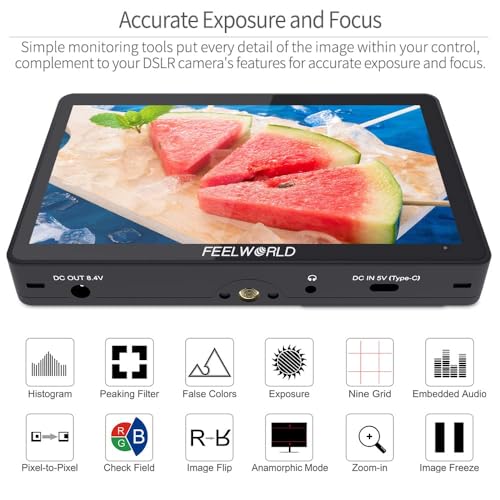

- 【Accurate Exposure and Focus】The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel-to-pixel, frame guides, nine grid etc. can help you with accurate exposure and focus.

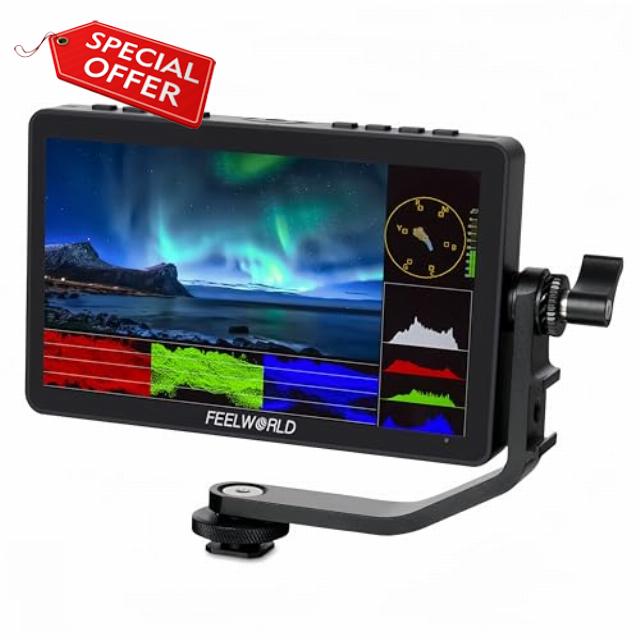

- 【Innovative functional design】 Designed for Every Situation: When attached to your camera, the size and weight of your monitor matter. We shaved F5 Pro V4 down to just 245g and added 1/4-20 screw mounts on top, bottom, and right for ease of cage, adaptor rigging, and tilt arm.

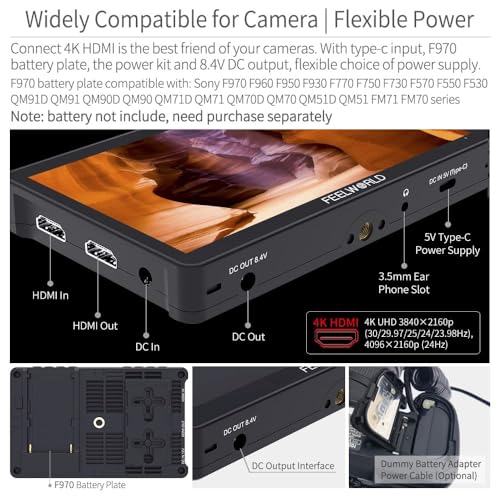

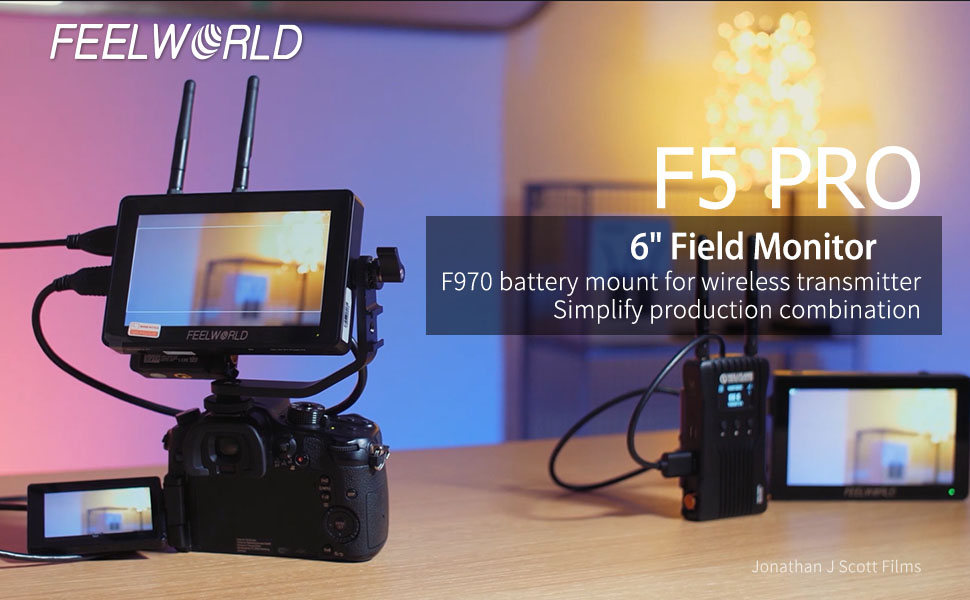

- 【Widely Compatible for Camera | Flexible Power】The F5 Pro has 4K HDMI in and loop-out, allowing it to not only display live signals but also send them out to other monitors simultaneously. With type-c input, F970 battery plate, the power kit and 8.4V DC output, flexible choice of power supply.
- 【Package Include】1× Micro HDMI Cable, 1× Sunshade, 1× Tilt Arm, 1× Disassemble Wrench, 1× Manual
SKU: | B0CJ8KYD35 |
Weight: | 10.4 ounces |
Dimensions: | 6 x 3 x 0.4 inches |
Batteries Required: | Yes |
Manufacture: | FEELWORLD |
Product Description




F5 Pro Spefications
Display Spec.
Model F5 Pro screen size: 6″ IPS touchscreen
Resolution: 1920×1080 pixels
Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
Aspect Ratio: 16:9
Brightness: 500cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
Input: 1 X HDMI, 1 X Type-C
Output: 1 X HDMI, 1 X DC Output
Audio: Stereo Headphone
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
Input Voltage: DC7~24V
Power Consumption: ≤9W
Power Connector: DC
Working Temperature: -20°C~50°C
Storage Temperature: -30°C~60°C
Install Way: ¼-20 thread points
Unit Size: 148Lx93Hx20D (mm)
Unit Weight: 245g

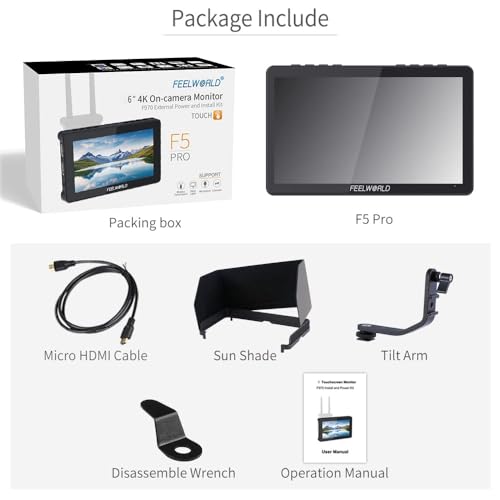

Package Include
- 1× Micro HDMI Cable
- 1× Sunshade
- 1× Tilt Arm
- 1× Disassemble Wrench
- 1× Manual
