Rsrteng CCTV Tester 8K 32MP 12MP IP Camera Tester,POE++ Max
Rsrteng CCTV Tester 8K 32MP 12MP IP Camera Tester,POE++ Max 60W POE Camera Tester 8MP TVI/CVI/AHD/SDI/CVBS Cable Tester DMM OPM VFL TDR Network Tools Laser Distance Meter Gigabit SFP Port HDMI WiFi

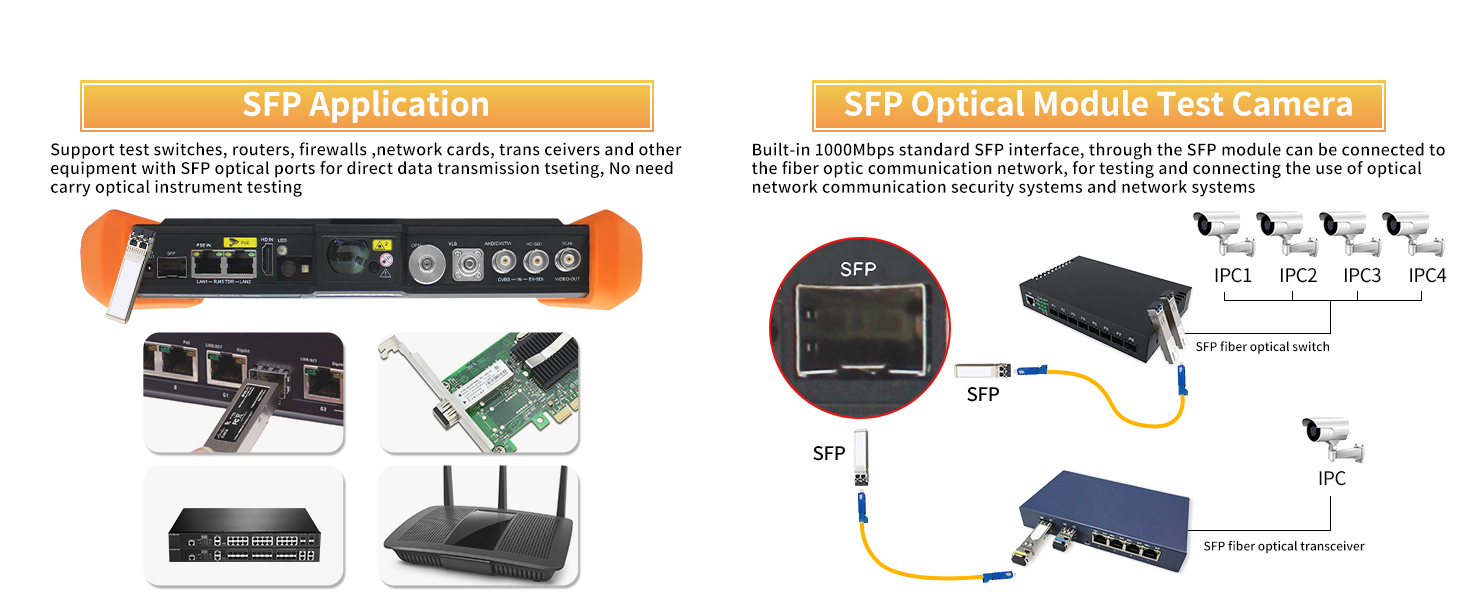

- 【POE++ MAX 60W Power Output&Distance Meter&Gigabit SFP Module】Rsrteng H12-MOVTADHSEF CCTV Tester support standard IEEE 802.3af & IEEE 802.3at and POE++,max 60W power output.Provide power supply for high-power PTZ speed dome camera.The Distance Meter supports multiple measurement modes,Measurement range 80m (262fts). Support testing record, select unit, export data to CSV file.1ch SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.

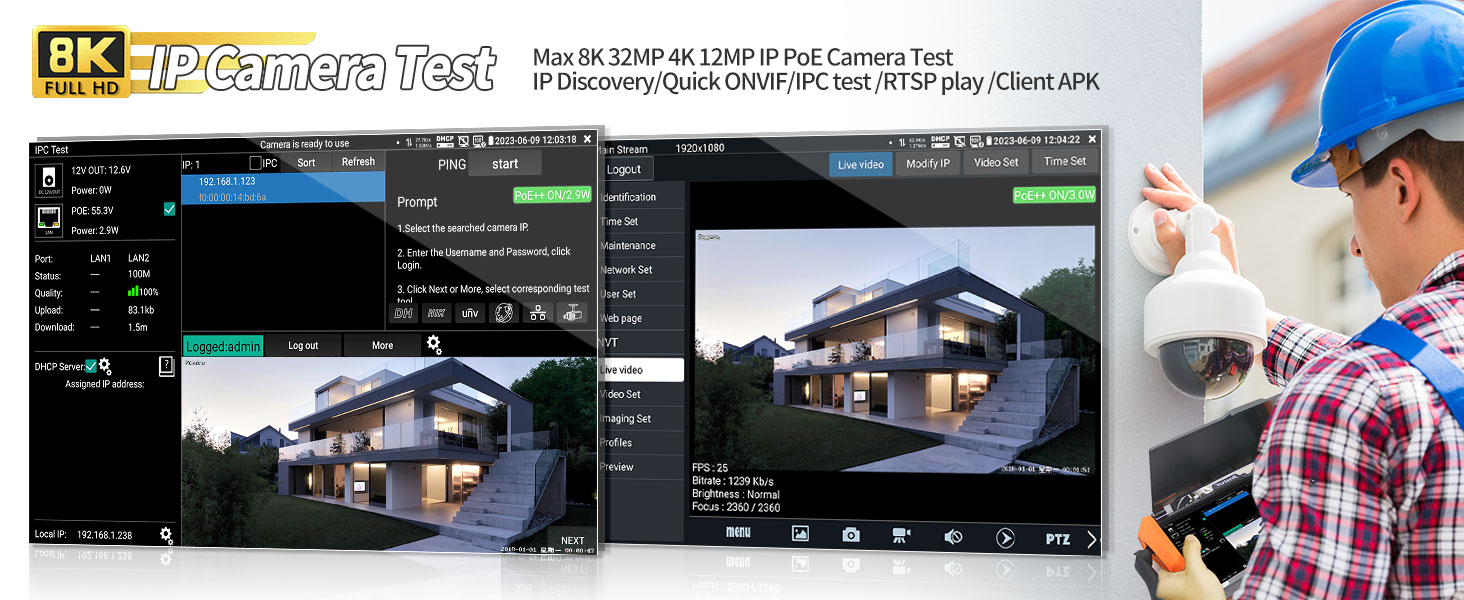

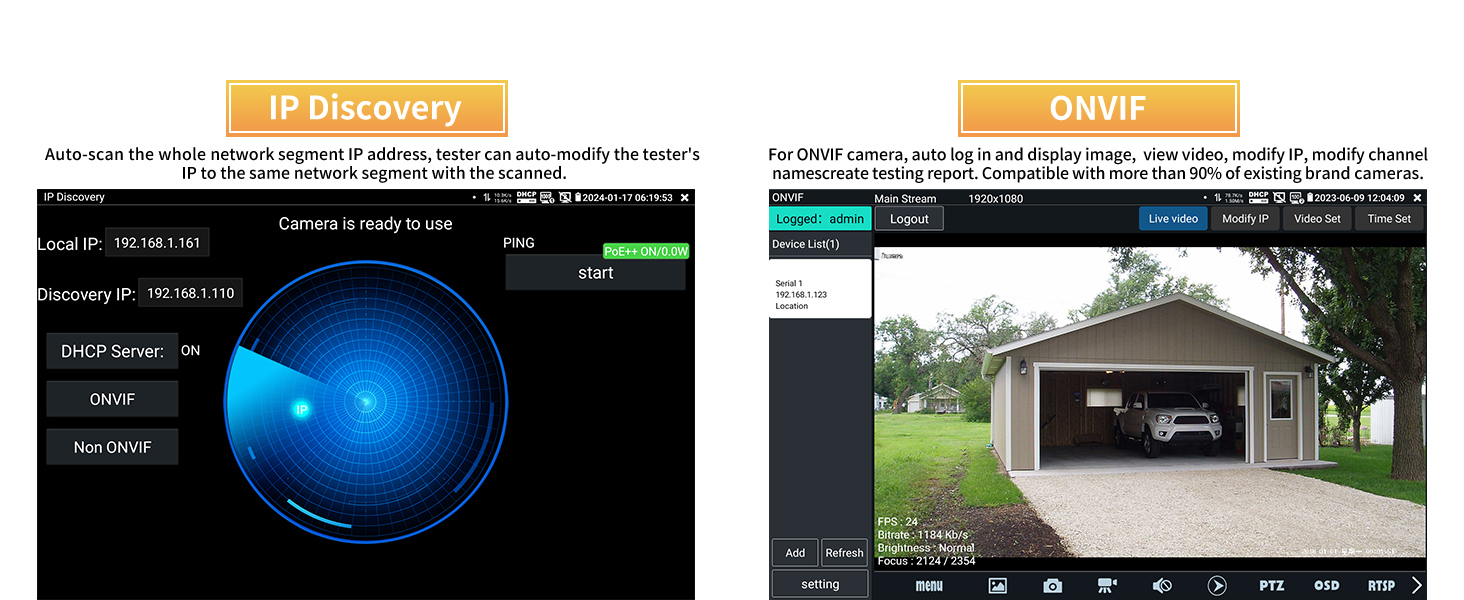

- 【8K IP Camera Tester & Network Tool】Network camera tester support max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP Camera tester. Rapid Video,auto view the video,IP discovery, CCTV Tester built-in special tools for Hik and for DH and other 3rd brand camera test tools, support batches of fast setting of Hik and DH cameras and compatible with most existing cameras. Network test tool trace route, Link monitor, DHCP server, port flashing, Ping test.

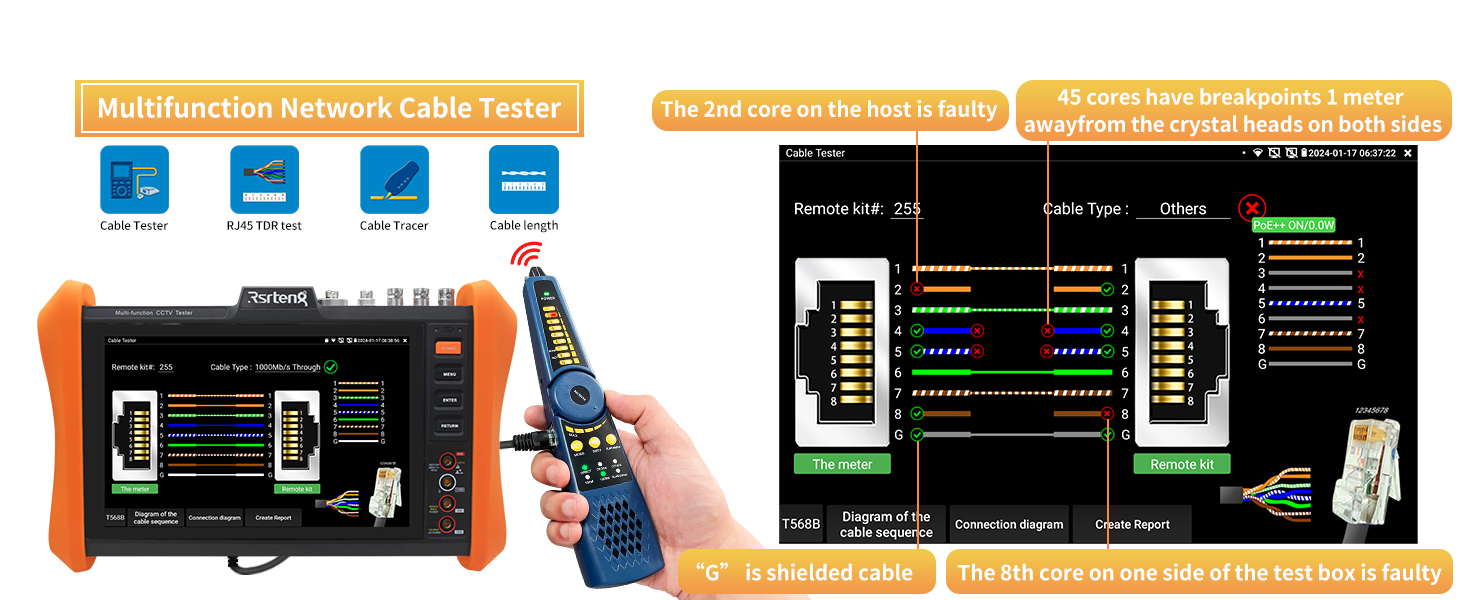

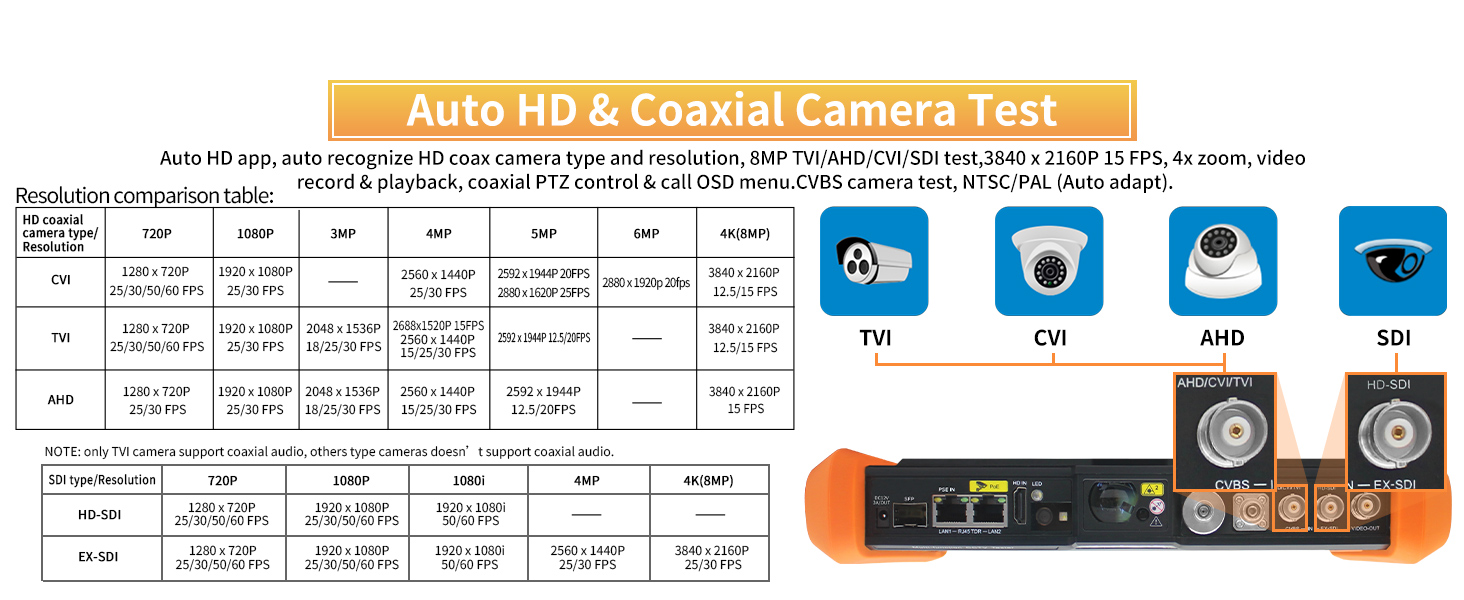

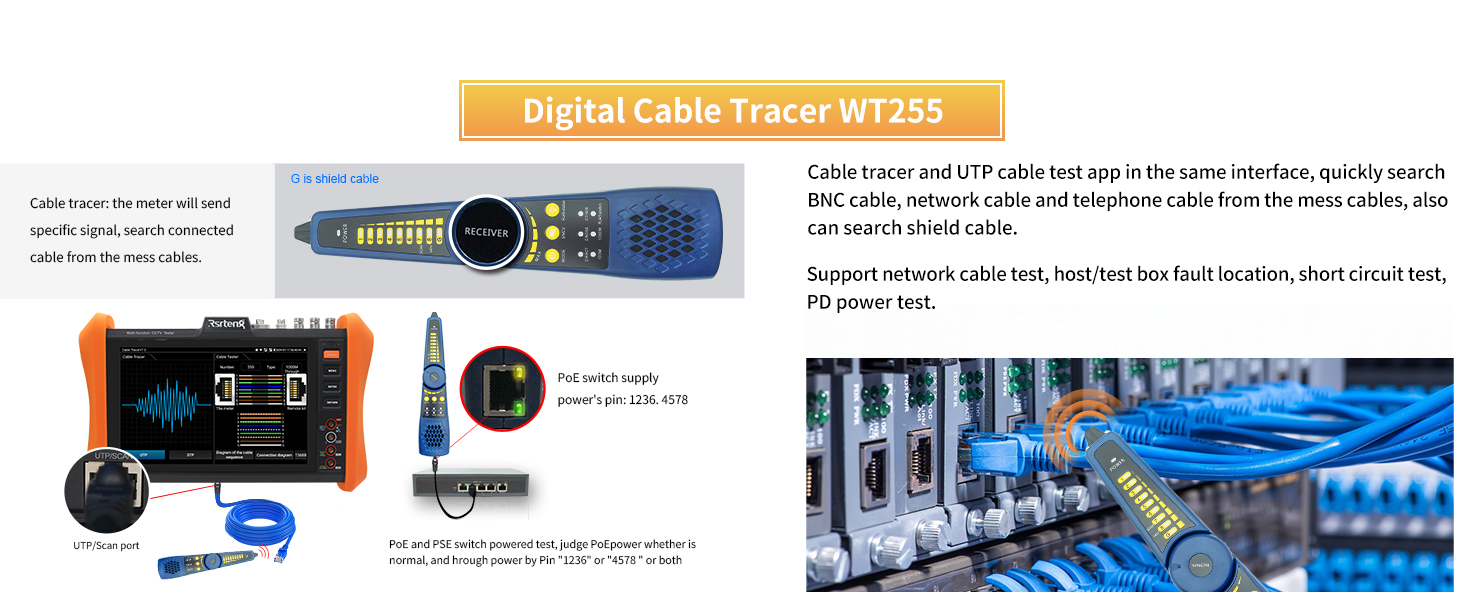

- 【Coaxial Camera Test & Cable Tester & Appliction port】Built-in "Auto HD" app can recognize max 4K 8MP(3840x2160P) AHD/TVI/CVI/SDI/CVBS coaxial cameras.CCTV tester monitor support UTC/PTZ control and call OSD menu.Coaxial leve meter,Color bar generator. UTP cable test.RJ45 TDR cable. With Cable tracer, can quickly find out the target cable(BNC cable,network cable and telephone cable) from the mess cables. Dual Gigabit Ethernet Ports.Audio I/O,HDMI I/O,VGA,WiFi,DC output:24V/2A,12V/3A,5V/2A.

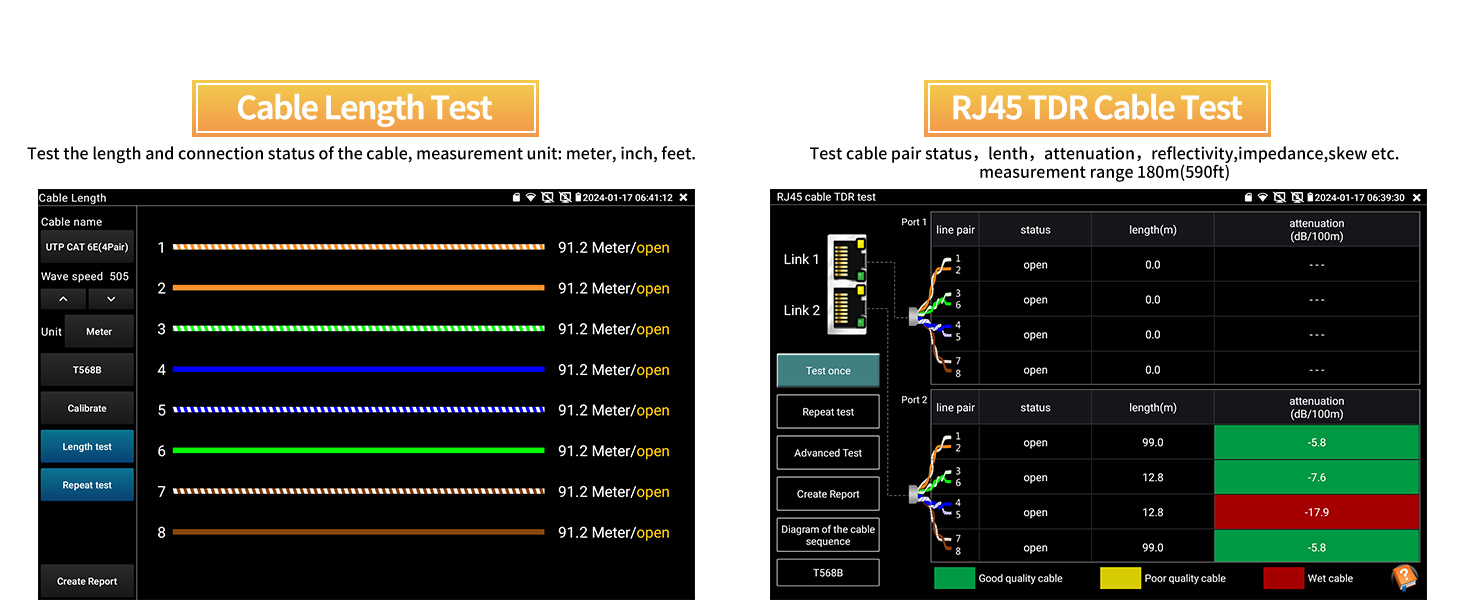

- 【DMM&OPM&VFL&TDR】Digital Multimeter–Measurement tool for AC and DC voltage,AC and DC current,resistance,capacitance,data hold,relative measurement,continuity testing. Optical power meter–It is used for signal power test and insertion loss test of various equipment and photoelectric components. Visual fault locator–the position of optical fiber fault point can be easily and accurately determined. TDR cable test–masure cable’s length and short circuit.Measurement range 1200meter(3937fts).
- 【Power & 8MP Camera & App Update & Quality Assurance】:8 inch IPS touch screen IPC Tester,1920×1200 resolution,Android 11.0 system. Power by 7.4V lithium polymer battery,7800mAh,57Wh. Built-in 8MP camera,support focus detection. Support upgrade the app online or download the file to the SD card for local updates. We have a professional after-sales technical team,so you don’t have to worry about technical problems.We offer 24h technical support and 1 year warranty.
| SKU: | B0CT2SC6FP |
Product Description

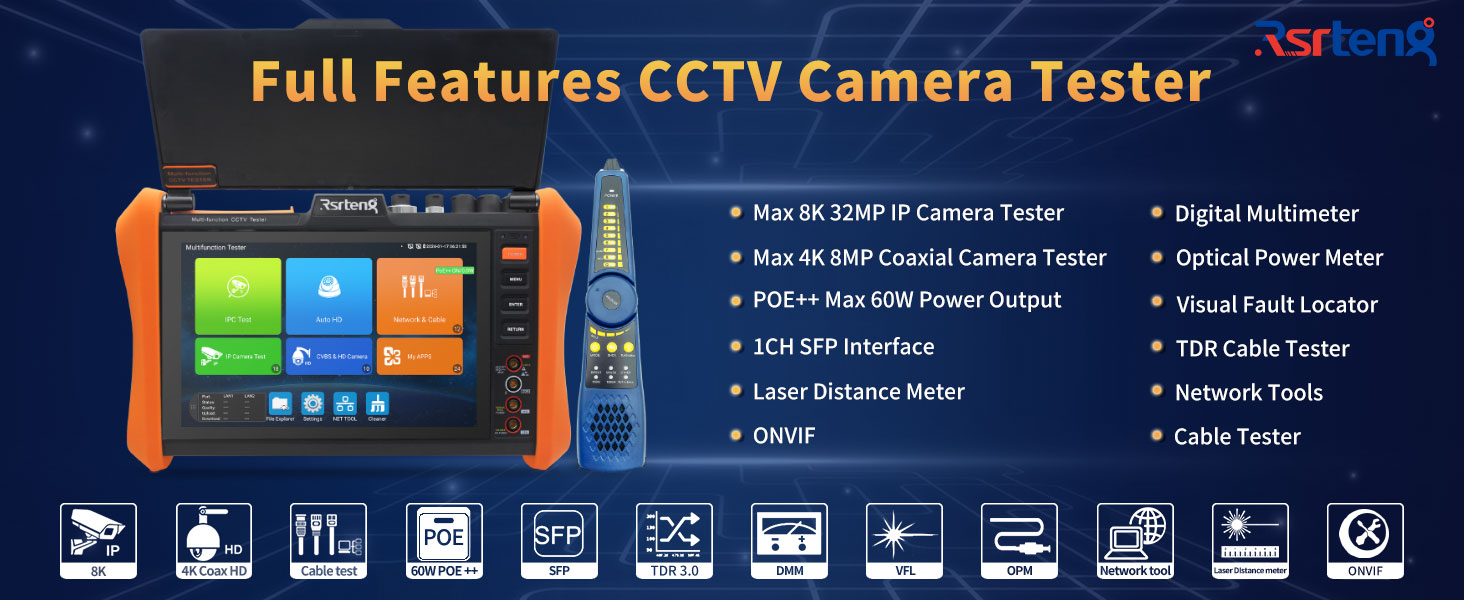

All Feature CCTV Tester IP Camera Tester Coaxial Camera Tester POE Camera Tester
CCTV tester usually used for the installation and maintenance of IP network camera and coaxial HD surveillance camera and security system. Max support 8K 32MP IPC Tester, 4K 8MP coaxial camera tester. Support POE++ max 60W power output, 1CH SFP, Laser Distance meter, cable tester, network tools.
