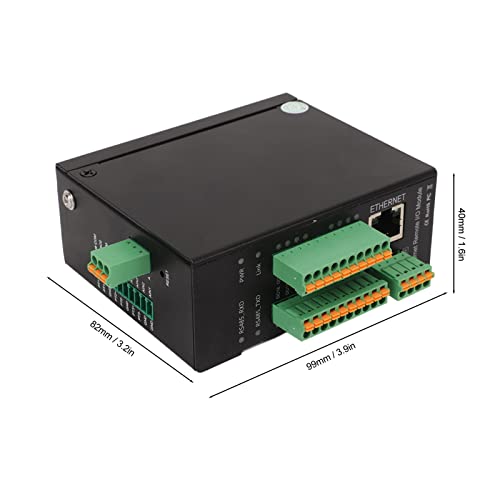

M420T Ethernet Remote IO Module 16 Way DO to for Modbus TCP
M420T Ethernet Remote IO Module 16 Way DO to for Modbus TCP RTU Analog Input Network IO Controller (0-5V)
Specification:
Item Type: Ethernet Remote IO Module
Material: Metal

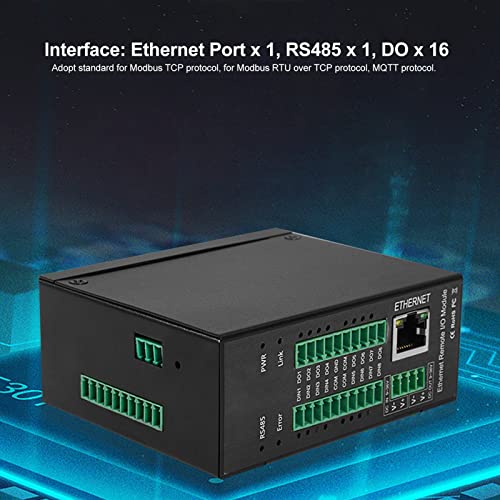

Interface: Ethernet Port x 1, RS485 x 1, DO x 16
Power Output: DC x 1
Working Voltage: 9-36VDC
Analog Quantity: 4-20mA/0-5V
Power Supply:
Input Voltage:
Not Supported AO Output: 9-36VDC
Support AO Output: 24-36VDC
Power Consumption: Typical Standby Power Consumption: ? 2W
Power Output:
Channel
Output Voltage: 9-36V DC (Equal To Input Voltage)
Output Current: 1500mA at.12V (Maximum)
Power : Anti Reverse Connection, ESD Air: 15KV, : 4KV

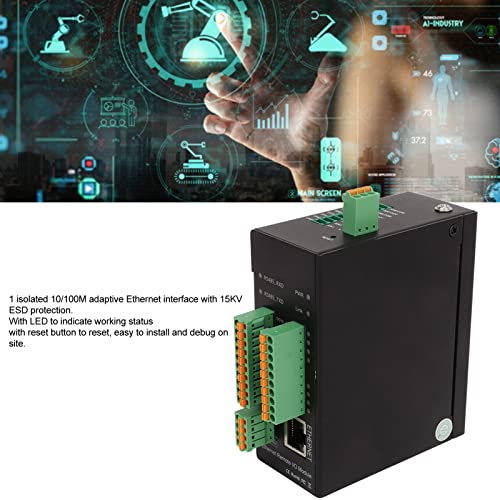

Ethernet: Network Port Specification 1 X RJ45, 10M/100Mbps
Network Interface : ESD Contact: 8KV, : 4KV (10/1000us)
Protocol: for Modbus RTU, for Modbus TCP, MQTT
Serial Port:
Number Of Serial Ports: 1 X RS485
Serial Baud Rate: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000
Data Bits: 7, 8
Check Bits: None, Eve, Odd
Stop Bit: 0.5, 1, 1.5, 2
Protocol for Modbus RTU (Slave), for Modbus RTU (Master)
Serial Port : ESD Contact: 8KV : 4KV (8/20us)
Digital Input:
Quantity: 16 Channels (Maximum)
Input Type: Supports Dry Contact and Wet Contact. The Default is Wet Contact. Dry Contact Needs to Be Described When Ordering;
Wet Contact Supports Both NPN and PNP Sensors
Dry Contact:
Closing: Short Circuit
Disconnection: Open End
Wet Contact:
Closed: 10-30VDC
Disconnection: 0-3VDC

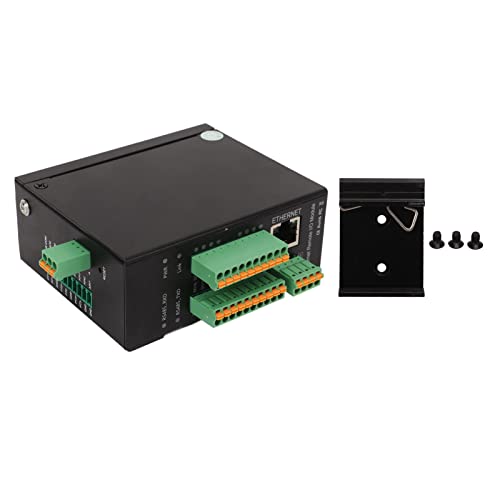

Package List:
1 x Ethernet Data Acquisition Module

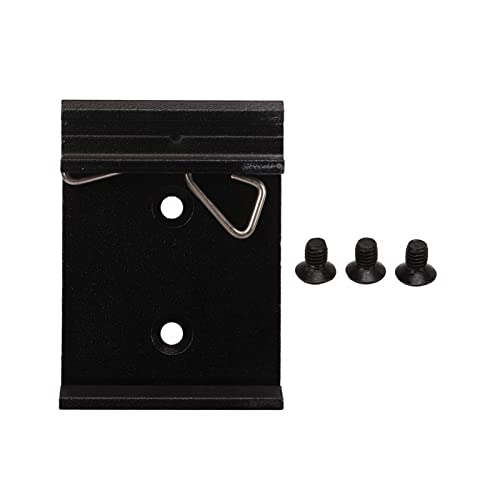

1 x Rail Buckle
3 x Screw
1 x Manual Card
| SKU: | B0BXLFHVX9 |
| Dimensions: | 8.27 x 6.69 x 2.36 inches |
| Model: | Dioche4w13o85dt9-12 |
| Part: | Dioche4w13o85dt9-12 |
| Colour: | 0-5v |
| Manufacture: | Dioche |
| Colour: | 0-5v |
| Origin: | China |
