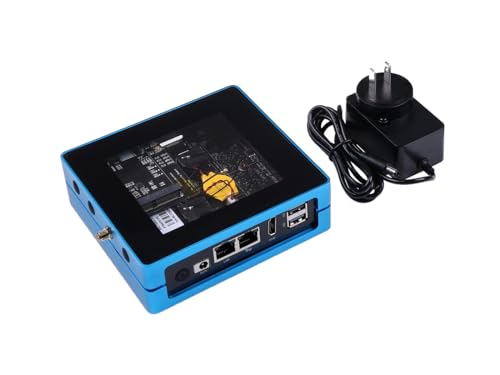

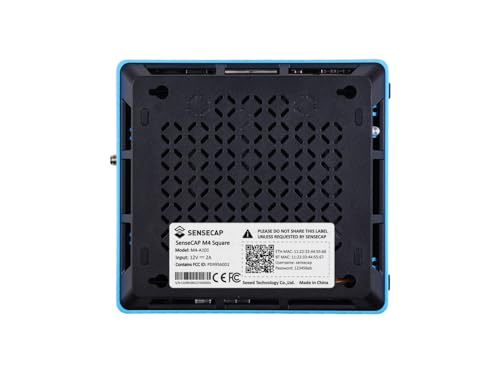

SenseCAP M4 Square – FluxNode & MystNodes
SenseCAP M4 Square – FluxNode & MystNodes
- Plug and Play: Provide a no-code experience that enables users to finish the deployment multiple dApps.
- Support Multiple Apps: Deploy multiple applications provided by SenseCAP from the dApp center. Now, SenseCAP M4 Square has supported Flux and Helium, and more Apps coming soon.
- Cloud Service: Provide a one-stop cloud service to help users purchase, deploy, manage, and monitor their devices.
- Excellent Performance: Powered by Intel Celeron J4125 (Frequency: 2.0 – 2.7GHz) with 4 cores and 4 threads. Built-in TPM2.0 cryptographic processor and ECC608 crypto chip, high-security authentication, and reliable connectivity.
- Low Power Consumption: 10w low power consumption, 7.2 kWh per month, cost $1.008 per month (global average kWh price of $0.144/per kWh).
- Notice: Helium-capable antenna kit is not included. A separate antenna must be purchased to enable Helium functionality.
| SKU: | B0D1XVJDX2 |
| Weight: | 2 pounds |
| Dimensions: | 6.5 x 5.9 x 4.5 inches |
| Model: | 110991884FA |
| Manufacture: | seeed studio |
| Origin: | China |
Product Description
Cloud Service
One-stop cloud services include SenseCAP Hotspot App and SenseCAP Dashboard, which help users manage the entire lifecycle of devices: purchase devices, set up devices via Bluetooth, get comprehensive devices information, monitor device running status, and get the latest services and news provided by senseCAP.
Specifications
| Processor | Raspberry pi RP2040 32bit Dual-core Arm Cortex M0+ |
| Frequency | 902MHz ~ 928MHz |
| Graphics | Intel UHD Graphics 600 (Frequency: 250 – 750MHz) |
| Memory | LPDDR4 8GB |
| Storage | Internal 512GB SSD |
| Wireless | Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160 |
| Networking | Intel 226-V PCIe2.5GbE LAN, Supports Wake-On-LAN, Supports PXE |
| Audio | Microphone + headphone Combo Connector |
| USB | USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1 |
| Video Interfaces | HDMI2.0a: Up to 4096×2160 @ 60Hz 24bpp / DP1.2a: Up to 4096×2160 @ 60Hz 24bpp |
| Expansion Slots | M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III |
| Operating temperature | 0°C～45°C |
| Storage temperature | -20°C～60°C |
| TPM | Built-in TPM 2.0 |
| Power | DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC |

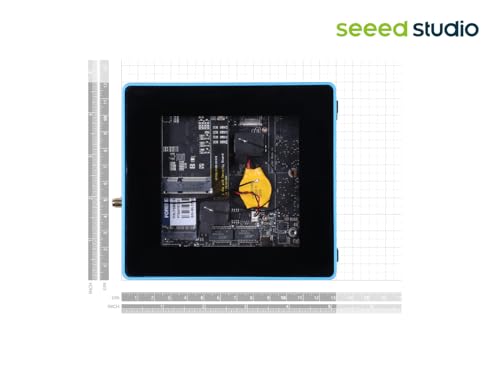

| Dimensions | 130x120x50mm |
