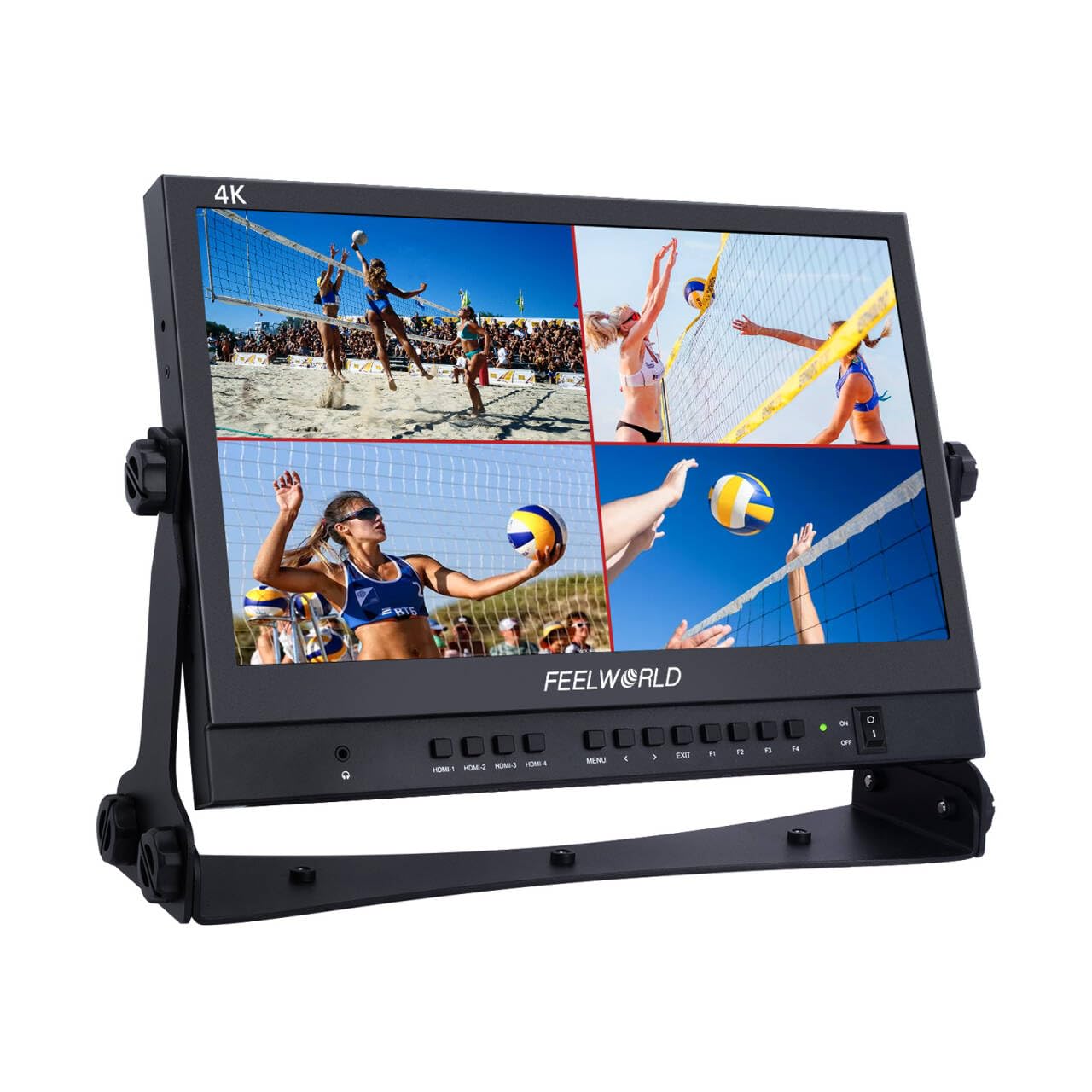

FEELWORLD ATEM156 Quad-Split Monitor 4K 15.6″ director’s
FEELWORLD ATEM156 Quad-Split Monitor 4K 15.6″ director’s monitor with 4 x HDMI I/O Live Streaming Broadcast Monitor for Switchers, Mixer, Studio, Television

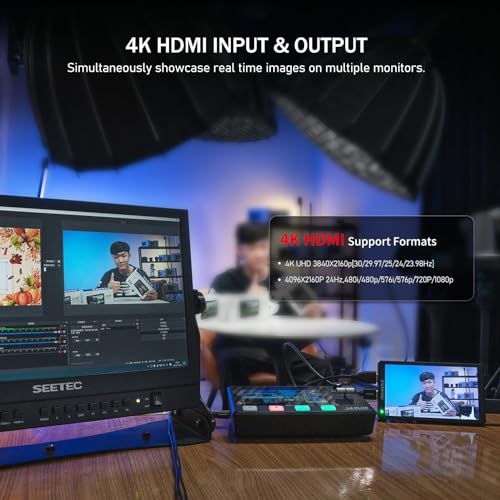

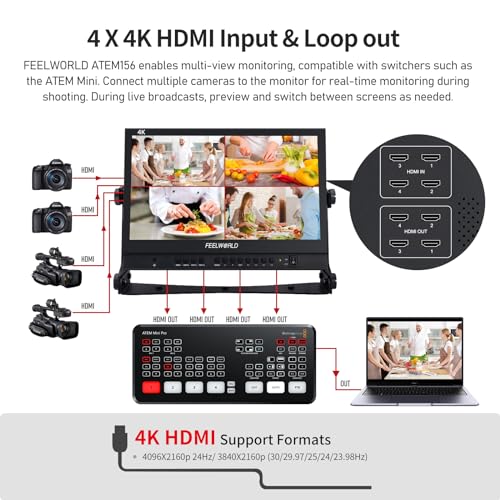

- 【Quad DCI 4K24/UHD 4K30 Input & Loop Out】The ATEM156 director monitor features with 4 x HDMI input and output ports, which allows you to view four DCI/UHD 4K HDMI signals in a quad split. Four HDMI loop outputs let you connect your four signals to the switcher. You can move any signal to any window in the quad split. A PiP image can also be displayed in each window. Alternatively, a dual view or single image can be displayed on the screen, also supporting Picture-in-Picture
- 【Multi-view for Switchers like ATEM Mini】 Enhance your live streaming setup with our versatile monitor, compatible with any HDMI source. With seamless pass-through functionality, it effortlessly integrates with ATEM switchers, OBS, and eCam Live. Enjoy stunning color accuracy, exceeding expectations at an unbeatable price

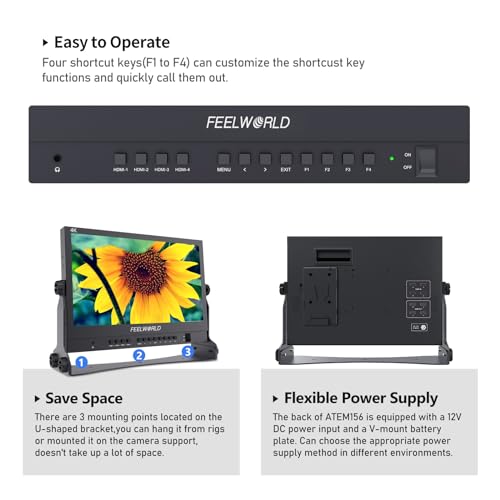

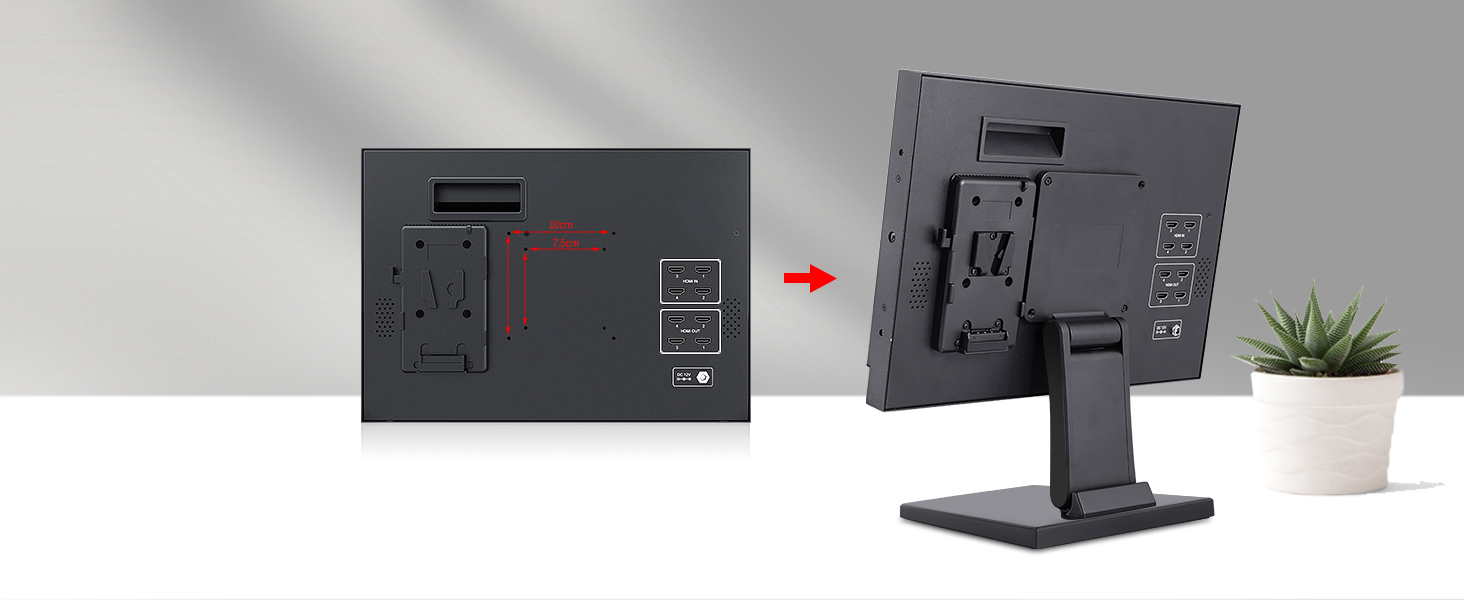

- 【100 & 75mm VESA Mounts】Mountable on a VESA stand, it accommodates a Stream Deck for effortless scene transitions. Its intuitive hotkeys simplify view switching, while full-screen and zoom features ensure precise focus. Perfect for monitoring cameras, it complements any broadcasting setup

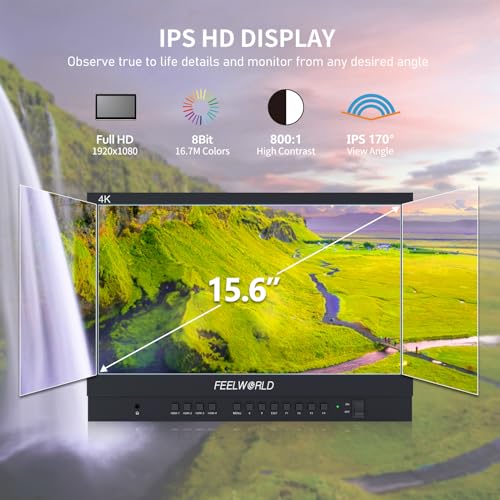

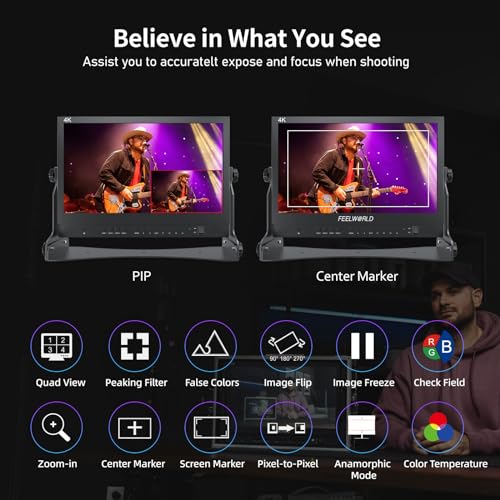

- 【Precision-Packed Visual Brilliance】The FEELWORLD ATEM156 monitor features a 15.6" IPS display with a 1920 x 1080 resolution, 250 cd/m² brightness, and 170° viewing angle. Software features, such as peaking and false color, additionally let you analyze each image. A 3.5mm stereo headphone jack on the front panel allows for audio monitoring

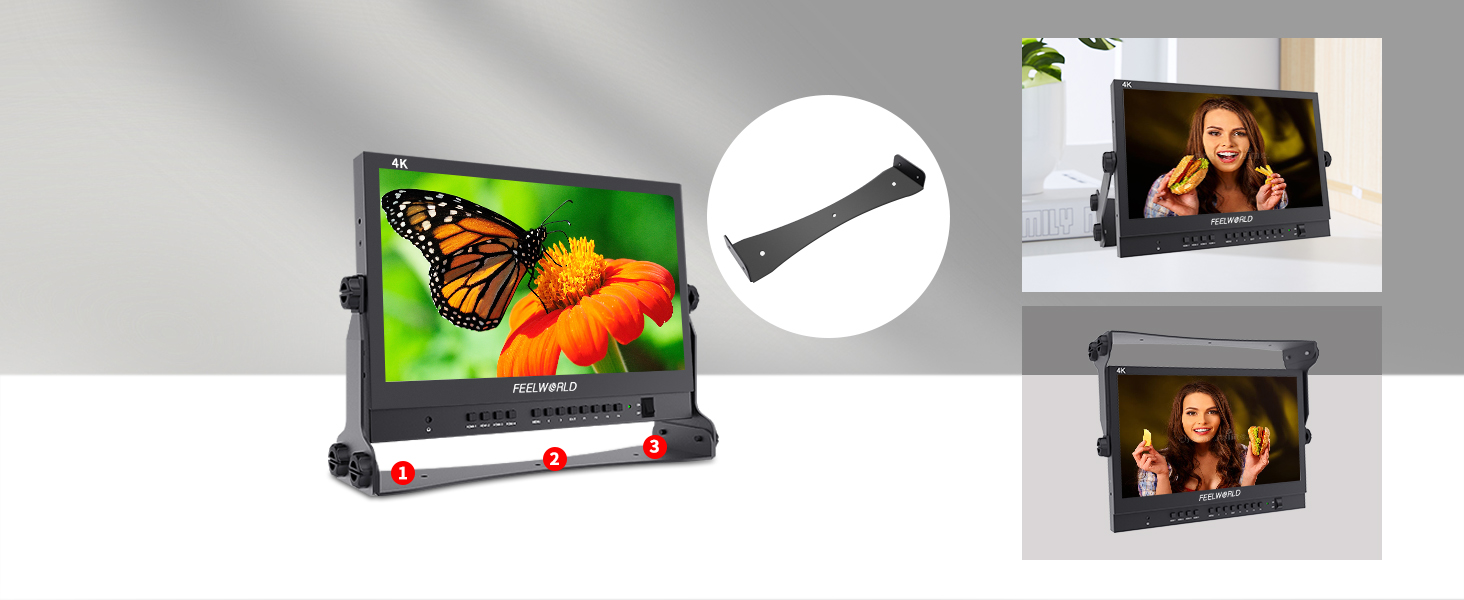

- 【Solid Aluminum Housing】Having an aluminum alloy casing, the monitor is lightweight, sturdy, corrosion-resistant, and more durable. Furthermore, the aluminum alloy casing offers excellent heat dissipation, effectively dispersing heat to maintain the stability and reliability of the device during operation. 【Package Include】1× ATEM156 Monitor, 1× Mini HDMI to HDMI Cable, 1× V-mount Battery Plate (Note: battery not include), 1× 3A Power Adapter, 1× U-shaped Bracket . ** If input the signal with HDCP, please use the " HDMI Splitter" to strip the HDCP signal from the HDMI signal
| SKU: | B0D1V27BRT |
| Weight: | 3.45 pounds |
| Dimensions: | 16.73 x 12.36 x 5 inches |
| Manufacture: | ANDYCINE |
| Origin: | China |
Product Description

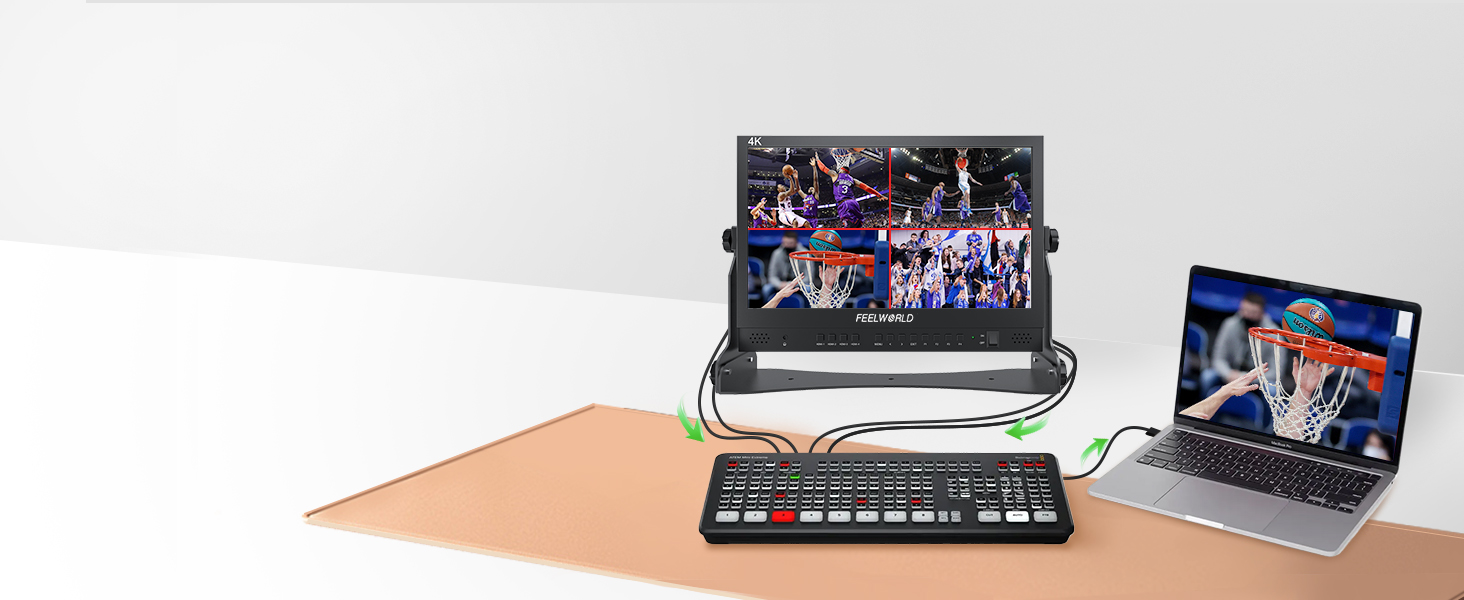

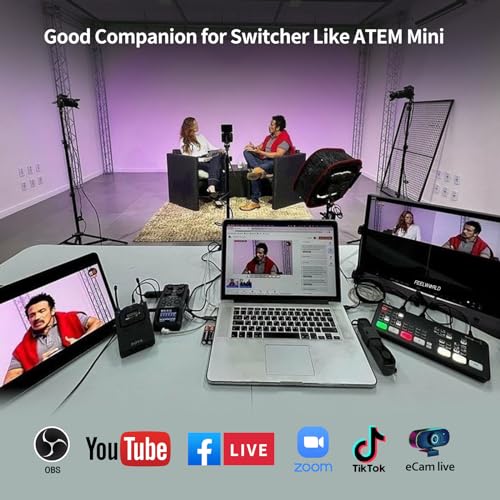

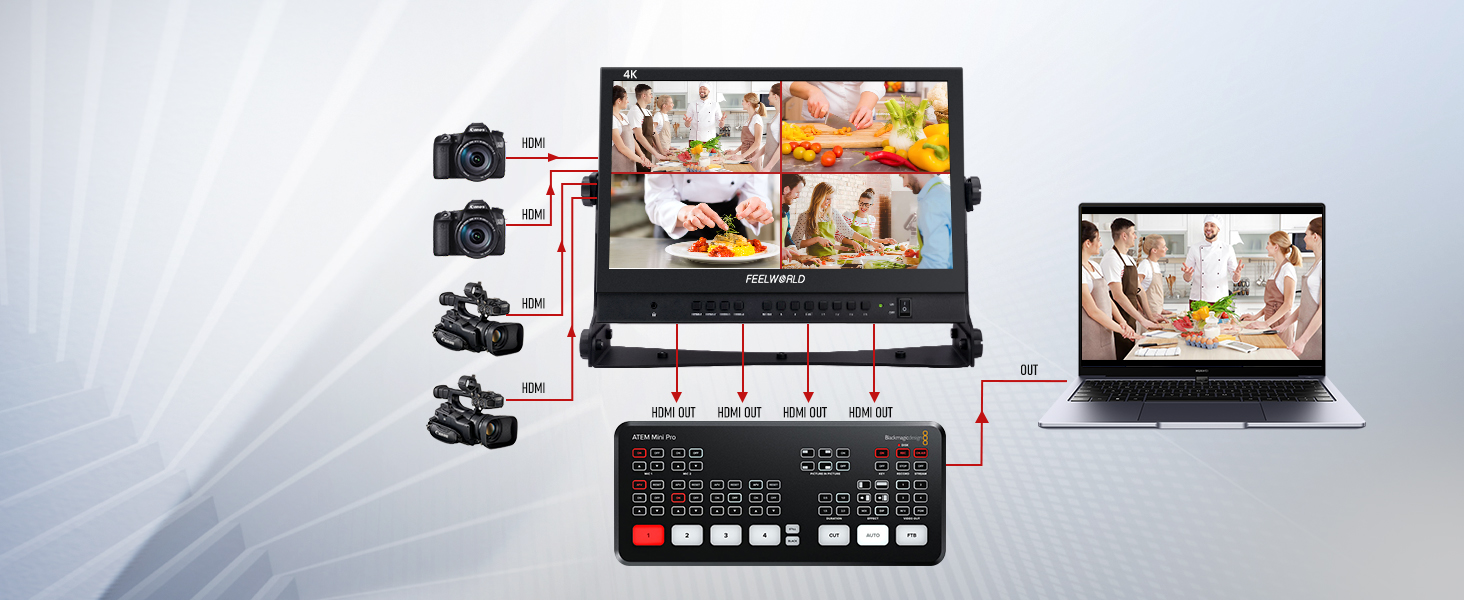

Multiview for Switchers like ATEM Mini
The FeelWorld ATEM156 can be used as a companion to switchers that don't
have a multiview function, such as the Blackmagic ATEM Mini switcher.
Previous pageTechnical Parameters
| Display Size | 15.6″ / 39.6 cm |
| Resolution | 1920 x 1080 |
| Video I/O | 4x HDMI Input, 4x HDMI Output |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Power Consumption | 12 W |
| Power Input | 1x Barrel (12 VDC) Input |
| Material of Construction | Aluminum |

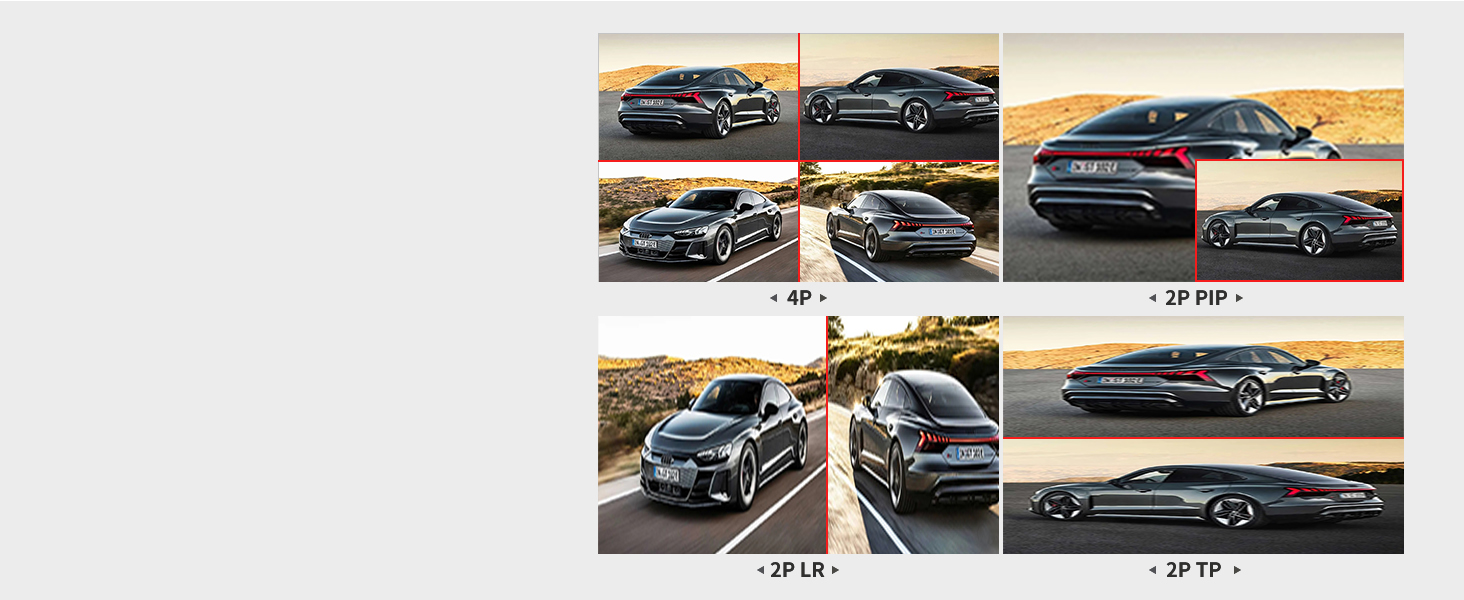

| Screen splits | 1P, 2P LR, 2P TB, 2P PiP, or 4P |
Application Scenarios
FEELWORLD Series Field Camera Monitors
 FEELWORLD ATEM156 |  FEELWORLD F5 PROV4 |  FEELWORLD F5 PROX |  FEELWORLD F6 |  FEELWORLD LUT11S | |
| Customer Reviews | — | 4.5 out of 5 stars 62 | 4.3 out of 5 stars 68 | 4.2 out of 5 stars 467 | 4.3 out of 5 stars 3 |
| Price | $478.00 | $149.99 | $169.99 | $129.99 | $348.99 |
| Display: | 15.6 inch IPS Screen | 6 inch Touch Screen | 5.5 inch Touch Screen | 6 inch Screen | 10.1 inch Touch Screen |
| Resolution: | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels | 1920×1200 pixels |
| Screen ratio: | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Screen brightness: | 250cd/m² | 450cd/m² | 1600cd/m² | 460cd/m² | 2000cd/m² |
| Contrast ratio: | 800:1 | 1000:1 | 1000:1 | 1400:1 | 800:1 |
| Viewing angle: | 170° | 160° | 160° | 170° | 170° |
| Inputs: | 4 X 4K HDMI Input | 4K HDMI Input | 4K HDMI Input | 4K HDMI Input | 4K HDMI Input; SDI |
| Outputs: | 4 X 4K HDMI Output | 4K HDMI Output; DC 8.4V Output | 4K HDMI Output; DC 8.4V Output | DC 8.4V Output | 4K HDMI; SDI; DC 8.4V Output |
| Functional differences: | Size;brightness;function | 3D Lut; Exteranl F970 Plate | High Brightness | Budget friendly; Work Stable | Big screen; Director's Monitor |
| Unit Size: | 372L×262H×28.4D (mm) | 148Lx93Hx20D (mm) | 148Lx93Hx20D (mm) | 154Lx90Hx23D (mm) | 242Lx156Hx23D(mm) |
| Unit Weight: | 1.57kg | 245g | 245g | 200g | 810g |
