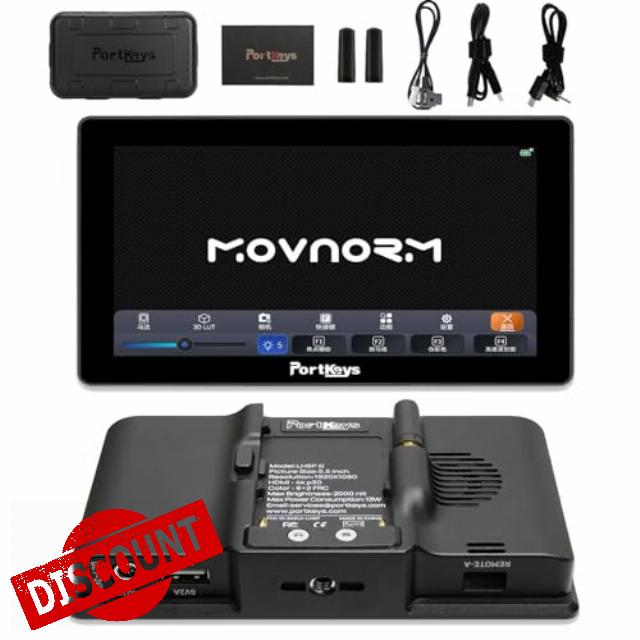

Portkeys LH5P II 2200nit Touchscreen Camera Field Monitor
Portkeys LH5P II 2200nit Touchscreen Camera Field Monitor Wide Color Gamut New Peaking LUT Video Assist Luma RGB Waveform for DSLR (5.5 inch)

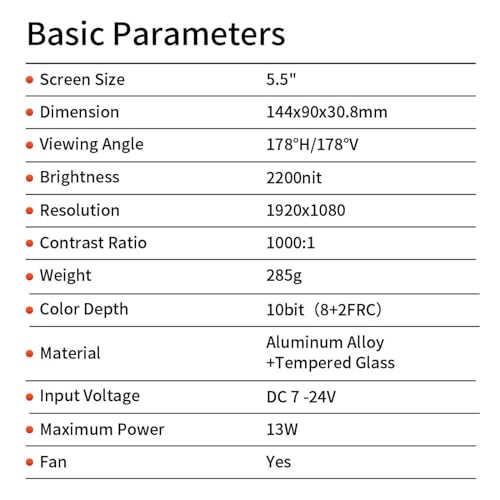

- 1. 5.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio. Daylight-viewable with a maximum brightness of 2,200nits. 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output. Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
- 2.Professional monitoring tools: Waveform, Peaking, ARRI False Color. 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- 3.Wireless camera control for Sony and Blackmagi c Design cameras（most）. Touchscreen autofocus (wireless) feature is available for Sony cameras（select）, including the FX3, a7S III, and A7C. Wired camera control for Sony, Cano n, Panasoni c, BMD, and ZCAM E2. TILT A Nucleus N/M wireless follow focus wired control.
- 4.Built-in Son y NP-F style battery plate. 5-pin 7.4V-24V power input for external power . Lightweight and rugged aluminum housing: only 285g/10.05oz
| SKU: | B0927RGRKX |
| Weight: | 1.1 pounds |
| Dimensions: | 8.07 x 5.67 x 4.21 inches |
| Model: | LH5P ii |
| Manufacture: | Portkeys |
| Origin: | China |
Product Description
When it comes to monitoring your video signal, the Portkeys LH5P II has all the professional monitoring features you can expect from an on-camera monitor, including:
- 3D LUT monitoring. You can load custom LUTs via the USB port at the bottom of the monitor and the included USB key.
- A high-precision Waveform, Histogram, and Zebra tools. You can monitor the video signal before or after the 3D LUT.
- ARRI False Color mode and user-defined mode. When you use the user-defined mode, you can freely set the IRE values.
- A new Peaking algorithm to help you nail focus easily.
- Cropping feature to precisely zoom wherever you want inside the image.
- Framing guides, grids, aspects, and Auto image flip.
- Image Capture and Image Overlay. Image Capture takes a snapshot of the HDMI video input (combined with a LUT if desired) and saves it to the monitor’s memory. Then, you can set the transparency/opacity of the Image Overlay. This feature is helpful for shot matching (continuity) or a quick overview of the day’s shots.
- Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.
- Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.
The Portkeys LH5P II can also control many cameras wired/wirelessly:
The removable 2.4 GHz WiFi antenna at the back of the monitor can connect wirelessly to Sony cameras, including the Sony A7S III, A7M IV, A7M III, A1, A9I, A9II, A7C, FX3, RX10, RX0. You can change your camera settings directly from the monitor and even touch to focus. Also, you can assign the “+/-” keys to adjust your ISO/Aperture/Shutter/Zoom/Frame Rate settings. Furthermore, one of the F1-F4 function keys can be assigned to start/stop recording.
The monitor supports Bluetooth connection and camera control for Blackmagic Design users with the BMPCC 4K, 6K, and 6K Pro.
Wired control is also available for multiple Sony, Canon, Panasonic, BMD, and ZCAM E2 cameras.
If you use a TILTA Nucleus N/M wireless follow focus, the BM5 III WR supports wired control of your motors. The focus scale can even be displayed on the display.
* Wireless control does not mean wireless video transmission; the video signal cable still needs to be connected.
Lastly, the optional REC Key can be connected to the Portkeys LH5P II, giving you an extended recording switch.
