VILTROX DC-550 Pro 5.5 Inch Touchscreen Camera Field
VILTROX DC-550 Pro 5.5 Inch Touchscreen Camera Field Monitor, 4K HDMI, 1200 nits, 160° Wide View Angle, Camera Monitor with Battery, Sunshade Hood, 3D Lut, Peaking Focus Assist, DC 12V Type-C 5V in
- 【Professional Monitoring Software/Custom 3D LUT】The VILTROX DC-550 Pro camera video monitor has lots of professional monitoring functions, such as Parade waveform, vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc. SD Card Slot Support for Importing 3d Luts and Firmware Upgrades. The photographer can achieve a variety of creative effects in the post-editing and use any camera Log mode to shoot and monitor.

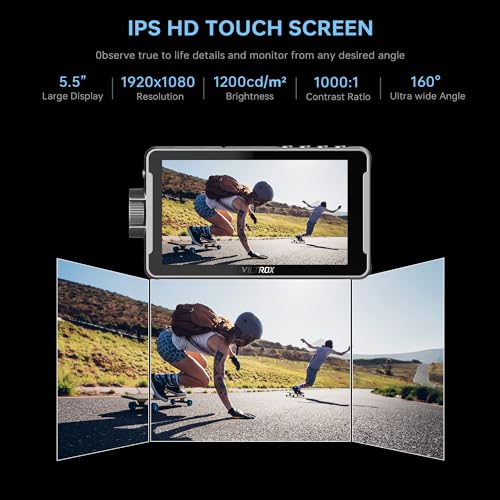

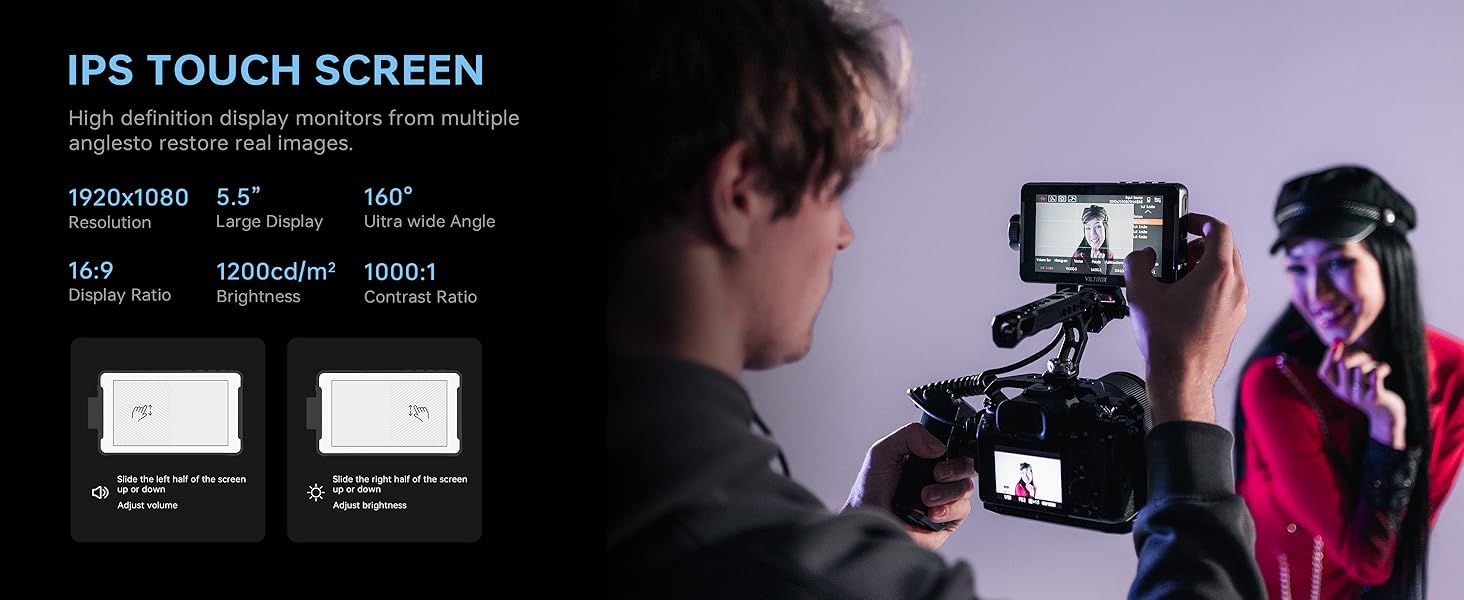

- 【5.5" 1200 Nits High Brightness IPS Touch Screen】 The VILTROX DC-550 Pro 5.5" touchscreen camera field monitor has 4K Full HD 1920×1080 resolution and 403PPI pixel density to make every shot look amazing, Outputs a brightness of 1200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions.
- 【Professional Color Calibration】In accordance with the REC.709 international color standard, Viltrox DC-550 series monitor has the built-in 3D LUT precise color reproduction without distortion or color cast, making you enjoy sharper and richer colors image.
- 【4K HDMI Input/Output】Support 4K 30Hz signal input and output, lossless HD transmission, monitor the screen is more clear and smooth, better color layer, help the creation team to flexibly monitor the footage *Input and output signal interface: HDM 1.4, maximum supported size: 4K30HZ, 3840×2160, 4096×2160; 24HZ 25HZ 30HZ.

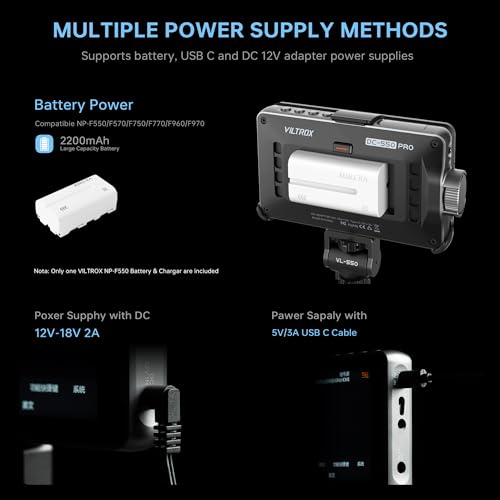

- 【Convenient and Perfect Design & Rich And Diverse Accessories】 Triple Power Supply: With NP-F series battery plate（Package contains a VILTROX NP-F550 Battery）, Type-C port and 12-18V DC output, flexible choice of power supply, easy to solve the problem of battery life.With detachable hood design, one second quick release, can effectively block the interference from light source, obtain good monitoring effect when filming outdoor.

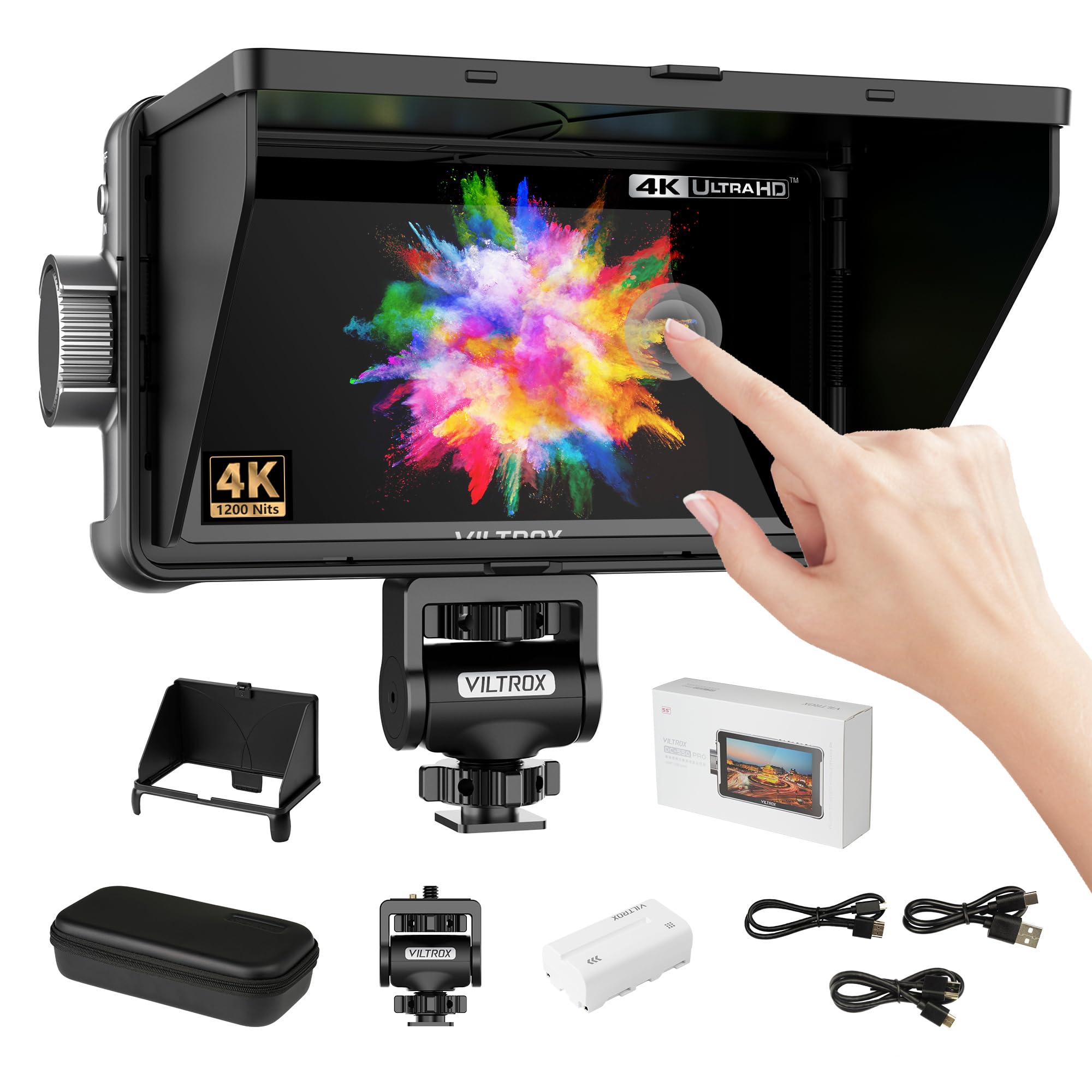

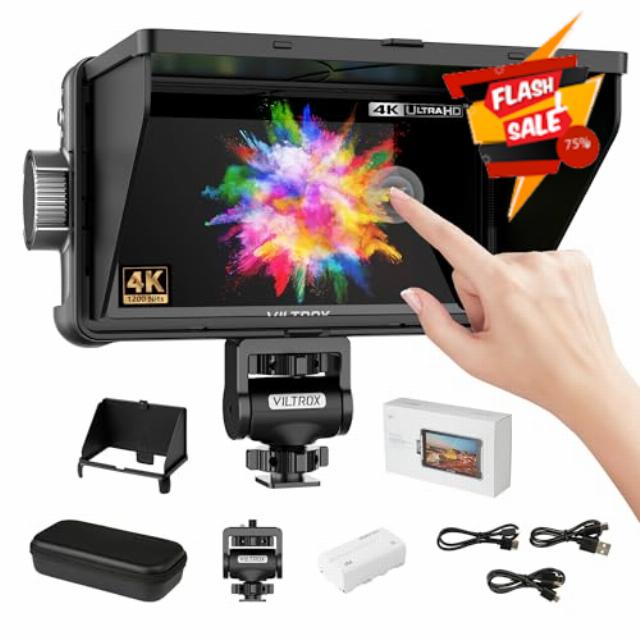

- 【Package List】1x DC-550 Pro Camera DSLR Monitor, 1x Sunshade Hood, 1x VILTROX NP-F550 Battery, 1x VL-550 Cold Shoe Adapter, 1x Type-C Cable, 2x HDMI Cable, 1x Plastic Carry Case, 1x User Manual, 1x Packing Box. 2 year manufacturer warranty.
| SKU: | B0D5QK8PNW |
| Weight: | 2.2 pounds |
| Dimensions: | 10.63 x 9.84 x 2.76 inches |
| Batteries Included: | 1 Lithium Ion batteries required. (included) |
| Manufacture: | VILTROX |
| Origin: | China |
Product Description
Previous page
DC-550 Pro Multi-function Camera Field Monitor
- False color function
- 2 Histograms: RGB and Luminance
- 3 Parade waveforms: RGB, Y, YUV

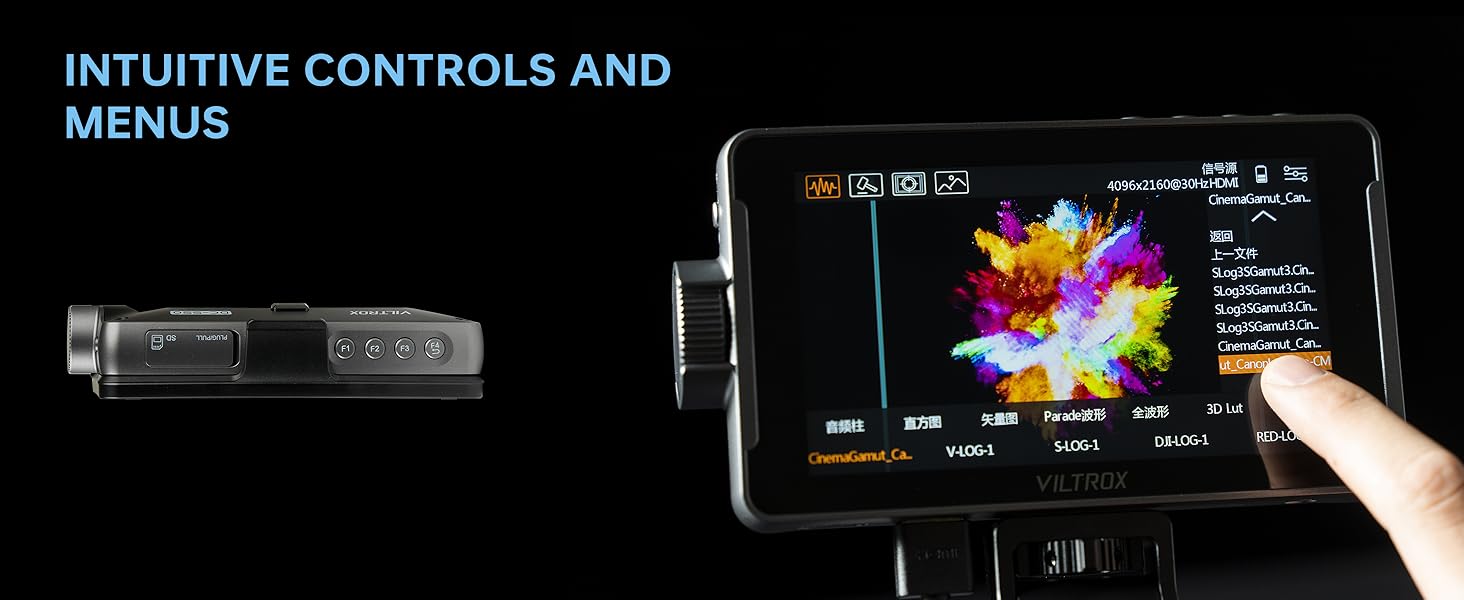

Intuitive Controls and Menus
- Simple And Easy To Use
- Click on the top right corner to access the system setting; Then click“英文”to change to English language

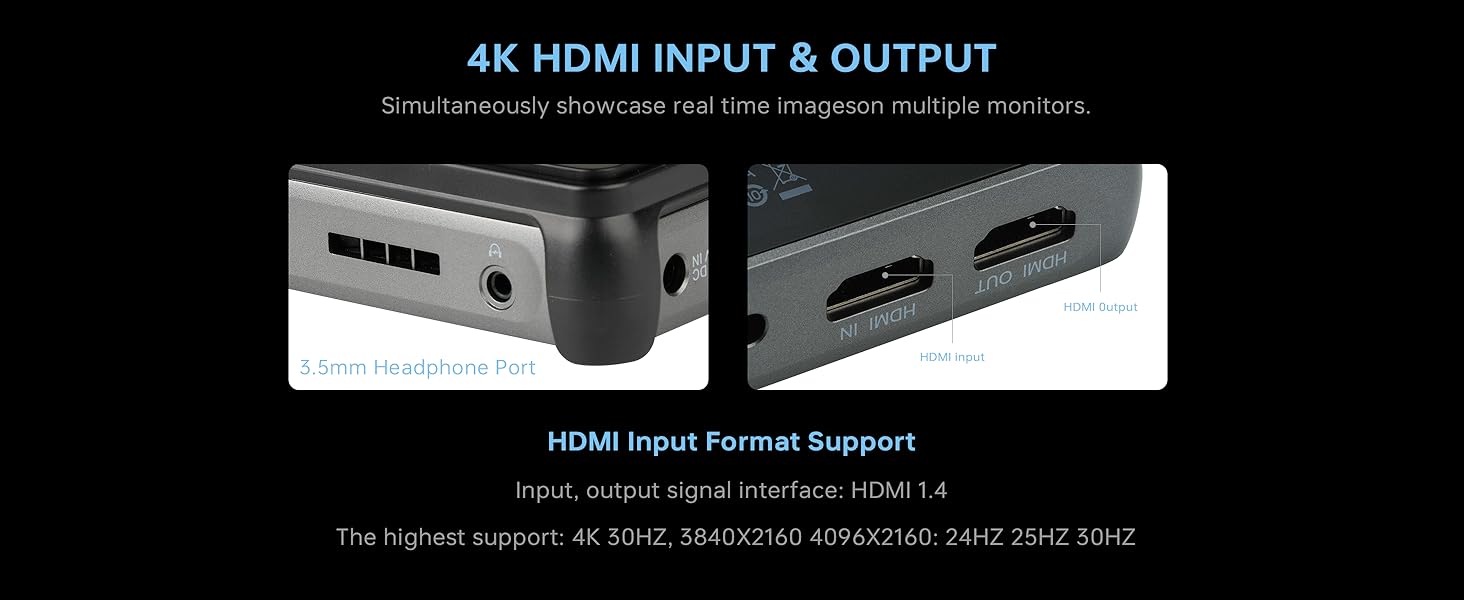

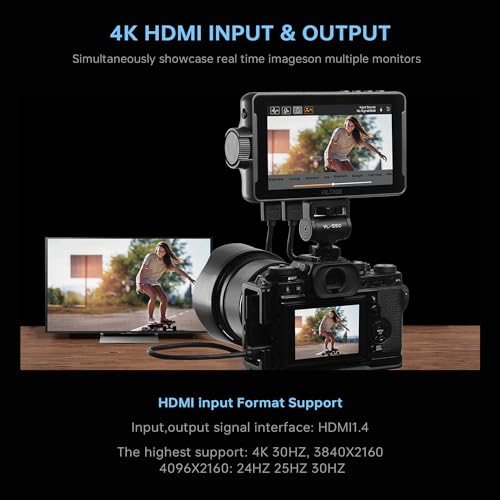

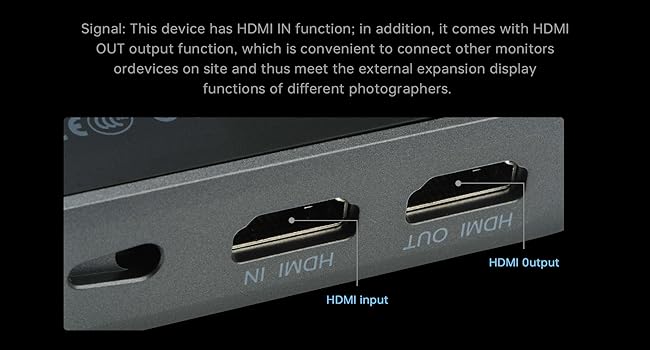

4K HDMI Input & Output
Audio column: can be used to control the volume of the recorded audio situation, and always confirm that the sound input is normal
Other features of Camera Monitor
- 160° Ultra Wide View Angle
- Peak Focus/Focus Assist Allows for easy and precise manual focusing
- Vector Graphics For precise viewing & control of the colour distribution of the picture
- lmage Zoom Function
DC-550 Pro Camera Feild Monitor Overview
Shortcut keys: F1/F2/F3, it can set different shortcut keys according to thecustomer's preferences, to meet the needs of one-key setting without entering the menu for setting.

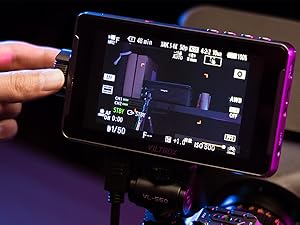

Convenient Touch Screen Control

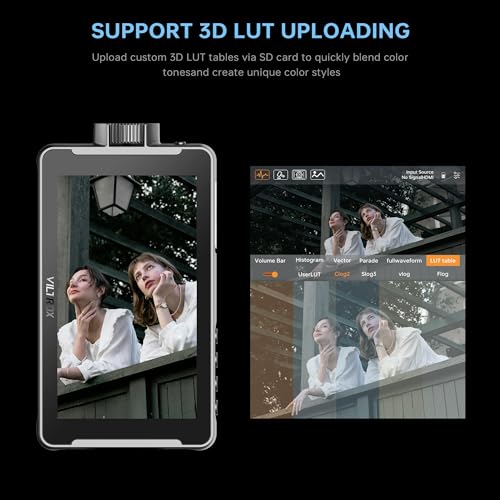

3D LUT Function
3D LUT files are loaded through SD card, and different display effects can be switched by selecting different files. SD Card Slot Support for Importing 3d Luts and Firmware Upgrades.

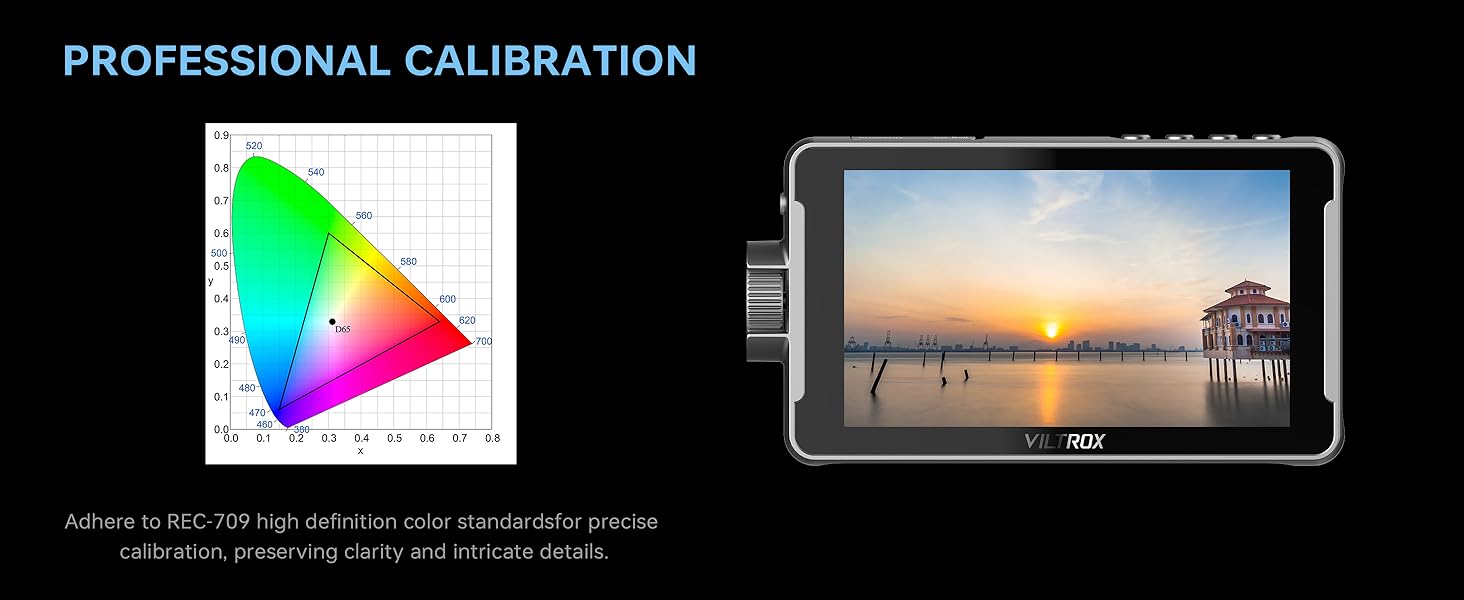

Professional Calibration
Colour gamut coverage 100% +-3% sRGB/Rec709

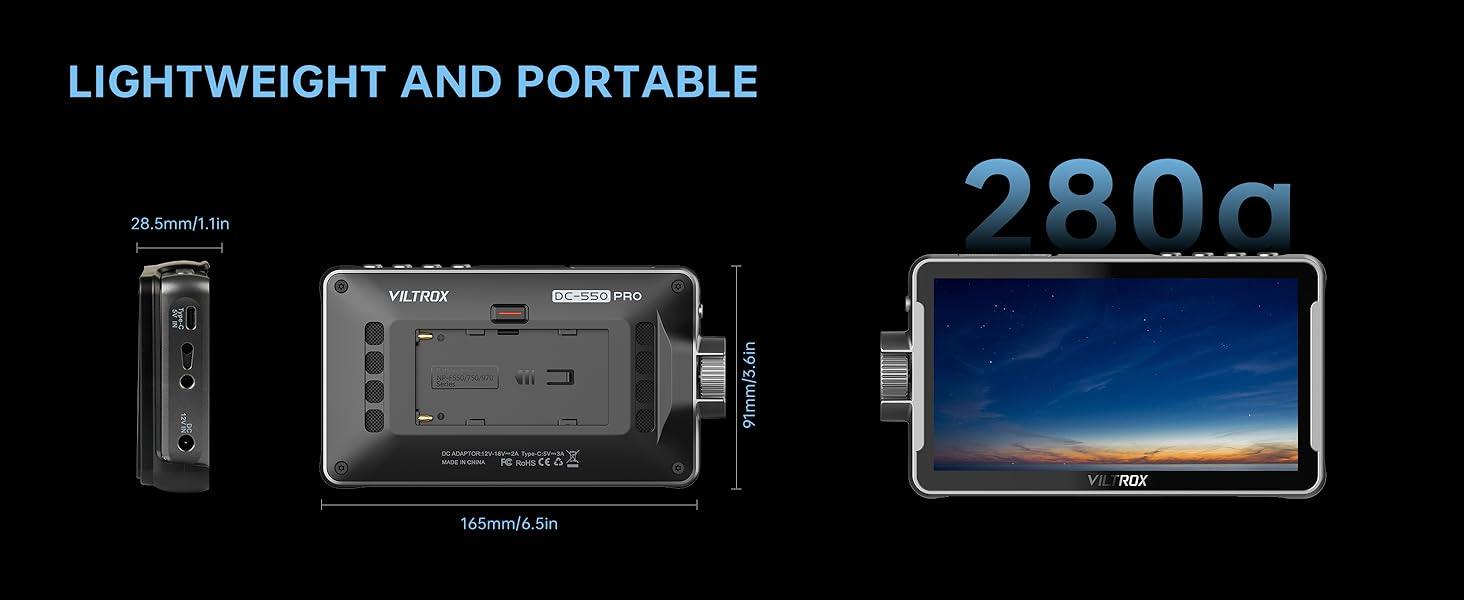

Lightweight and Portable

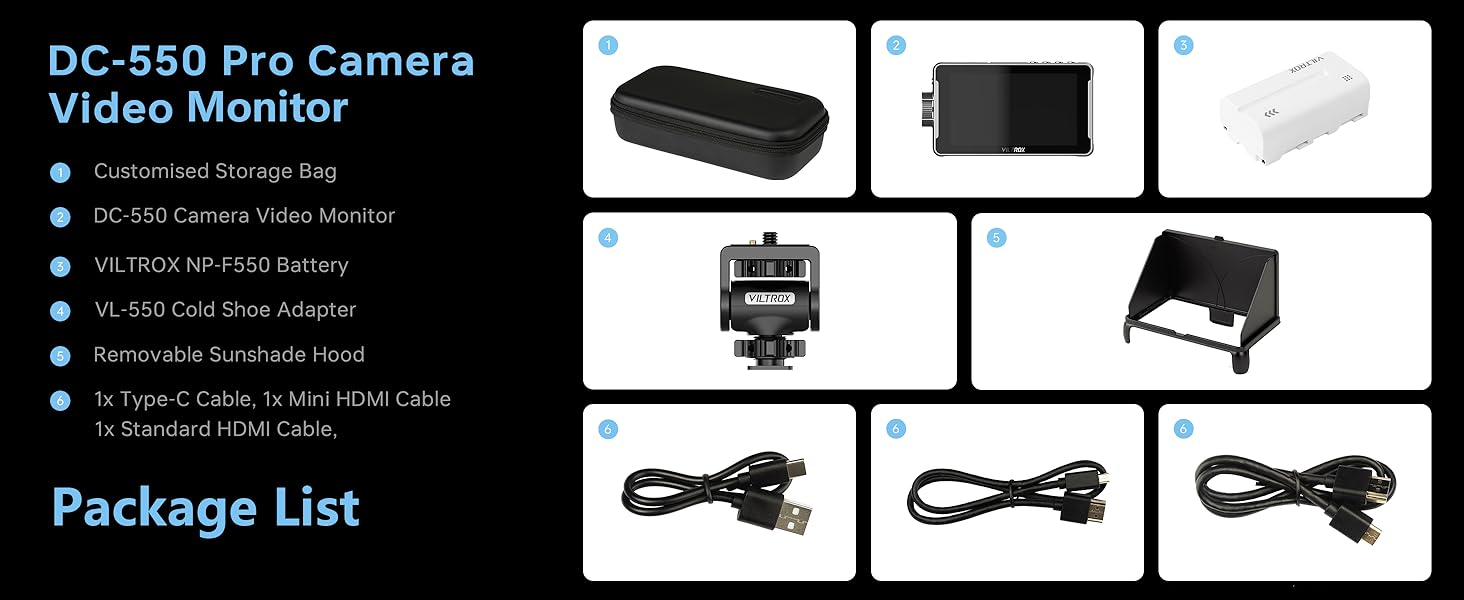

DC-550 Pro Monitor Package List

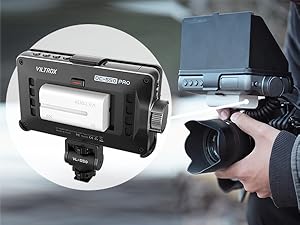

Includes NP-F550 Battery
- Batteries are rechargeable and reusable.
- Other replaceable batteries: : NP-F550/F570/F750/F770/F960/F970（Purchase separately）
| Product model: | DC-550 Pro Camera Monitor |
| LCD screen: | 5.5 inches |
| Resolution: | 1920×1080 pixels |
| Brightness: | 1200cd/㎡ |
| Enter signal interface: | HDMI1.4 signal input |
| Output signal interface: | HDMI1.4 signal output |
| Audio: | headset socket 3.5 |
| Hardware upgrade: | SD card upgrade |
| Power interface: | DC12V-18V, 2A, Type-C interface ≥5V, 3A |
| Applicable battery: | NP-F550/F570/F750/F770/F960/F970 |
| Product size: | 16.5 x 9.1 x 2.85 cm / 6.49″ x 3.58″ x 1.12″ |
| Product weight: | 280g |
| Most support: | 4K30Hz, 3840×2160 4096×2160; 24Hz 25Hz 30Hz |
| Waveform menu | 2 Histograms: RGB and Luminance / 3 types of Parade waveforms: RGB, Y, YUV |
| Cooling Fan | Included |
