WiiM Ultra Multiroom Music Streamer | Compatible

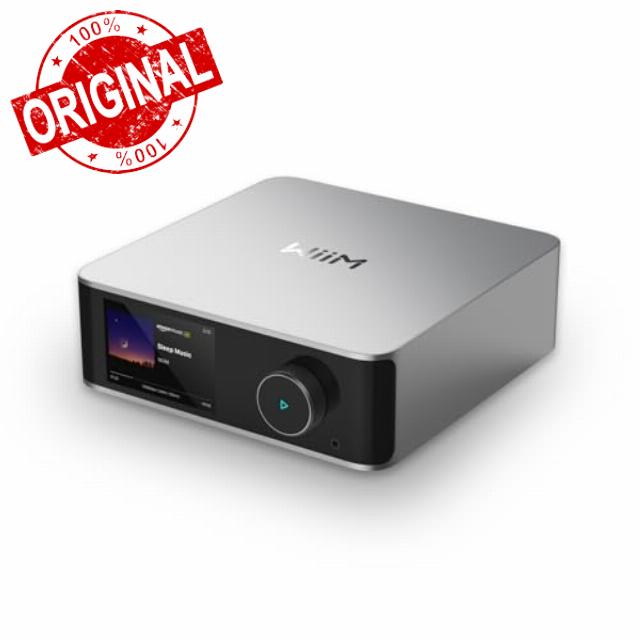

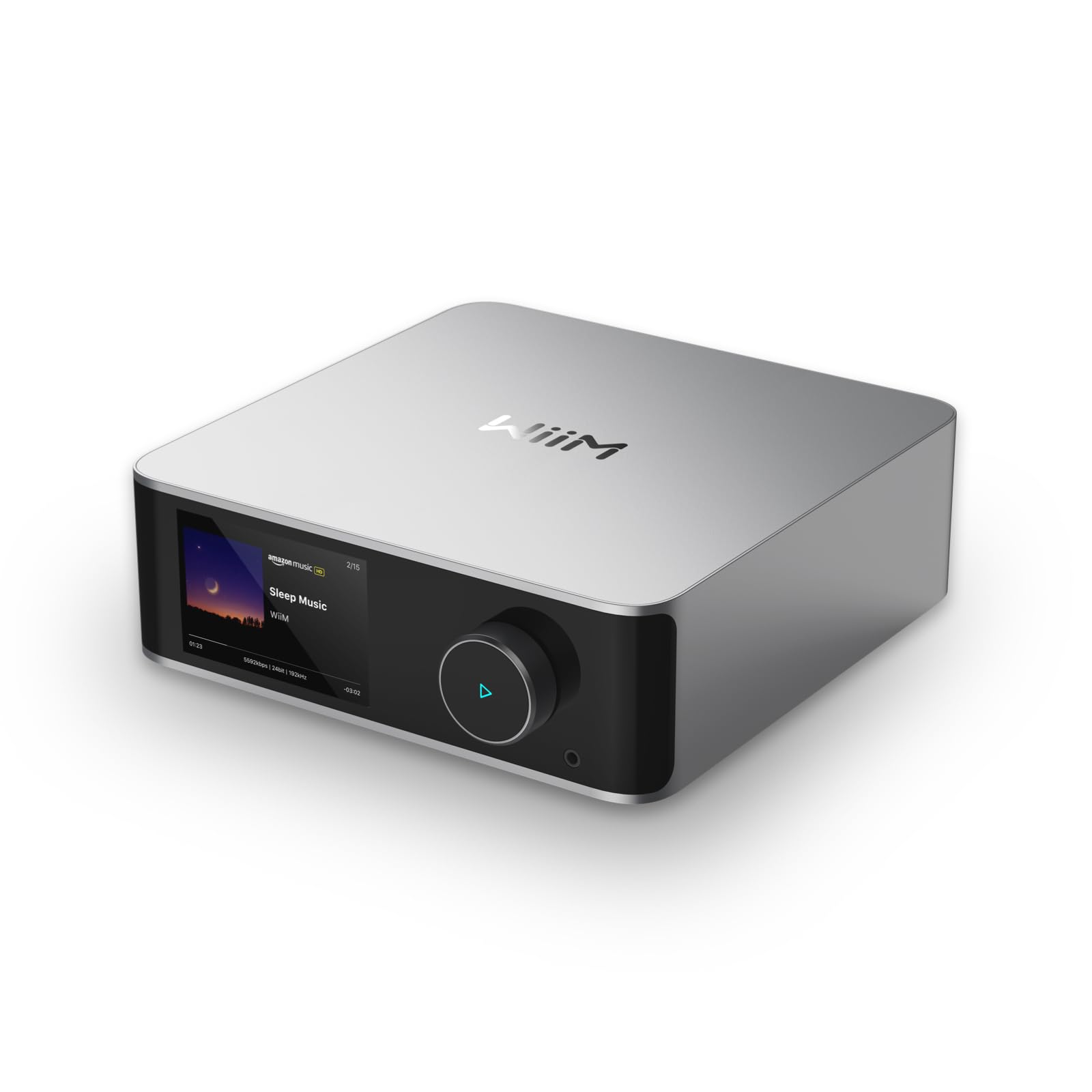

WiiM Ultra Multiroom Music Streamer | Compatible with Chromecast, Alexa | Stream Spotify, Amazon Music, Tidal & More | 3.5″ Touch Display, HDMI, Voice Control | Includes Remote | Silver

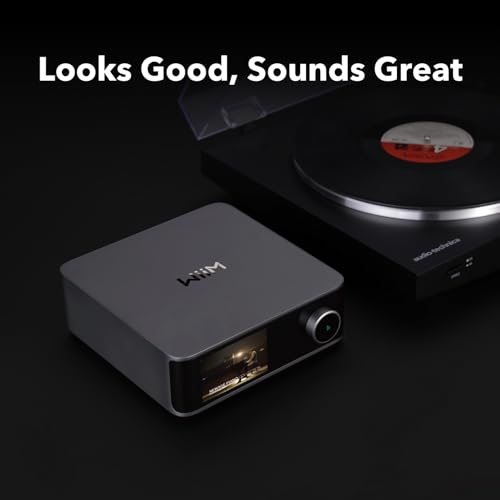

- Looks Good, Sounds Great: The WiiM Ultra redefines your audio experience with its sleek aluminum design and premium components. This all-in-one music streamer boasts a ESS ES9038 Q2M DAC, a vibrant 3.5” touchscreen, state-of-the-art Wi-Fi 6E, and Bluetooth 5.3 connectivity. Engineered for excellence, it delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121dB, making it a perfect addition to any sound system.
- Versatile Connectivity Options: The WiiM Ultra offers versatile audio integration with its wide array of connection options. It features USB, Optical, Coaxial, RCA, a dedicated headphone output; HDMI ARC, and inputs for RCA, Phono, and Optical. It seamlessly integrates with both digital and analog sources, offering unparalleled flexibility for any audio setup.
- Home Theater Magic, Made Easy: Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.

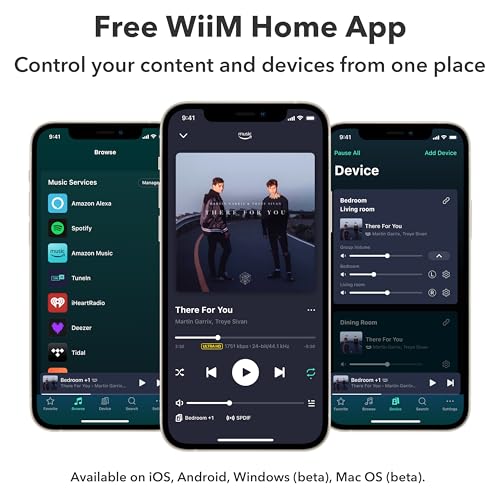

- Seamless Multiroom Audio: Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.
- Hi-Res Sound Shaped by You: Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space. NOTE: This device is incompatible with AirPlay and cannot function as an AirPlay receiver.
| SKU: | B0D41YP9CS |
| Weight: | 3.13 pounds |
| Dimensions: | 8.3 x 7.87 x 2.83 inches |
| Brand: | WiiM |
| Origin: | China |
Product Description

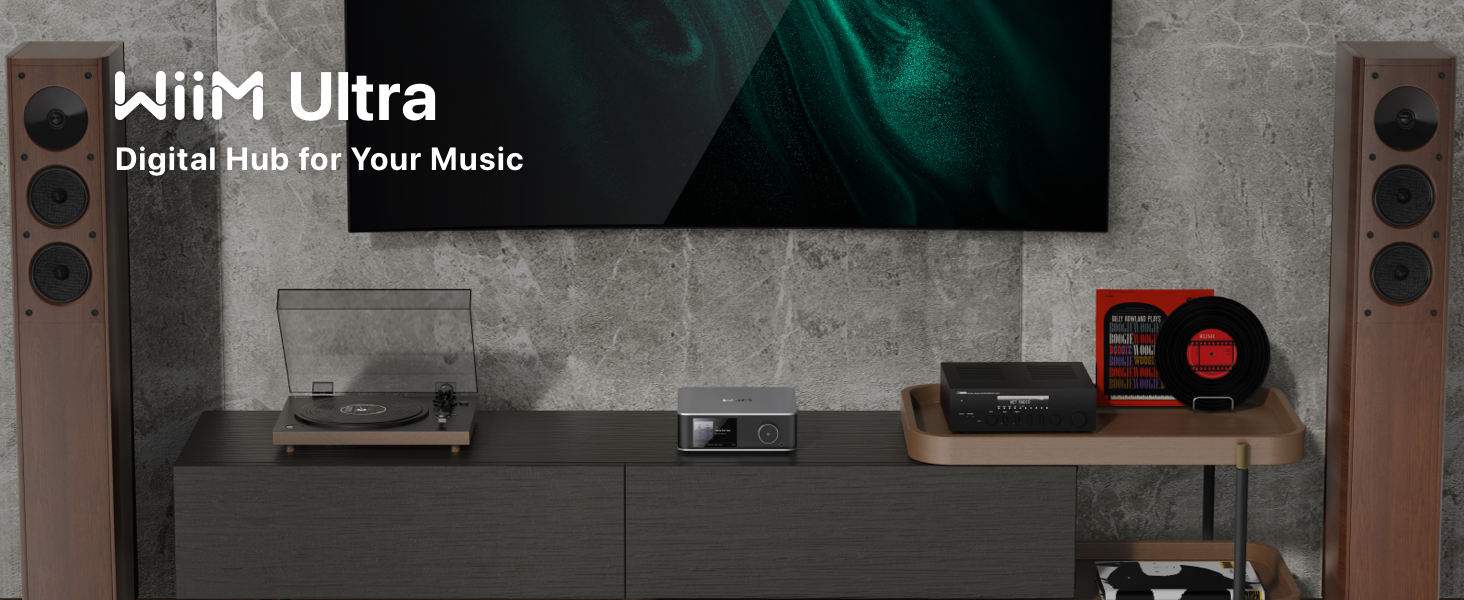

Digital Hub for Your Music
Superior Sound Quality

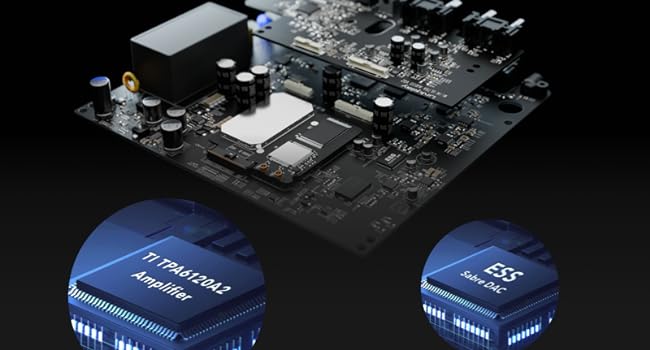

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

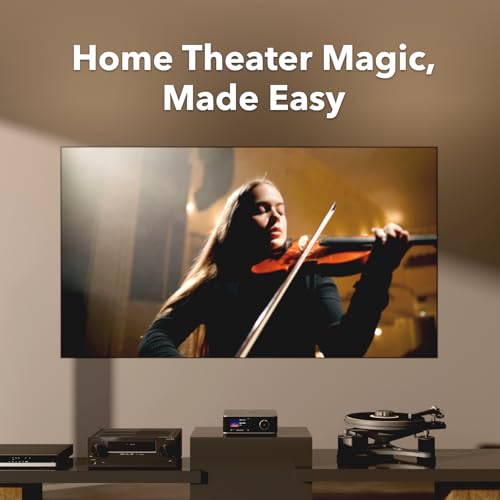

Home Theater Magic, Made Easy
Elevate your entertainment effortlessly with the WiiM Ultra's HDMI ARC and Subwoofer Out for rich stereo sound in movies, shows, and games. Connect a powered subwoofer for deeper bass, and personalize your audio using the WiiM Home App's EQ settings and bass management.
Previous page

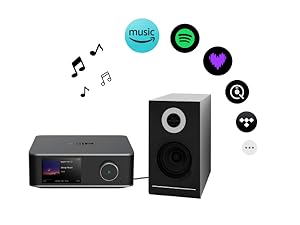

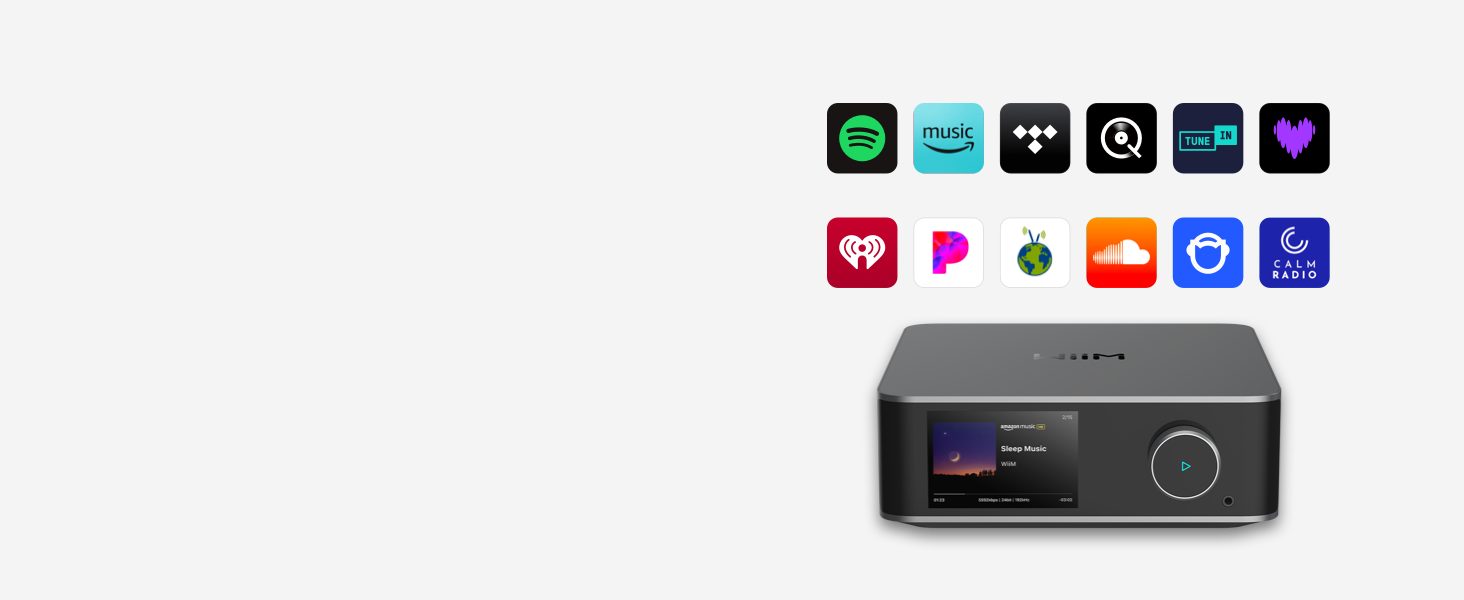

Stream Everything You Love
No more app-hopping. WiiM Home App connects you to a plethora of popular music streaming services.

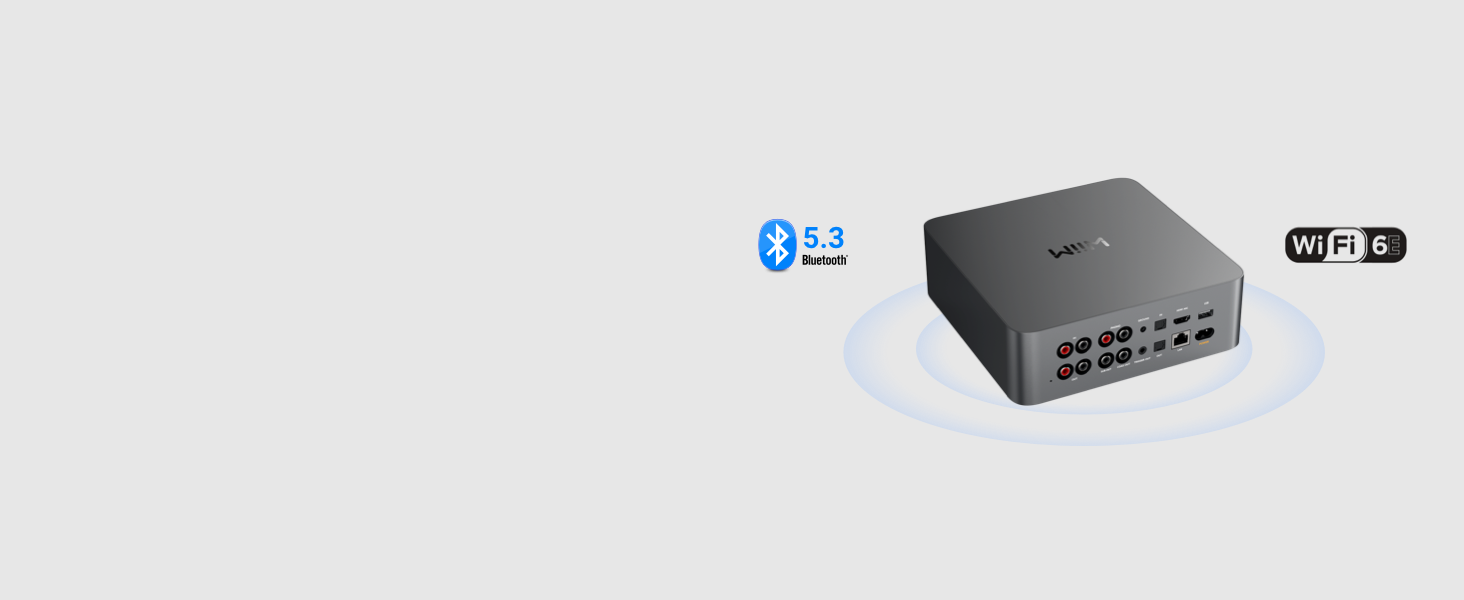

Cutting-Edge Wireless Tech
Features latest Wi-Fi 6E and BT 5.3 with dual antennas for rock solid Hi-Res audio streaming.
Sound Shaped by You
Built-in room correction measures your room's acoustics and customizes audio for your speakers.

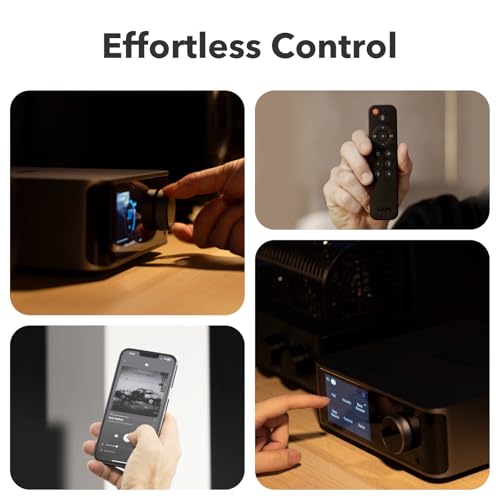

3.5″ Vibrant Touch Display
Features large album art, VU meter, instant feedback, music playback, and customizable displays.
Easy to Set Up and Use
Step 4
Configure your device and music account, and play Hi-Res music.
| Dimensions and Weight | 8.3″ x 7.87″ x 2.83″ (211 mm x 200 mm x 72 mm), 3.13 lbs (1.42 kg ) |
| Colors | Space Gray, Silver |
| Touch Display | Displays App widgets, large album pictures, playback control, playing queue.presets, EQ, audio input and output, and device settings; Guides users through the OOBE and OTA; Provides feedback when there's a change in the play mode. |
| Controls | Volume knob, play/pause, and more |
| LED | 4 Color RGBW LED indicates the device status |

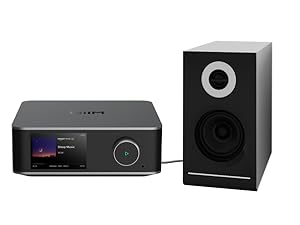

| Speaker Output | Stereo or dual mono sound |
| Home Theatre Audio Formats | Stereo PCM, Dolby Digital (DTS is not supported) |
| Audio Input | HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/192 kHz |
| Audio Output | RCA, Headphone, Coax, Optical, USB, BT, or DLNA receiver |
| Audio Format | MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG |
| EQ | 24 preset EQ settings, 10-band Graphics EQ, 10-band Parametric EQ |
| Subwoofer Output | Comprehensive bass management; Adjustable crossover frequency, level, phase, and latency. |
| Power Supply | 100-240V AC input, 50/60 Hz, 0.5A Max |
| Connectivity | Network – Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands. 10M/100 Mbps LAN; Bluetooth – BT 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote. |
| Supported Streaming Protocol | Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Squeezelite |
| External Storage | Access personal media library and use it as a media server for other WiiM and DLNA devices, Support FAT32, NTFS, and EXT4 file systems. |
Which WiiM product is right for you?
 WiiM Ultra |  WiiM Amp |  WiiM Pro Plus |  WiiM Pro |  WiiM Mini | |
| Customer Reviews | 4.4 out of 5 stars 22 | 4.5 out of 5 stars 777 | 4.6 out of 5 stars 3,920 | 4.6 out of 5 stars 3,920 | 4.5 out of 5 stars 3,432 |
| Price | $329.00 | $299.00 | $219.00 | $149.00 | $89.00 |
| Connected Device for Streaming | Amplifier or Powered Speaker | Passive Speaker | Amplifier or Powered Speaker | Amplifier or Powered Speaker | Amplifier or Powered Speaker |
| Audio Input Port | HDMI ARC, Optical, Line, Phono | HDMI ARC, Line In, Optical | Line-in, Optical | Line-in, Optical | AUX 3.5mm jack |
| Audio Output Port | RCA Optical Coax USB Headset | HP terminals / Subwoofer | Line-Out, Optical, Coax | Line-Out, Optical, Coax | AUX 3.5mm jack, Optical |
| DAC IC | ESS ES9038 Q2M | ESS 9018 K2M | AKM 4493SEQ | TI PCM 5121 | TI PCM 5121 |
| Pair with a Sub | Y | Y | – | – | – |
| USB Port (Storage/Audio Out) | Y | Y | – | – | – |
| Analog Out SNR | 121 dB | 98 dB | 121 dB | 106 dB | 106 dB |
| THD+N (A-weighted) | -116 dB (0.00015%) | -92dB (0.0025%) | -113dB (0.00023%) | -92dB (0.0025%) | -92dB (0.0025%) |
| Analog Input (ADC) | Up to 192k, 24 bit | Up to 192k, 24 bit | Up to 192k, 24 bit | Fixed 48k, 16 bit | Fixed 48k, 16 bit |
| Ethernet | Y | Y | Y | Y | – |
| Alexa Multiroom with UHD | Y | Y | Y | Y | – |
| Google Chromecast Audio | Y | Y | Y | Y | – |
