JKBMS Inverter BMS 8S-16S 24V-48V 150A Home Energy Storage BMS 1A Active Balance Built-in Bluetooth with RS485 CAN for Solar System (JK-PB1A16S15P)

• Multiple Protection:This BMS Offers overcharge,over-discharge,short circuit,and overcurrent protection. Includes reverse connection protection to prevent damage from incorrect wiring,ensuring system reliability
• Wide Application:Inverter BMS Suitable for home energy storage,communication base stations,building energy storage,and backup power. Provides high compatibility and reliability for various application environments
• Communication Protocols:JK Inverter BMS Compatible with major inverter brands,supporting CAN,RS485,RS232,and UART modes. Easily configurable via mobile app,host computer,or home storage display,ensuring seamless integration with various devices and systems
• Parallel Protection Technology:This Home Storage BMS features integrated 10A current limiting to safely expand battery capacity. Supports parallel connection of multiple battery packs,ensuring reliable and secure operation
• After-Sales Support: Download the "JK BMS" app for 24/7 assistance. We're here to help with any questions or issues, and we offer a 1-year support period

Specification：

• Brand: JKBMS
• Model: JK-PB1A16S15P

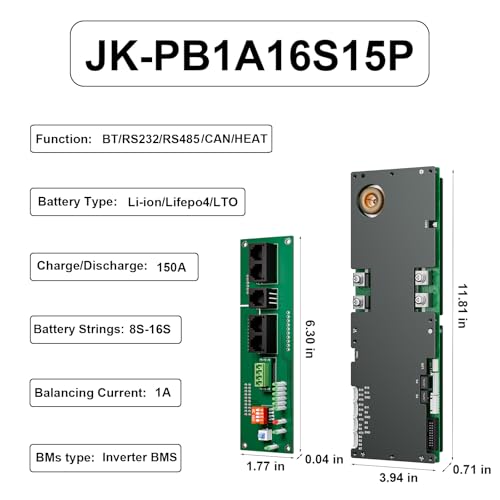

• Dimensions: 300*100*18 mm
• Compatible With: LiFePO4, Li-ion, and LTO

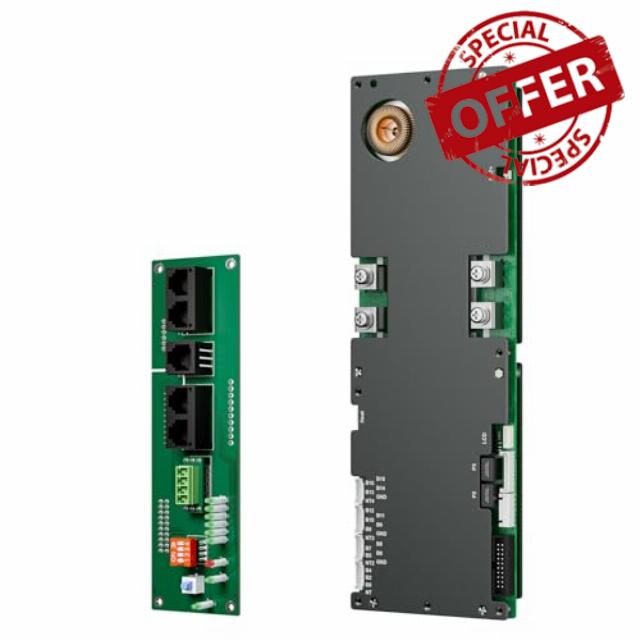

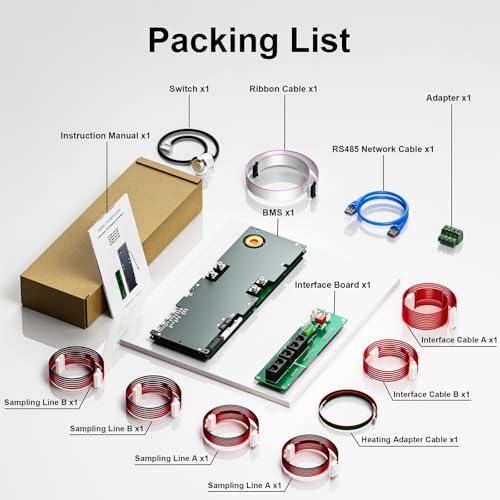

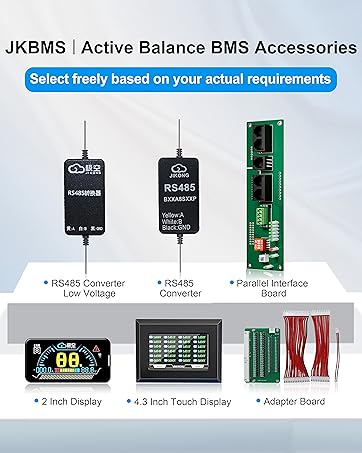

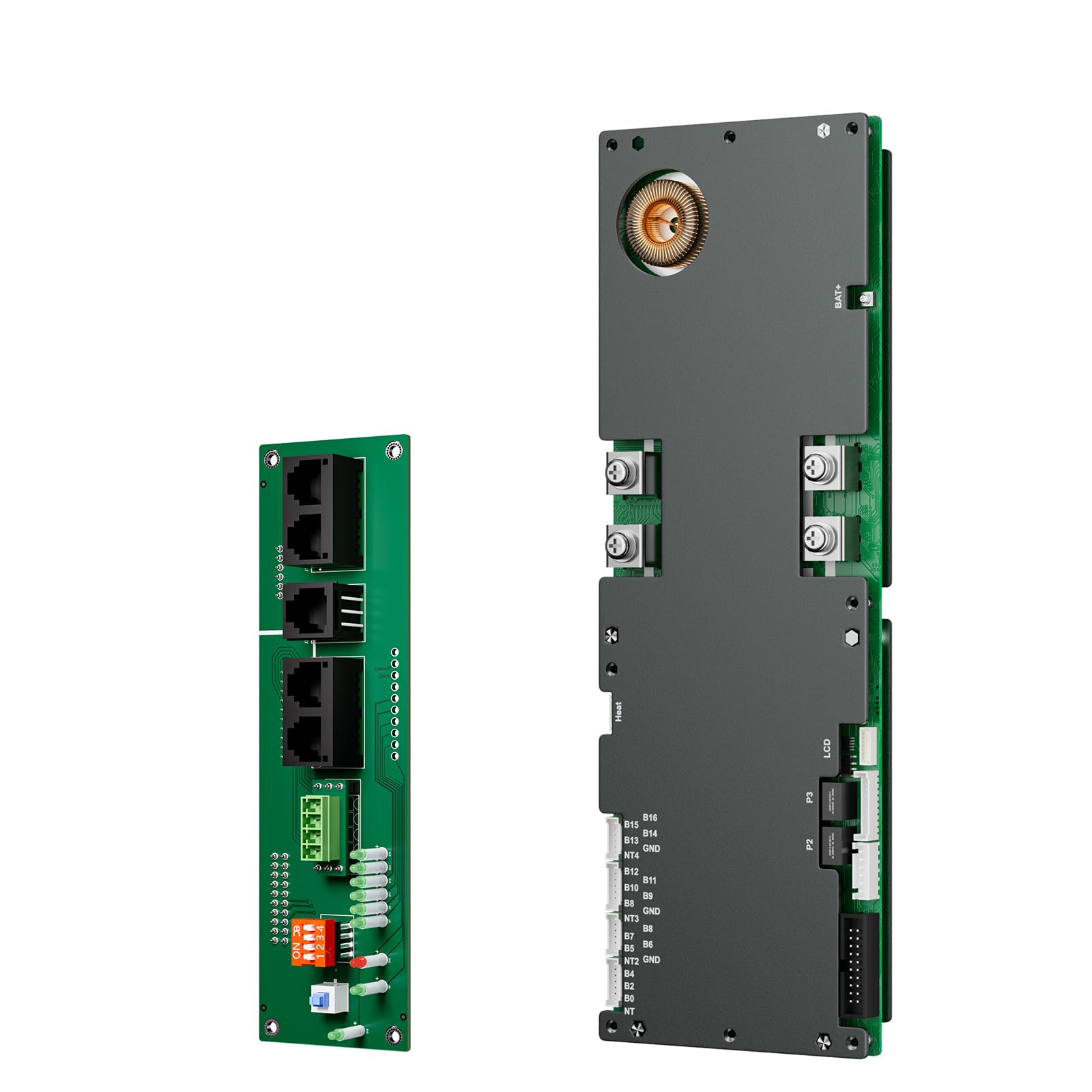

• Package Contents: Protection board, interface board, communication cables, balancing cables, activation switch, etc.

Functional Characteristics:

• Active Balancing Function
• LED Status Indicator

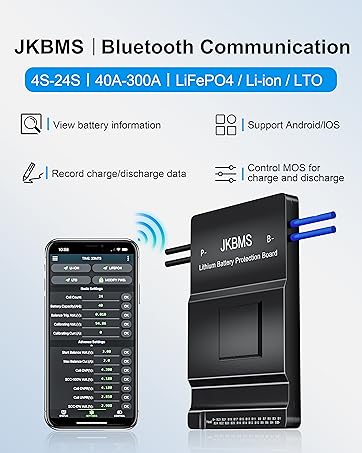

• Remote Operation via APP
• Overvoltage and Overcurrent Protection
• PC-based Operations Supported
• Information Screen Display
• RS485, RS232 and CAN Communication Support
• High Precision Voltage Acquisition
• Battery Capacity Estimation
• High Precision Current Acquisition
• Accurate Time Logging
• Isolated Power Circuit
• Short Circuit Protection
• 4-Channel Temperature Protection
• MOSFET Temperature Protection

Technical Specifications:

• Active Balance Current: 1A
• Battery Strings Supported: Li-ion: 7-16S, LiFePO4: 8-16S, LTO: 14S-16S
• Continuous Discharge/Charge Current: 150A
• Maximum DischargeCurrent(MAX2min): 300A

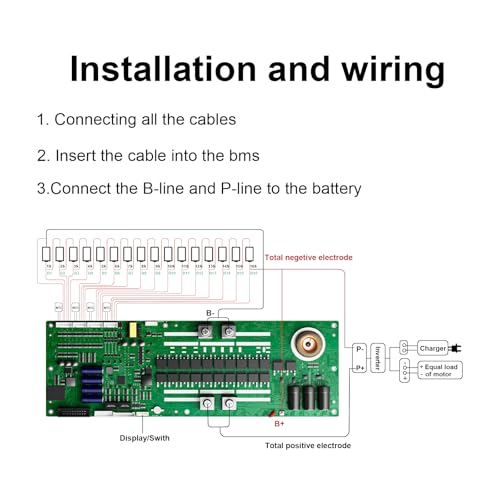

Connection Instructions:

Wiring Sequence:

Solder B- and P- terminals first.

Follow with B+ and P+ terminals.

Connect battery sampling wires in ascending voltage order.

System Activation:

Power up the system and press the button to activate.

Disconnecting:

Remove charger or load first.

Disconnect battery sampling wires in descending voltage order.

Remove B+ and P+ terminals, then B- and P- terminals.

---
