JPC-12 HF Antenna for Ham Radio, 7MHz-50MHz All Band Vertical Antenna with Slide Regulator, 40m-6m(131.23ft-19.68ft), 8 Bands, QRP Compatible, Portable for Outdoor Use

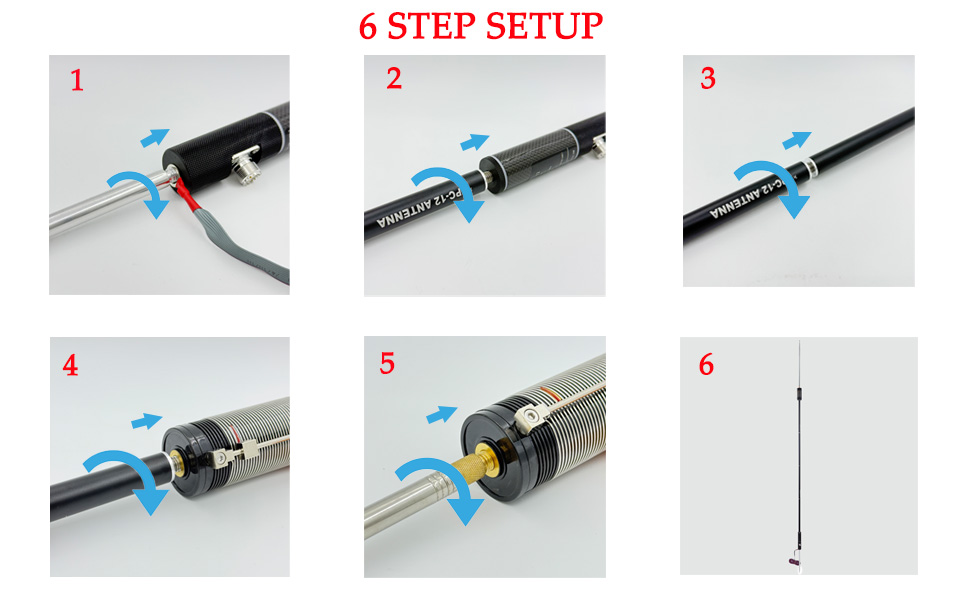

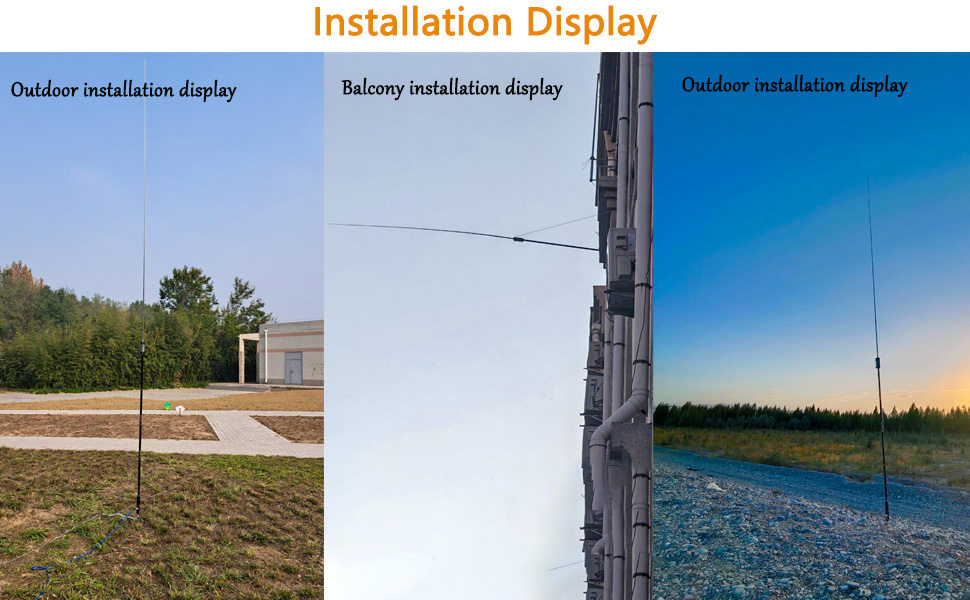

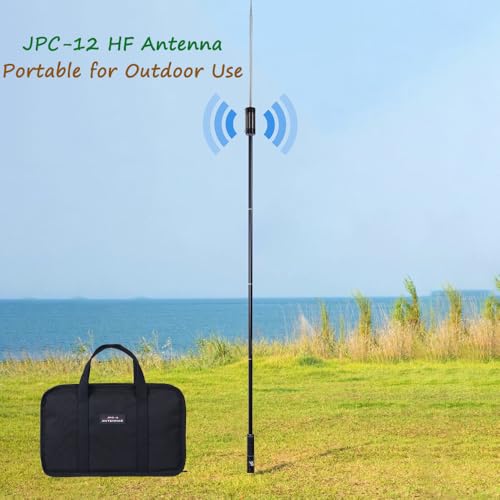

• 1：The portable HF antenna weighs approximately 3.09 pounds.The backpack length of the HF antenna is 13.58 in. The total length after installing the HF antenna is 13.45 ft.Portable high-frequency antennas can be easily installed by one person within 3 minutes. Its user-friendly split design makes it easy to carry and compact to store. Very suitable for outdoor platforms, business trips, or balcony installations.

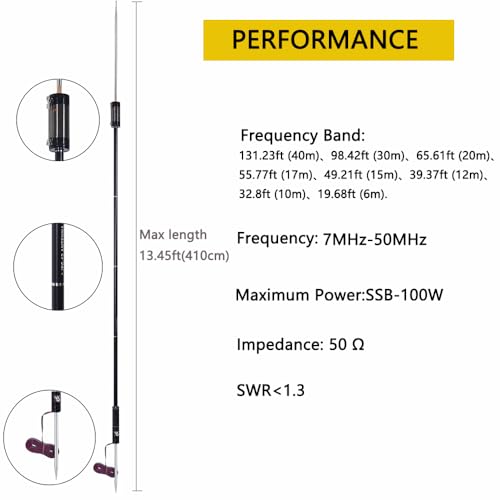

• 2: Frequency: It can operate in 8 bands of 131.23 ft（40m), 98.42 ft（30m), 65.61 ft（20m), 55.77 ft（17m), 49.21 ft（15m), 39.37 ft（12m), 32.8 ft（10m), and 19.68 ft（6m) (7MHZ-50MHz).Impedance: 50Ω.Maximum power of SSB: 100W.The SWR of the 131.23 ft（40m) band is less than 1.3, while the SWR of other bands can be adjusted to 1.1, allowing for stable low standing wave ratio (SWR).

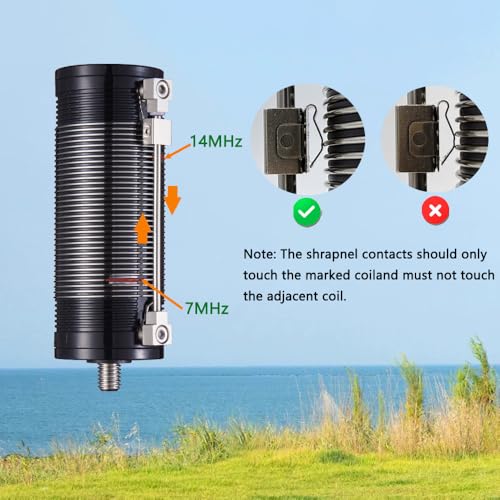

• 3. Obtain Reference Data for Specific Frequencies:【7MHz: Wrap 4 coils near the side of the aluminum tube, retract the pull rod approximately 3.93 in (10 cm), SWR: 1.1-1.3 (on the red line marked with silver).】【14MHz: Wrap 6 coils near the rod antenna side, retract the pull rod about 7.87 in (20 cm), SWR: 1.1-1.3 (on the red line marked with gold).】【21.4MHz: Use 4 sections of the aluminum tube plus 7 sections of the rod antenna, extend by 3.93 in (10 cm), SWR: 1.1-1.3.】【29.6MHz: Use only the rod antenna, fully extend it and then retract by about half a section, SWR: 1.2.】Note: Ensure the shrapnel contacts only the marked coils and avoid touching adjacent coils.

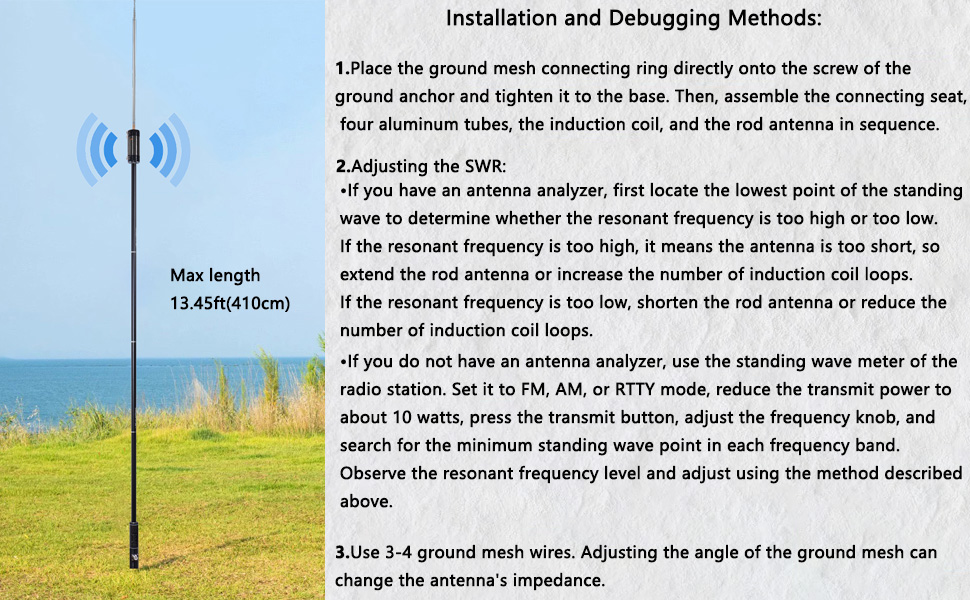

• 4: When using a dedicated grounding network, simply tear off 3-4 pieces. Adjusting the angle of the grounding grid can change the impedance of the antenna.
• 5. Performance:The JPC-12 amateur radio high-frequency antenna delivers exceptional signal reception and transmission, thanks to its low standing wave ratio (SWR) and highly efficient design. Specifically engineered for transmitting and receiving HF and VHF radio signals, it is fully compatible with all amateur radio transceivers. Its optimized design ensures enhanced signal performance without requiring an analyzer or tuner.

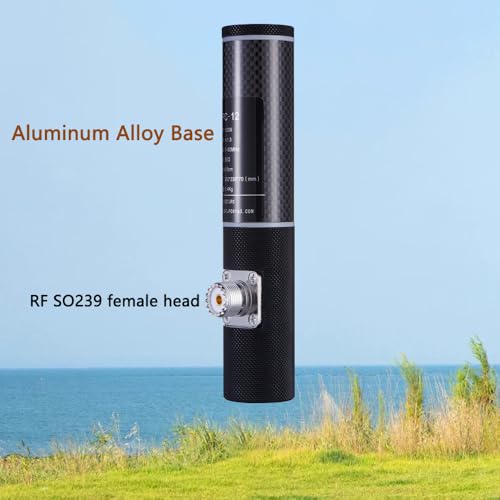

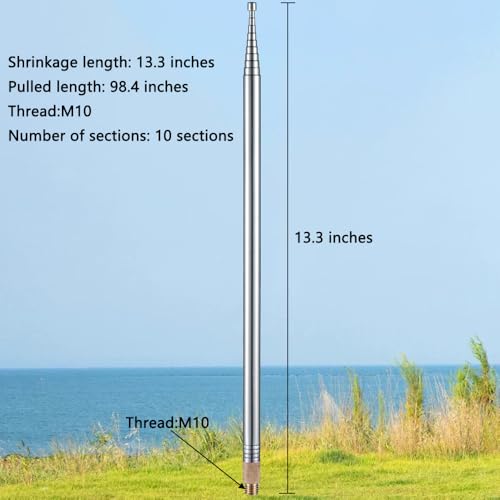

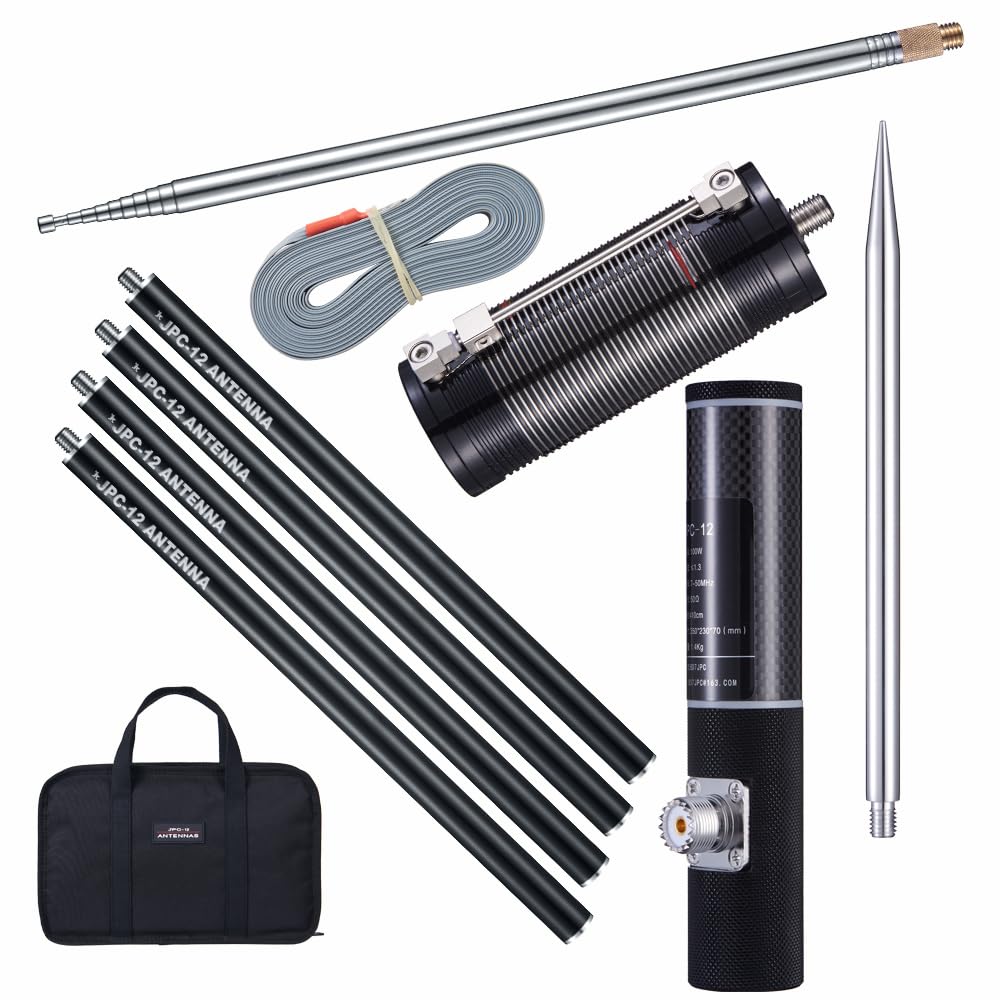

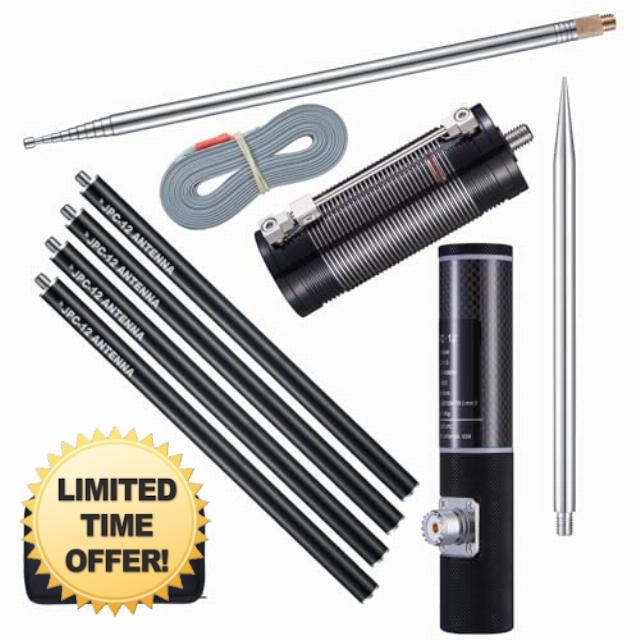

• 6：Package Contents：4* Aluminum Tubes, 1*Aluminum Alloy Base, 1*Multi-band Inductive Coil, 1*Stainless Steel Rod Antenna（Pulled length: 98.4 in) , 1*Ground Anchor,1*Ground Mesh(10 Strands).

---

Product Description

JPC-12 HF Antenna is primarily used for the following products and scenarios:

1. Amateur Radio (Ham Radio)

• Compatible Equipment: Works with all HF (High Frequency) and VHF (Very High Frequency) amateur radio transceivers.
• Use Cases: Amateur radio communication, contests, emergency communication, etc.

2. Shortwave Communication

• Compatible Equipment: Shortwave radios, shortwave transmitters, etc.
• Use Cases: International broadcasting, long-distance communication, etc.

3. Portable Communication Devices

• Compatible Equipment: Portable radio devices, field communication equipment, etc.
• Use Cases: Outdoor adventures, camping, mountaineering, and other scenarios requiring portable communication.

4. QRP (Low Power) Operations

• Compatible Equipment: Low-power (QRP) radio devices.
• Use Cases: Ideal for amateur radio enthusiasts who enjoy low-power operations.

5. Educational and Experimental Purposes

• Compatible Equipment: Radio education kits, experimental equipment, etc.
