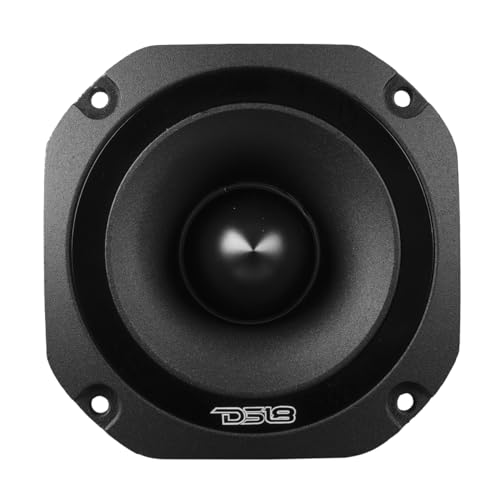

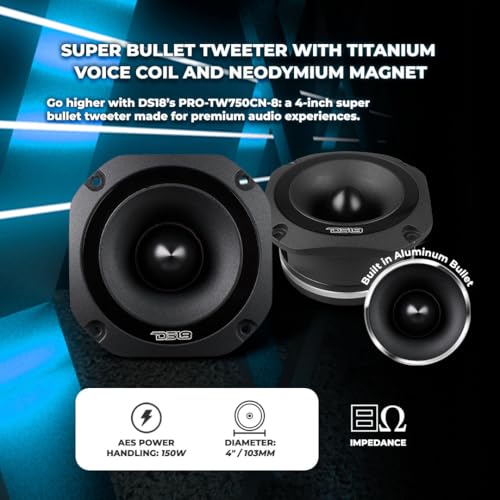

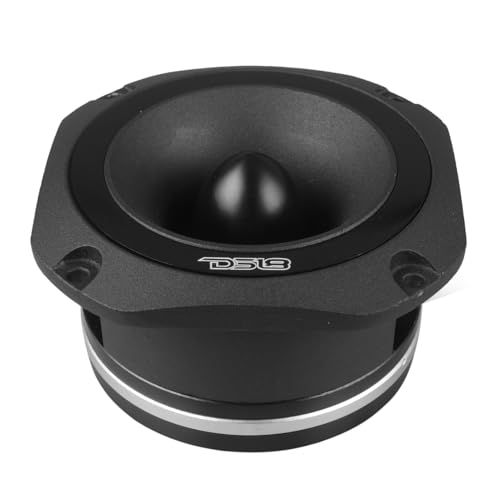

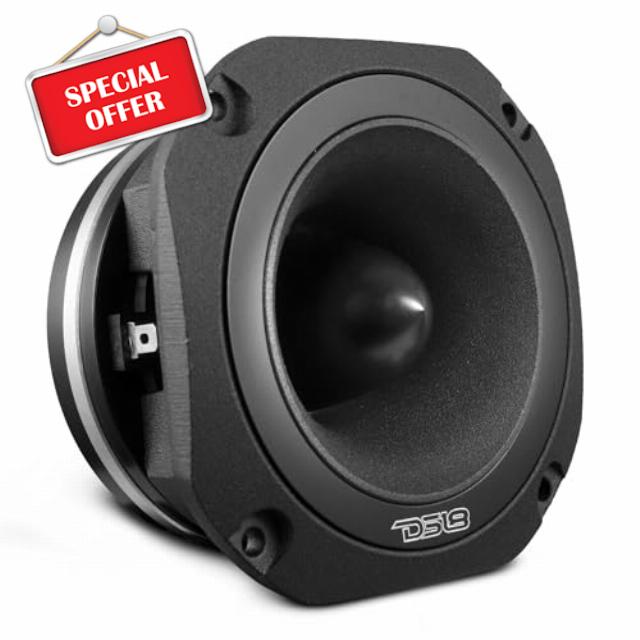

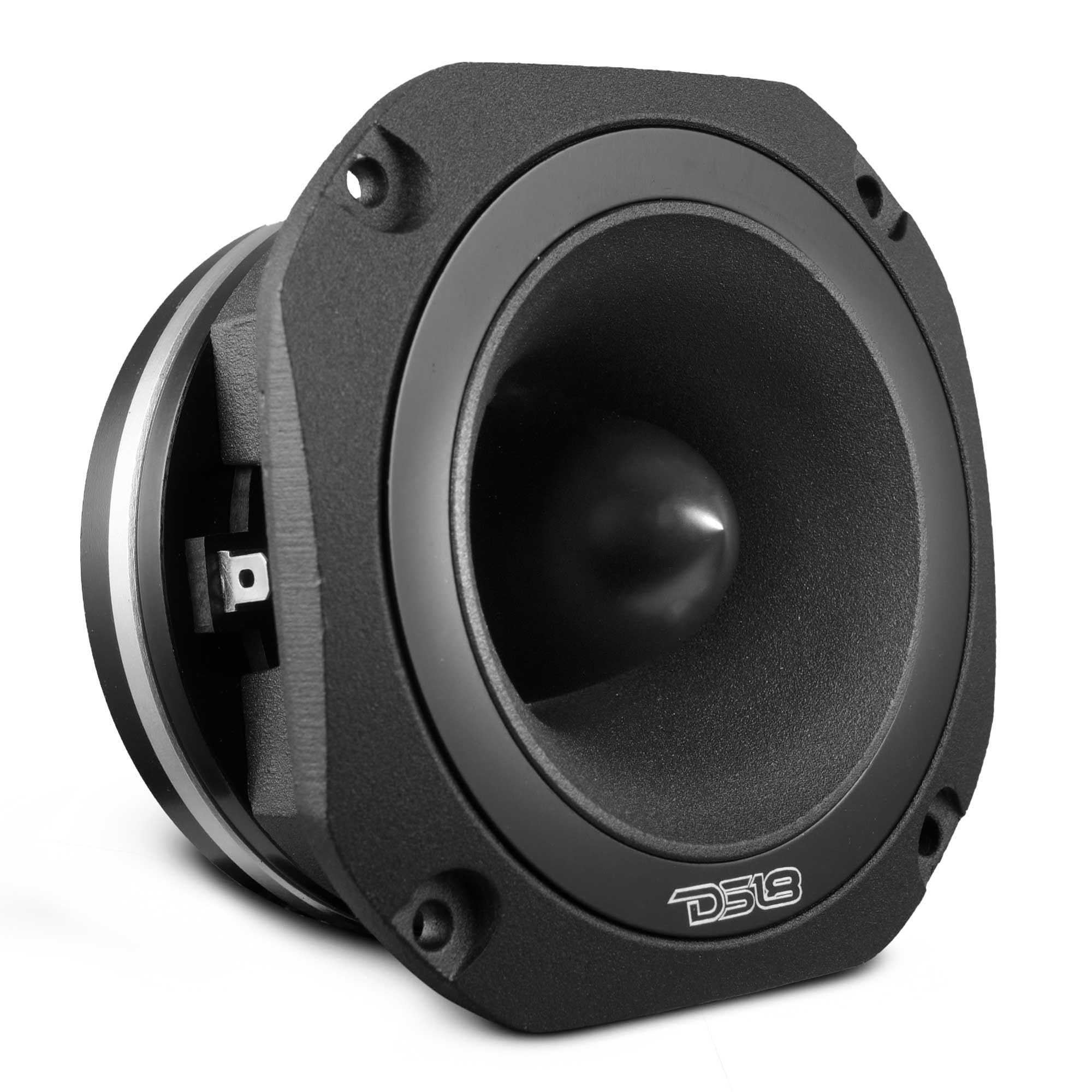

DS18 PRO-TW750CN-8 4″ Super Bullet Tweeter with 1.5″ Titanium Voice Coil, Neodymium Magnet, 440 Watts Peak Power, Single

• Unleash Precision Sound – The DS18 PRO-TW750CN-8 delivers exceptional clarity with its 4" titanium diaphragm and neodymium magnet, making it the ultimate choice for audiophiles and pro audio enthusiasts
• High Power, High Performance – Experience unparalleled audio performance with 440W peak power handling and an ultra-high sensitivity of 110 dB, ensuring your music hits harder and sounds crisper
• Durable & Sleek Design – Crafted with a CNC aluminum bullet and robust aluminum body, this black-and-aluminum finished tweeter not only sounds amazing but also adds a modern aesthetic to your setup
• Effortless Installation – Designed for convenience, the 1.8" mounting depth and 3.5" baffle cutout make integrating this tweeter into your sound system straightforward and hassle-free
• Perfect for Pro-Level Systems – Tailored for mid- to high-frequency response (900 Hz – 20 kHz) with a built-in 3.3 µF filter, the PRO-TW750CN-8 is the ideal upgrade for cars, home theaters, or professional sound setups

Specifications

SKU: PRO-TW750CN-8/BK
Nominal Diameter: 4″ (101 mm)
Nominal Impedance: 8 ohms
AES Power Handling: 160W
Program Power Handling: 220W
Peak Power Handling: 440W
Sensitivity (1W/1M): 110 dB
Frequency Response: 900 Hz – 20 kHz
Recommended High-Pass Crossover: 3 kHz
Sold As: Single

Body / Features

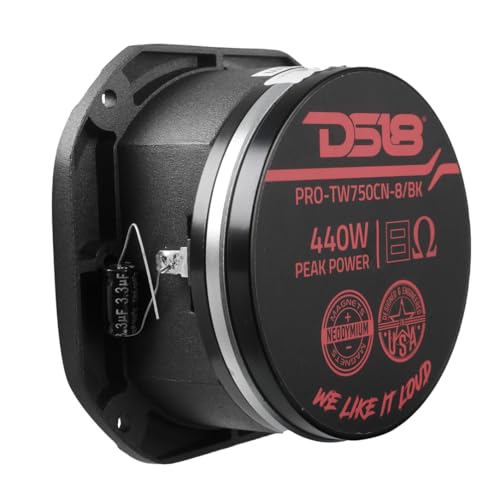

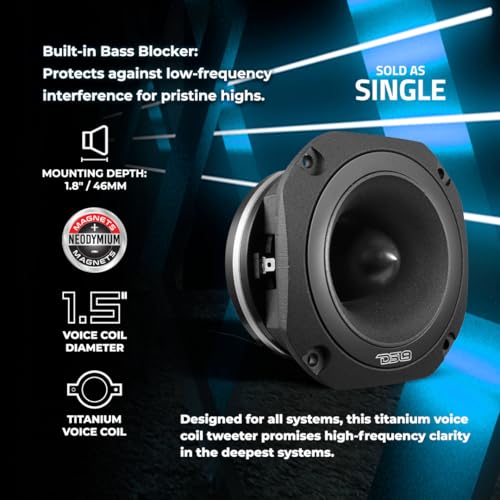

Filter (Bass Blocker): 3.3 µF / 100V
Body Material: Aluminum
Body Color / Finish: Black / Aluminum
Faceplate Color / Finish: Black / Aluminum
Bullet Material: CNC Aluminum

Motor

Voice Coil Diameter: 1.5″ (38 mm)
Voice Coil Former Material: KSV
Winding Material: CCAW
Diaphragm Material: Titanium

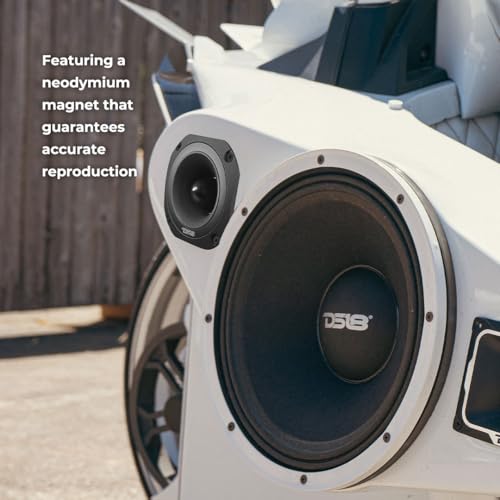

Magnet Material: Neodymium
Magnet Size: 3.54″ x 0.19″ (90 x 5 mm)
Magnet Weight: 5.82 oz

Measurements

Overall Diameter: 4″ (103 mm)
Overall Depth: 2.28″ (58 mm)
Front Mount Baffle Cutout: 3.5″ (90 mm)
Mounting Depth: 1.8″ (46 mm)
