DS18 PRO-TW850CN-4/SL 4″ High Compression Hybrid

DS18 PRO-TW850CN-4/SL 4″ High Compression Hybrid Driver/Tweeter with Neodymium Magnet 1.5″ PEI Vc 250 Watts 4-Ohm, Pro Audio, High Frequency

Specifications

SKU: PRO-TW850CN-4/BK
Nominal Diameter: 4″ (101mm)
Impedance: 4 Ohms
Power Handling:
AES: 170W
Program: 250W
Peak: 500W
Sensitivity (1W/1m): 111dB
Frequency Response: 700Hz – 20KHz
Recommended Hi-Pass Crossover: 1KHz
Sold As: Single

Body & Features

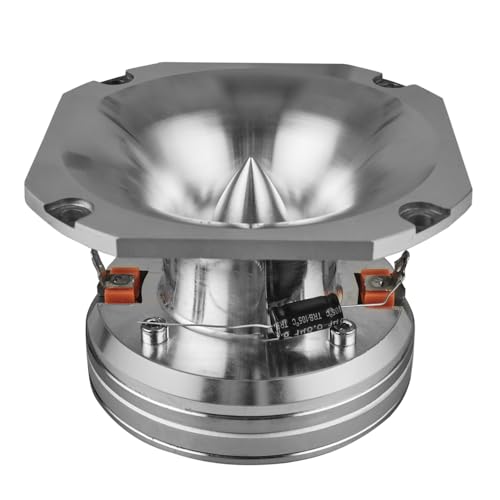

Bass Blocker Filter: 4.7µF / 100V
Body Material: Aluminum
Bullet Material: CNC Aluminum
Available Colors: Black, Silver

Motor
Voice Coil Diameter: 1.5″ (38mm)
Voice Coil Former: KSV
Winding Material: CCAR
Diaphragm Material: PEI
Magnet Type: Neodymium
Magnet Size: 3.42″ x 0.25″ (87 x 6mm)
Magnet Weight: 7.4 oz

Dimensions
Overall Diameter: 4″ (102mm)
Overall Depth: 2.8″ (71.5mm)
Front Mount Baffle Cutout: 3.5″ (90mm)
Mounting Depth: 2.6″ (66.5mm)
